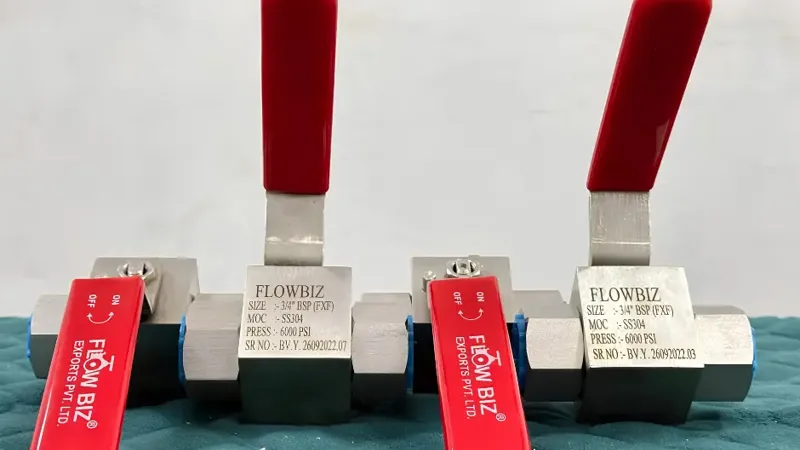

6000 PSI High Pressure Square Body Ball Valve – Precision Flow Control for Hydraulic & Ultra-High Pressure Utilities
Handling high-pressure gas, hydraulic fluids, chemical injection streams, and testing skids demands robust valve construction that resists body deformation, thread distortion, and seat blowouts. The 6000 PSI High Pressure Square Body Ball Valve manufactured by FlowBiz Exports is engineered to provide bi-directional shut-off under severe operating pressure differentials.
Machined from high-tensile solid barstock SS304 or SS316 stainless steel, this square body instrumentation ball valve features a heavy-duty blow-out proof stem, Delrin / PEEK high-pressure seats, and precision female BSP/NPT threaded connections. The compact square profile offers structural stability and ease of mounting on instrument panels, manifolds, and hydraulic power units (HPUs).
Technical Specifications & Features
The 6000 PSI High Pressure Square Body Ball Valve complies with international instrumentation standards:
- Product Name: 6000 PSI High Pressure Square Body Ball Valve
- Design Standards: MSS SP-99 / ASME B31.3 / BS 5351
- Size Range: 1/4" to 1" (Featured: 3/4" BSP Female x Female)
- Pressure Rating: 6000 PSI (414 Bar) WOG
- Body Material: Stainless Steel ASTM A276 / A479 SS304 or SS316 Barstock
- Seat / Packing Material: Delrin (POM) / PEEK seats with Viton / PTFE stem seals for zero-leakage sealing at high pressures
- Stem Design: Internal blow-out proof stem with live-loaded packing
- Operation: Quarter-turn red vinyl-coated stainless steel hand lever with direction arrow (ON/OFF indicator)
- End Connections: Screwed Female x Female (FXF) BSP / NPT / NPTF / Male Threaded Options
Technical Overview Table
Technical Parameter | Specification Details |
Product Name | 6000 PSI High Pressure Square Body Ball Valve |
Manufacturer | FlowBiz Exports Pvt. Ltd. |
Size Featured | 3/4" BSP (FXF) |
Working Pressure | 6000 PSI (414 Bar) |
Body Material | Solid SS304 / SS316 Stainless Steel Barstock |
Seat Material | Delrin / PEEK High-Density Polymer |
Handle / Operator | Red PVC Sleeve Stainless Steel Lever |
Traceability | Laser-etched Serial Number and MOC Details |
Key Applications Across Industrial Utilities
The 6000 PSI High Pressure Square Body Ball Valve provides leak-tight isolation in extreme pressure systems:
- Hydraulic Power Units (HPUs) & Rigging: Controls hydraulic oil flow, actuation cylinders, and press circuits.
- Oil & Gas Chemical Injection Skids: Regulates high-pressure methanol, glycol, and corrosion inhibitor injection lines.
- High-Pressure Gas Distribution: Manages compressed natural gas (CNG), nitrogen, hydrogen, and oxygen sampling manifolds.
- Test Benches & Calibration Skids: Serves as dependable isolation valves on hydrostatic testing equipment and pressure calibration panels.
Why Choose FlowBiz Exports Pvt. Ltd.?
FlowBiz Exports Pvt. Ltd. is a recognized leader in high-pressure instrumentation valves in India:
- Solid Barstock Construction: Precision CNC-machined square body provides superior wall thickness and structural integrity under pressure surges.
- Low Operating Torque: Highly polished stainless steel ball and low-friction Delrin/PEEK seat rings ensure smooth quarter-turn operation even at 6000 PSI.
- Traceability & Laser Marking: Each valve is laser-marked with size, MOC, pressure rating, and individual serial numbers for full quality assurance.
- Fugitive Emission Prevention: Live-loaded stem packing compensates for pressure spikes and thermal fluctuations.
Reliable Supply Chain Across India & Abroad
FlowBiz serves as a trusted high-pressure valve manufacturer with an expansive supply network:
- Gujarat: Key hubs including Ahmedabad (Odhav, Vatva, Naroda, Sanand), Vapi, Bharuch, Dahej, Gandhidham, and Surat (Hazira, Sachin).
- Maharashtra: Major industrial centers such as Mumbai, Pune, Nashik, Nagpur, and Aurangabad.
- International: Exporting specialized valve solutions across Africa.
