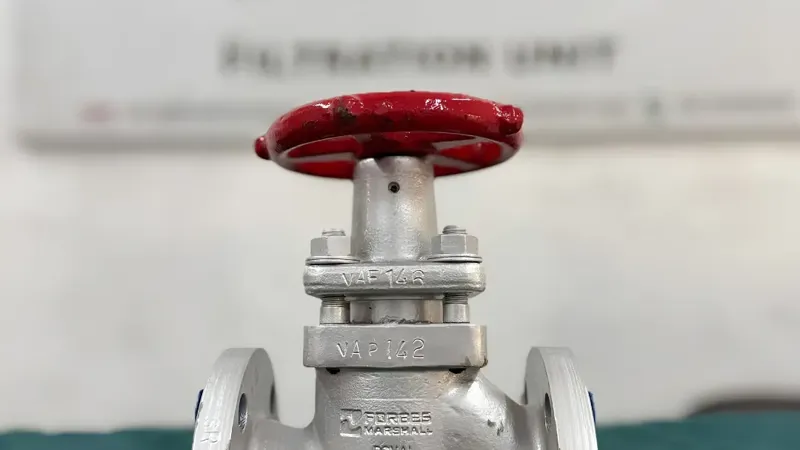

DN40 Forbes Marshall WCB Globe Valve Class 150 Flanged End – High-Precision Steam Throttling & Utility Control

Precise flow regulation, steam throttling, and zero-leakage shut-off in thermal utilities, steam distribution loops, and chemical process lines require high-integrity valve engineering. The DN40 (1.5 Inch) Forbes Marshall WCB Globe Valve Class 150 Flanged End supplied by FlowBiz Exports is engineered for continuous throttling service and long-term seat-tight isolation under demanding steam and pressure conditions.

Manufactured with a robust cast carbon steel (ASTM A216 Gr. WCB) body and precision-machined internal trim, this Forbes Marshall DN40 globe valve features an ergonomic handwheel operator, a bolted bonnet structure, and ASME Class 150 raised-face end flanges. The valve is built to withstand fluid erosion, steam wire-drawing, and severe thermal cycling, making it a reliable benchmark component for boiler feed systems, process heating lines, and industrial steam headers.

Technical Specifications & Features

The DN40 Forbes Marshall WCB Globe Valve Class 150 Flanged End complies with international manufacturing and design standards:

• Product Name: DN40 Forbes Marshall WCB Globe Valve Class 150 Flanged End
• Brand / Series: Forbes Marshall (PSVAL Series)
• Design Standards: BS 1873 / API 623 / ASME B16.34
• Nominal Size: DN40 / 1.5 Inch (40mm)
• Pressure Rating: ANSI Class 150# Flanged Ends (Raised Face)
• Body Material: Cast Carbon Steel ASTM A216 Gr. WCB
• Bonnet Construction: Bolted Bonnet with high-tensile studs and spiral wound gasket
• Trim Material: 13% Chromium Steel / Stellite Hardfaced Seats (API Trim 8 / Trim 5)
• Operation: Heavy-duty red epoxy-coated handwheel for smooth throttling control
• End Connections: Flanged Raised Face (RF) per ASME B16.5
• Testing Standards: API 598 / BS EN 12266-1

Technical Overview Table

Key Applications Across Industrial Utilities

The DN40 Forbes Marshall WCB Globe Valve Class 150 Flanged End delivers dependable performance across high-temperature process networks:

• Steam & Condensate Networks: Regulates main steam headers, boiler feed water lines, and condensate recovery stations.
• Chemical & Petrochemical Utilities: Controls heat transfer oils, non-corrosive hydrocarbons, and plant utility headers.
• Textile & Process Drying Utilities: Manages steam throttling to dye vessels, drying cylinders, and autoclaves.
• Power & Water Infrastructure: Serves as a reliable throttling valve in high-pressure pumps and cooling lines.

Why Choose Forbes Marshall Valves from FlowBiz Exports Pvt. Ltd.?

FlowBiz Exports Pvt. Ltd. supplies genuine industrial valve solutions across domestic and global markets:

• Trusted Forbes Marshall Quality: Authentic engineering standards ensure minimal maintenance and long service life.
• Accurate Throttling Profile: Precision plug disc design provides smooth linear flow control without fluid cavitation or chatter.
• Zero Body-Bonnet Leakage: Heavy-duty bolted bonnet design prevents gasket leaks during thermal pressure surges.
• Fugitive Emissions Control: Deep gland packing chamber maintains stem sealing and protects against ambient leaks.

Reliable Supply Chain Across India & Abroad

FlowBiz serves as a trusted industrial supplier with an extensive distribution network:

• Gujarat: Key hubs including Ahmedabad (Odhav, Vatva, Naroda, Sanand), Vapi, Bharuch, Dahej, Gandhidham, and Surat (Hazira, Sachin).
• Maharashtra: Major industrial centers such as Mumbai, Pune, Nashik, Nagpur, and Aurangabad.
• International: Exporting specialized valve and piping solutions across Africa.
