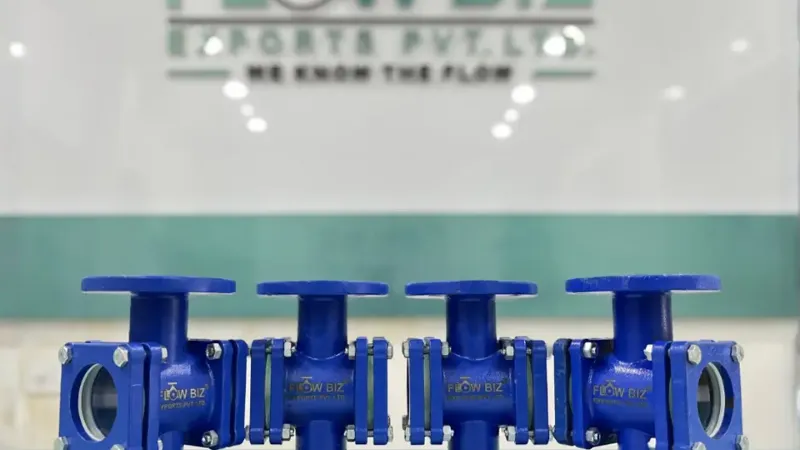

Mastering Condensate Monitoring: Why FlowBiz Double Window Sight Glasses Are Essential for Industrial Pipelines
In modern industrial processing, efficient thermal energy management is directly linked to operational profitability. Steam loops and condensate return systems form the backbone of heat transfer across chemical processing units, pharmaceutical plants, textile manufacturing, and petroleum refineries. However, maintaining peak energy efficiency while avoiding live steam losses requires constant, dependable visual monitoring.
The FlowBiz Double Window Sight Glass serves as a vital inline monitoring device engineered specifically for these rigorous processing environments. Designed to deliver high structural safety and crystal-clear visibility, these visual flow indicators allow engineers to monitor condensate movement in real-time, diagnose steam trap performance instantly, and safeguard plant productivity.
What is a Double Window Sight Glass?
A Double Window Sight Glass (also known as a dual-port visual flow indicator) is a heavy-duty inline pipeline fitting built with two opposing glass viewing ports. Unlike conventional single-window indicators, the dual-window layout allows ambient or background light to pass straight through the internal chamber. This back-lit design significantly enhances visibility, making it easy for plant technicians to inspect liquid clarity, observe flow velocity, spot entrained gas, and differentiate between liquid condensate and live steam.
When installed in high-demand condensate return lines—where pressure variations, thermal cycling, and potential water hammer are everyday realities—a FlowBiz Double Window Sight Glass acts as an indispensable diagnostic tool.
Key Features & Operational Advantages of FlowBiz Sight Glasses
1. Dual-Window Backlight System for High Visibility
By aligning two heavy-duty glass ports on opposite sides of the metallic valve housing, light penetrates straight through the fluid channel. This eliminates internal shadow zones, giving operators an unobstructed view of:
- Live steam blow-through downstream of steam traps.
- Condensate backing up within process piping.
- Scale build-up, rust particulates, or fluid discoloration.
2. High-Durability Borosilicate Glass
Every FlowBiz Double Window Sight Glass features toughened, heat-treated borosilicate glass windows. These discs are engineered to resist aggressive thermal shocks, caustic boiler additives, and continuous steam pressure without clouding, etching, or losing optical transparency.
3. Rugged Body Construction & Bubble-Tight Sealing
Manufactured from high-grade materials including Cast Carbon Steel (ASTM A216 Gr. WCB) and Stainless Steel (SS304 / SS316 / CF8 / CF8M), FlowBiz sight bodies absorb mechanical line stress and thermal shock. Engineered PTFE or high-purity graphite gaskets maintain an absolute, leak-free boundary seal even under demanding operational cycling.
4. Custom Internal Flow Indicators
For low-velocity condensate lines or vertical down-flow configurations, FlowBiz offers optional internal drip lips, flapper mechanisms, or rotating wheels to make subtle fluid movement instantly recognizable from a distance.
Why FlowBiz Sight Glasses Are Critical for Steam Trap Performance
Steam traps are prone to two costly operational failure modes:
- Failing Open: Live steam passes continuously into the condensate header, resulting in excessive fuel waste and higher energy utility bills.
- Failing Closed: Condensate backs up directly into heat exchangers, triggering destructive water hammer, system corrosion, and severe heat transfer drop-offs.
Positioning a FlowBiz Double Window Sight Glass immediately downstream of a steam trap gives field personnel immediate visual verification. Operators can quickly distinguish normal flash steam from live steam leakage, enabling proactive maintenance before energy losses escalate.
Technical Specifications Matrix
Technical Parameter | FlowBiz Standard Specification |
Nominal Size Range | 15 mm to 200 mm (1/2" NB to 8" NB) |
Pressure Ratings | Class 150#, Class 300#, PN16, PN40 |
End Connections | Flanged (ANSI B16.5 / BS 10 / DIN), Screwed (BSP/NPT), Socket Weld |
Body Metallurgy (MOC) | Cast Steel (A216 WCB), Stainless Steel (CF8 / CF8M / SS304 / SS316) |
Window Glass | High-Grade Toughened / Annealed Borosilicate Glass |
Gasket Material | Virgin PTFE, Grafoil, Compressed Non-Asbestos (CNAF) |
Max Temperature Rating | Up to 280°C (subject to selected glass and gasket configuration) |
Reliable Supply Chain Across India & Abroad
FlowBiz serves as a trusted Forged Steel Ball Valve and Industrial Sight Glass manufacturer with a massive distribution network. We provide rapid delivery and local support in:
- Gujarat: Key industrial hubs including Ahmedabad (Odhav, Vatva, Naroda, Sanand), Vapi, Bharuch, Dahej, Gandhidham, and Surat (Hazira, Sachin).
- Maharashtra: Major industrial centers such as Mumbai, Pune, Nashik, Nagpur, and Aurangabad.
- International: Proudly exporting high-pressure valve solutions and fluid flow indicators to clients across Africa.
Partner with FlowBiz Export Pvt. Ltd.
At FlowBiz Exports Pvt. Ltd., we combine decades of flow-control expertise with strict quality assurance standards. Every sight glass unit undergoes rigorous hydrostatic and seat-integrity testing prior to shipment to ensure zero-leak performance in the field.
Whether upgrading existing condensate systems or specifying flow components for a greenfield industrial project, FlowBiz delivers durable, precision-engineered solutions tailored to your operational needs.
Request a Technical Quote Today
Optimize your steam trap monitoring and protect your plant from thermal energy loss.
- Brand: FlowBiz Export Pvt. Ltd.
- Website: www.flowbizexports.com
- Email: sales@flowbizexports.com
- Get in Touch: Contact our technical sales team today for customized quotations, CAD drawings, and product catalogs!
