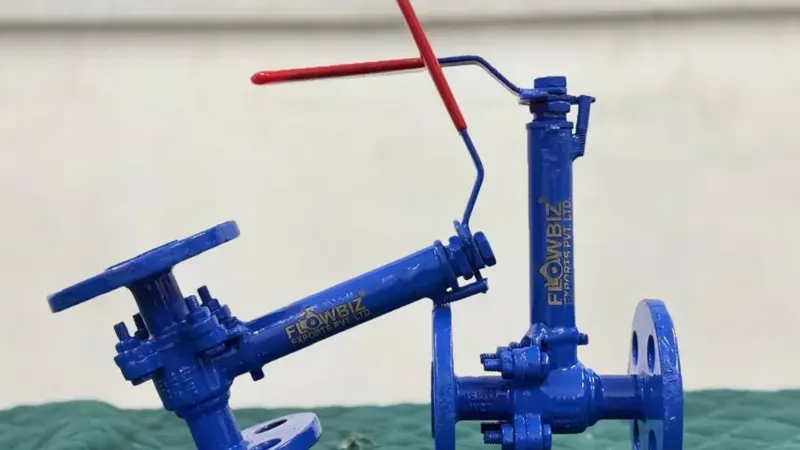

Mastering High-Temperature Steam Control: FlowBiz Extended Stem 2-Piece Ball Valves

Managing high-pressure steam, thermal fluids, and cryogenic media in industrial processing lines poses significant engineering challenges. Standard valve designs often struggle when installed on heavily insulated pipelines—operating levers become hard to access, thermal energy dissipates into the stem assembly, and packing seals degrade rapidly due to extreme heat exposure.

The FlowBiz Extended Stem 2-Piece Ball Valve is engineered specifically to overcome these operational bottlenecks. Featuring an elongated bonnet assembly, this valve elevates the stem packing, lever handle, and actuator mounting pad well above pipe insulation. This guarantees safe manual operation, protects critical packing materials from direct heat, and ensures bubble-tight shut-off across severe-service steam applications.

Why Choose an Extended Stem Design for Steam Lines?

In high-temperature steam lines, thermal insulation (lagging) is wrapped around pipes to minimize radiation heat losses and safeguard personnel. However, standard short-stem ball valves present distinct operational risks under these conditions:

1. Accessibility Issues: Thick thermal insulation covers the valve stem and handle, making manual operation or emergency shut-off nearly impossible.
2. Thermal Degradation of Stem Packing: Excessive ambient heat trapped under insulation rapidly degrades standard PTFE or graphite packing rings, leading to premature stem leaks.
3. Personnel Safety Risks: Operators risk thermal burns when reaching through or around uninsulated valve sections to turn levers.

The Extended Stem Advantage

By extending the neck length of the valve body, FlowBiz Extended Stem Ball Valves deliver three key performance benefits:

• Insulation Clearance: The elongated neck extends beyond thick pipe lagging (50 mm to 150 mm+ stem extension options), leaving the lever and gland packing fully accessible.
• Thermal Dissipation: The extended column creates a thermal gradient, allowing the stem packing area to operate at significantly lower temperatures than the internal fluid stream.
• Ease of Actuation: The top mounting ISO pad remains clear for seamless integration with pneumatic or electric actuators without interference from pipe insulation.

Technical Features of FlowBiz 2-Piece Extended Stem Ball Valves

1. Robust 2-Piece Split Body Design

Constructed with a two-piece split body configuration, these valves offer high structural stability, superior grain structure, and easy field maintenance. Flanged connections ensure rigid pipe mounting capable of withstanding heavy thermal expansion stresses.

2. High-Grade Materials of Construction (MOC)

To endure steam hammer, thermal cycling, and aggressive chemical condensate, FlowBiz manufactures these valves in premium metallurgy:

• Body: Cast Carbon Steel (ASTM A216 Gr. WCB) or Stainless Steel (ASTM A351 Gr. CF8 / CF8M).
• Ball & Stem: High-polish Stainless Steel (SS304 / SS316 / 17-4PH) for low torque and erosion resistance.

3. Advanced High-Temperature Sealing

Equipped with reinforced PTFE (RPTFE), Carbon-filled PTFE, or pure Graphite seating systems, FlowBiz extended stem valves maintain bubble-tight shut-off at operating temperatures exceeding 250°C (with options up to 400°C for special metallurgically seated variants).

4. Anti-Blowout Stem & Anti-Static Device

Safety is integral to FlowBiz valve architecture. Every valve features an internally fitted anti-blowout stem to prevent ejection under line pressure spikes, along with integrated anti-static spring mechanisms to safely dissipate electrostatic charges generated by high-velocity fluid flow.

Technical Specifications Matrix

Applications Across Key Processing Industries

FlowBiz Extended Stem 2-Piece Ball Valves are ideal for diverse process applications where pipe insulation and extreme temperatures are present:

• Steam & Condensate Networks: Main steam headers, boiler blowdown systems, and steam distribution manifolds.
• Thermal Oil & Hot Oil Loops: High-temperature fluid distribution in textile, rubber, and chemical plants.
• Refineries & Petrochemicals: Hydrocarbon processing lines requiring thermal insulation for process efficiency.
• Pharmaceutical & Food Processing: Clean steam utilities and jacketed process vessels.

Reliable Supply Chain Across India & International Markets

FlowBiz Exports Pvt. Ltd. is a trusted manufacturer and exporter of premium industrial valves, providing fast deliveries and dedicated technical support through an expansive distribution network:

• Gujarat Industrial Belt: Rapid dispatch to Ahmedabad (Odhav, Vatva, Naroda, Sanand), Vapi, Bharuch, Dahej, Gandhidham, and Surat (Hazira, Sachin).
• Maharashtra Hubs: Supplying major industrial regions including Mumbai, Pune, Nashik, Nagpur, and Aurangabad.
• Global Export Footprint: Proudly exporting high-pressure ball valves, gate valves, globe valves, and flow indicators to clients across Africa and the Middle East.

Partner with FlowBiz Exports Pvt. Ltd.

When safety, thermal efficiency, and zero operational downtime are non-negotiable, industry leaders rely on FlowBiz. Every Extended Stem Ball Valve is subjected to rigorous hydrostatic, shell, and seat leakage testing in accordance with API 598 standards before leaving our manufacturing facility.

Upgrade Your High-Temperature Steam Lines Today

Protect your maintenance teams and eliminate energy loss across insulated pipelines.

• Manufacturer: FlowBiz Exports Pvt. Ltd.
• Website: www.flowbizexports.com
• Email: sales@flowbizexports.com
• Contact Us: Reach out to our engineering sales team today to request dimensional drawings, technical datasheets, or custom quotation pricing!
