Full View Sight Glass
Introduction
In industrial pipeline systems, monitoring fluid characteristics without interrupting process flow is vital for operational safety and efficiency. The Full View Sight Glass provides line operators with a complete 360-degree cylindrical window to visually inspect fluid clarity, flow presence, color changes, and bubble formation. Designed for inline installation, this mechanical observation device allows real-time inspection in continuous process environments. FlowBiz Exports supplies Full View Sight Glasses tailored to meet demanding industrial fluid handling requirements across diverse sectors.
Product Overview

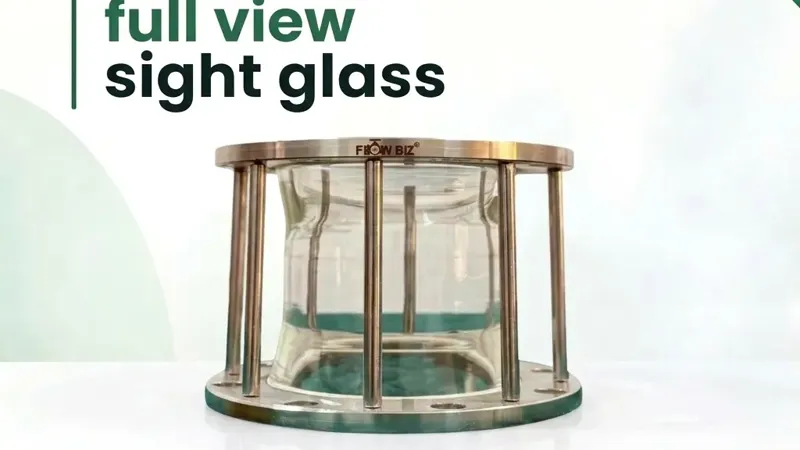

The Full View Sight Glass consists of a high-clarity cylindrical glass tube mounted between metallic body flanges or end fittings. Unlike flat double-window sight glasses that restrict observation to two fixed directions, the full-view tubular configuration allows process fluid visibility from any angle around the pipe body. Secured via tie rods or structural body bolts, the glass cylinder forms a pressure-retaining seal with fluid-compatible elastomeric or fluoropolymer gaskets. It operates passively without moving internal components or power source requirements.
Technical Specifications
Parameter / Feature | Specification |
Product Type | Full View Sight Glass / Tubular Sight Flow Indicator |
Brand / Manufacturer | FlowBiz |
Size Range / Port Size | 15 mm to 200 mm (DN15 to DN200 / 1/2 inch to 8 inch) |
Pressure Rating | Up to 10 bar (145 psi) |
Temperature Range | -10°C to +200°C (subject to gasket material and glass grade) |
Body / End Fitting Material | Stainless Steel (SS304, SS316), Carbon Steel, or Cast Iron |
Glass Cylinder Material | Toughened Borosilicate Glass |
Sealing Gasket Material | EPDM, PTFE, or Viton Gasket |
End Connection Type | Flanged (ANSI / DIN / BS), Screwed, or Socket Weld ends |
Actuation / Power | Mechanical / Passive (No power required) |
Design Standard / Structure | Cylindrical transparent tube body with metal end fittings |
Note: Some product-specific information could not be verified from reliable available sources and has therefore not been included.
Key Features
- 360-Degree Visibility: Transparent glass cylinder design enables unrestricted visual observation of the media stream from any angle.
- High-Grade Glass Material: Built with toughened borosilicate glass resistant to thermal stress and chemical contact.
- Robust Metallic Support: Heavy-duty end flanges connected by steel tie rods provide mechanical strength against line stresses.
- Reliable Sealing System: Uses EPDM, Viton, or PTFE gaskets to maintain leak-tight joints under standard line pressures.
- Multiple End Connection Options: Available with flanged or threaded end connections for convenient pipeline fitting.
Applications
- Chemical Process Networks: Monitoring liquid chemical transfer, fluid color transition, and reaction byproduct movement.
- Pharmaceutical & Food Processing: Inspecting fluid cleanliness, purity, and flow consistency during processing cycles.
- Water & Wastewater Treatment: Observing water clarity, particulate suspension, and filtration stage performance.
- Petrochemical & Light Hydrocarbon Lines: Detecting fluid separation, moisture presence, and liquid-gas interface changes.
Benefits
- Enhanced Visual Monitoring: Allows instant inline detection of flow stoppage, air pockets, or contamination without taking fluid samples.
- Corrosion Resistance: Stainless steel structural options paired with borosilicate glass ensure long service life in aggressive chemical media.
- Simple Maintenance Structure: Uncomplicated mechanical construction allows straightforward gasket or glass tube replacement during routine facility maintenance.
Product Availability / Supply
FlowBiz Exports supplies Full View Sight Glasses to industrial clients across key industrial regions in India, including Gujarat, Ahmedabad, Mumbai, Pune, Delhi, Hyderabad, Chennai, and Bangalore. Customers can request specific size configurations, end flange standards, and gasket specifications to match exact pipeline requirements.
Why Choose FlowBiz Exports
FlowBiz Exports is a recognized supplier and exporter of industrial flow control accessories and pipeline components. Operating with quality management standards, FlowBiz Exports delivers hydrostatically verified, durable sight glasses designed for safe operations across diverse process industries.
Conclusion
The Full View Sight Glass is an essential component for process industries requiring complete 360-degree flow transparency. Featuring robust metallic construction, thermal-shock resistant borosilicate glass, and flexible connection formats, it ensures reliable visual verification in fluid pipelines. FlowBiz Exports provides these high-performance sight glasses to meet stringent quality requirements across national and global markets.
FAQs
Q1. What is Full View Sight Glass?
A Full View Sight Glass is an inline observation instrument equipped with a transparent glass cylinder that provides a 360-degree view of liquid or gas flow inside a pipeline.
Q2. What is the model/code of this product?
This product is classified under the FlowBiz Full View Sight Glass series (available in sizes ranging from DN15 to DN200).
Q3. What are the main specifications of Full View Sight Glass?
Key specifications include a size range of 15 mm to 200 mm, pressure rating up to 10 bar, temperature resistance up to 200°C, toughened borosilicate glass, and stainless steel or carbon steel body flanges.
Q4. Where is Full View Sight Glass commonly used?
It is commonly used in chemical plants, pharmaceutical processes, water treatment facilities, and food processing lines to monitor fluid clarity and flow state.
Q5. How can customers enquire about this product from FlowBiz Exports?
Customers can contact FlowBiz Exports directly via their official website or inquiry emails to request technical datasheets, sizing advice, and official pricing quotes.
