Introduction
FlowBiz Exports is a supplier of industrial valves, including the Cast Iron Flanged Swing Check Valve PN16, designed to prevent reverse flow in pipeline systems. These valves are used in water supply networks, industrial piping, pumping stations, and various fluid-handling applications where reliable one-way flow control is required.
A swing check valve operates automatically according to the direction of fluid flow. It allows fluid to move in the intended direction and helps prevent backflow when the flow stops or reverses. Its simple operating mechanism makes it a practical choice for many water and general industrial services.
As a supplier serving customers across India and international markets, FlowBiz Exports supports industrial buyers, distributors, contractors, and project procurement teams looking for dependable valve supply solutions.

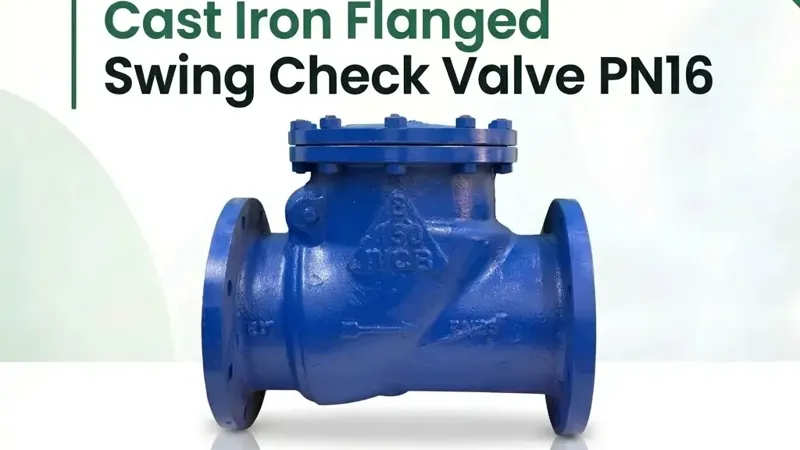

What Is a Cast Iron Flanged Swing Check Valve PN16?
A Cast Iron Flanged Swing Check Valve PN16 is a non-return valve that uses a hinged disc to control fluid flow. When fluid moves in the forward direction, the disc swings open. When the flow decreases or attempts to reverse, the disc moves towards its seat and helps prevent reverse flow.
The term PN16 indicates a nominal pressure rating of 16 bar under the applicable rating conditions. The actual allowable working pressure depends on the valve design, operating temperature, material, and manufacturer's specifications.
The cast iron body provides a rigid construction suitable for many water and general-purpose industrial applications. Flanged ends allow the valve to be connected to compatible flanged pipelines for installation and maintenance.
Key Features of Cast Iron Flanged Swing Check Valve PN16
1. Automatic Non-Return Operation
The valve operates in response to fluid flow without requiring a handwheel, lever, or external actuator.
2. PN16 Pressure Rating
The PN16 designation makes this valve suitable for systems designed around a nominal 16-bar pressure class, subject to the manufacturer's pressure-temperature rating.
3. Cast Iron Body Construction
Cast iron construction is commonly selected for water distribution, utility pipelines, and general industrial services where the medium and operating conditions are compatible with the material.
4. Flanged End Connection
Flanged connections provide a secure bolted joint with compatible pipe flanges, gaskets, and fasteners.
5. Simple Swing Disc Mechanism
The hinged disc opens with forward flow and returns towards the seat as flow decreases or reverses. Actual closing performance depends on the valve design and system conditions.
6. Suitable for Multiple Pipeline Applications
The valve can be considered for water supply, pumping systems, utility services, and other compatible fluid-handling applications.
Working Principle of a Swing Check Valve
The working principle of a swing check valve is straightforward.
Forward Flow: Fluid enters the inlet and pushes the disc away from its seat, allowing the medium to pass through the valve.
Reduced Flow: As the flow rate decreases, the disc starts moving back towards the closed position under the influence of gravity, reverse pressure, and the valve's design.
Reverse Flow Prevention: If the flow attempts to reverse, the disc moves towards the seat and helps restrict backflow.
This automatic operation is particularly useful in pumping systems, where reverse flow may cause unwanted circulation or allow fluid to flow back through a stopped pump.
Important: A swing check valve helps prevent reverse flow, but it should not automatically be assumed to provide zero leakage or eliminate water hammer under every operating condition. Correct selection and system design are essential.
Technical Specifications
The following table provides a general product specification overview. Confirm the exact values against the manufacturer's approved datasheet before placing an order.
| Parameter | Specification |
|---|---|
| Product Name | Cast Iron Flanged Swing Check Valve |
| Valve Type | Swing Check Valve / Non-Return Valve (NRV) |
| Body Material | Cast Iron (CI) |
| Nominal Pressure Rating | PN16 |
| End Connection | Flanged |
| Operating Mechanism | Hinged Swing Disc |
| Flow Direction | One-way flow |
| Operation | Automatic |
| Typical Media | Water and other compatible fluids |
| Applications | Water pipelines, pumping stations, utility and industrial systems |
| Size Range | As per manufacturer's available range |
| Applicable Standards | Confirm flange drilling, dimensions, testing, and design standards with the supplier |
Technical note: PN16 does not mean that every valve can operate at 16 bar at every temperature. The final working-pressure limit must be verified against the applicable product rating.
Applications of Cast Iron Flanged Swing Check Valve PN16
Water Supply and Distribution
Used in compatible water distribution pipelines to help prevent reverse flow and protect the intended direction of circulation.
Pumping Stations
Installed on suitable pump discharge lines to reduce the risk of water flowing backwards through the system when a pump stops.
Municipal Water Projects
Considered for water transmission networks, distribution systems, and related utility infrastructure where the valve specifications meet project requirements.
Industrial Utility Pipelines
Suitable for selected general-purpose industrial services involving compatible fluids and operating conditions.
Commercial and Building Services
May be used in appropriate water circulation and supply systems, subject to project specifications.
Irrigation Systems
Can be considered for compatible irrigation pipelines and pumping arrangements where backflow prevention is required.
Benefits of Using a PN16 Flanged Swing Check Valve
Helps prevent reverse flow: Supports the correct direction of fluid movement in a pipeline.
Automatic operation: Does not require a separate actuator for normal check-valve operation.
Practical installation: Flanged ends allow bolted connections to compatible pipeline flanges.
Suitable for utility applications: Cast iron construction is widely used in appropriate water and general-service systems.
Supports pump-system protection: Can help reduce reverse-flow risks when correctly selected and installed.
Versatile industrial use: Applicable to multiple fluid-handling systems within the valve's approved operating limits.
The actual service life and performance depend on the fluid, installation orientation, operating cycle, maintenance, and system design.
How to Select the Right Cast Iron Swing Check Valve
Before purchasing a Cast Iron Flanged Swing Check Valve PN16, consider the following factors:
1. Pipeline Size: Select the correct nominal diameter (DN/NB) based on the pipeline and project requirements.
2. Operating Pressure: Confirm that the system pressure falls within the valve's approved pressure rating.
3. Operating Temperature: Check the manufacturer's pressure-temperature limits.
4. Fluid Compatibility: Verify that the cast iron body, disc, seat, and other wetted components are suitable for the fluid.
5. Flange Compatibility: Confirm the flange standard, pressure class, drilling pattern, facing, and dimensions.
6. Installation Position: Follow the manufacturer's instructions for orientation and flow direction. Many conventional swing check valves are intended for horizontal pipelines, while vertical installation is permitted only for suitable designs and flow arrangements.
7. Closing Performance: Consider reverse-flow risk, closing speed, and possible water hammer, particularly in pump discharge applications.
8. Inspection and Testing: Request the relevant product datasheet, inspection documents, and test certificates where required by the project.
Cast Iron Swing Check Valve PN16 Supplier in India
FlowBiz Exports serves industrial customers seeking valve supply solutions for water management, infrastructure, and general industrial applications. Buyers looking for a Cast Iron Flanged Swing Check Valve PN16 supplier in India should verify the product's size, material grade, pressure rating, flange dimensions, and test requirements before ordering.
For industrial procurement, providing the following information can help simplify the quotation process:
Required valve size and quantity
PN16 pressure rating and applicable flange standard
Fluid or service medium
Operating pressure and temperature
Delivery location
Required inspection, testing, and documentation
FlowBiz Exports can assist customers with product enquiries and specification coordination based on the requirements of their application.
Reliable Supply Chain Across India & Abroad
FlowBiz Exports serves industrial customers across India and international markets with industrial valve supply solutions, including Cast Iron Flanged Swing Check Valves PN16 for compatible water pipelines, pumping stations, and industrial applications. We aim to support customers with product specification coordination, reliable communication, and delivery planning based on project requirements.
Gujarat: We cater to industrial procurement enquiries from key locations such as Ahmedabad (Odhav, Vatva, Naroda, and Sanand), Vapi, Bharuch, Dahej, Gandhidham, and Surat (Hazira and Sachin).
Maharashtra: We support enquiries from major industrial centres, including Mumbai, Pune, Nashik, Nagpur, and Aurangabad, for industrial valve supply requirements.
International Markets: FlowBiz Exports supports export enquiries for industrial valve solutions from India, including requirements from customers across African markets, subject to product availability and destination-specific requirements.
Whether you are sourcing a Cast Iron Flanged Swing Check Valve PN16 in Gujarat, a Flanged Non-Return Valve in Maharashtra, or industrial check valves for export projects, FlowBiz Exports can assist with product enquiries and specification coordination.
Why Choose FlowBiz Exports?
When sourcing industrial valves, buyers should consider technical suitability, product identification, documentation, communication, and delivery coordination.
FlowBiz Exports aims to support customers by helping them identify suitable valve specifications for their applications and procurement requirements.
Customers can enquire about:
Cast Iron Flanged Swing Check Valves
PN16 Non-Return Valves
Industrial Check Valves
Water Pipeline Valves
Other industrial valve products, subject to availability
Before finalizing an order, customers should review the approved datasheet and confirm the required specifications, applicable standards, and commercial terms.
Frequently Asked Questions (FAQs)
1. What is a Cast Iron Flanged Swing Check Valve used for?
It is used to allow fluid flow in one direction and help prevent reverse flow in compatible pipeline systems.
2. What does PN16 mean in a swing check valve?
PN16 is a nominal pressure designation of 16 bar under the applicable rating conditions. The allowable working pressure must be confirmed from the manufacturer's pressure-temperature data.
3. Is a swing check valve an automatic valve?
Yes. It normally opens and closes in response to fluid flow and pressure conditions without requiring a separate actuator.
4. Where are cast iron swing check valves commonly installed?
They are commonly considered for compatible water supply pipelines, pumping stations, utility services, and general industrial applications.
5. Can a swing check valve be installed vertically?
Only when the specific valve design permits vertical installation and the flow direction and orientation comply with the manufacturer's instructions.
6. How do I select the correct PN16 swing check valve?
Check the pipeline size, operating pressure and temperature, fluid compatibility, flange standard, installation orientation, and required testing documentation.
7. Where can I enquire about Cast Iron Flanged Swing Check Valves in India?
You can contact FlowBiz Exports with your required size, quantity, operating conditions, and delivery location to discuss the appropriate product specifications.
Conclusion
The Cast Iron Flanged Swing Check Valve PN16 is a practical option for compatible water pipelines, pumping systems, utility services, and general industrial applications requiring automatic one-way flow control.
Correct valve selection depends on pressure, temperature, fluid compatibility, flange dimensions, installation orientation, and closing performance. Buyers should verify the approved technical datasheet before purchasing.
For product enquiries and industrial valve supply requirements, contact FlowBiz Exports to discuss your application and specification needs.
