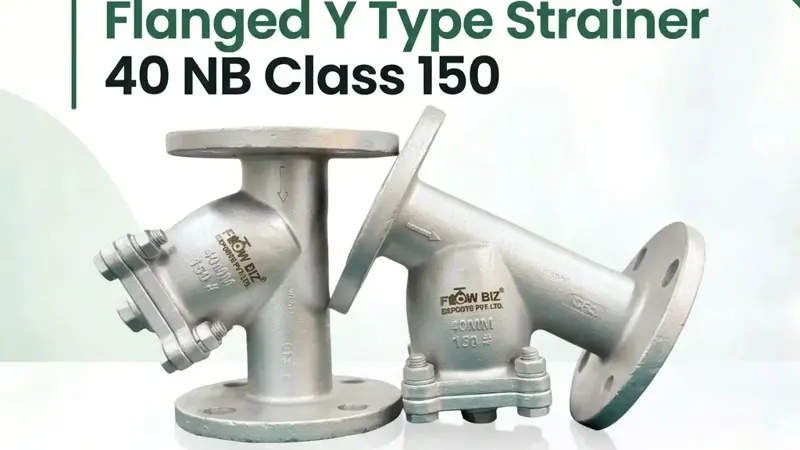

Flanged Y Type Strainer 40 NB Class 150 Manufacturer & Exporter in India | FlowBiz Exports

Introduction

FlowBiz Exports supplies industrial strainers and valve solutions for applications requiring dependable filtration and protection of pipeline equipment. The Flanged Y Type Strainer 40 NB Class 150 is designed to remove unwanted solid particles from flowing media and help protect downstream equipment, including pumps, control valves, flow meters, and other pipeline components.

With its compact Y-shaped body and removable filtration screen, this type of strainer is widely used in industrial piping systems where maintaining fluid cleanliness and reducing equipment damage are important.

The 40 NB size generally corresponds to a nominal bore of 40 mm, approximately 1½ inches. Class 150 refers to an ASME pressure class, not a universal fixed working pressure in bar. The allowable pressure depends on the construction material, temperature, design, and applicable rating standards.

FlowBiz Exports supports industrial procurement enquiries from customers across India and international markets, helping buyers identify suitable strainer configurations according to their application requirements.

What Is a Flanged Y Type Strainer 40 NB Class 150?

A Flanged Y Type Strainer is a mechanical filtration device installed in a pipeline to collect solid contaminants before they reach sensitive downstream equipment.

Its body has a characteristic Y-shaped design. A removable perforated screen or mesh is fitted inside the angled section to trap particles such as rust, scale, dirt, and other debris carried by the flowing medium.

The flanged ends allow the strainer to be bolted into a compatible pipeline using suitable gaskets and fasteners.

The product designation can be understood as follows:

• Flanged: The strainer has flanged end connections for pipeline installation.

• Y Type: The body has a Y-shaped configuration containing the filtration screen.

• 40 NB: The nominal bore is 40 mm, approximately 1½ inches.

• Class 150: The valve or strainer is designed for a specified ASME pressure class, subject to its material and temperature ratings.

This configuration is suitable for various industrial filtration applications when the selected body material, screen, pressure rating, and operating conditions match the process requirements.

Key Features of Flanged Y Type Strainer 40 NB Class 150

1. Efficient Mechanical Filtration

The internal screen captures unwanted solid particles and helps prevent debris from entering downstream equipment. The filtration level depends on the screen's mesh size or perforation diameter.

2. Flanged End Connections

Flanged connections provide a bolted joint for installation in compatible industrial piping systems. The flange dimensions and drilling must match the applicable piping standard.

3. Compact Y-Shaped Design

The Y-shaped body provides a compact arrangement for many horizontal and vertical pipeline installations, subject to the manufacturer's orientation requirements.

4. Removable Screen for Cleaning

The screen can generally be accessed through the strainer cover for inspection and cleaning. This helps maintain filtration performance and reduces the need to replace the entire assembly when the screen requires servicing.

5. Protection for Downstream Equipment

The strainer helps reduce the entry of solid contaminants into pumps, valves, flow meters, and other equipment that may be affected by debris.

6. Multiple Material Options

Depending on the product configuration, Y Type Strainers may be available in cast iron, cast steel, carbon steel, stainless steel, or other suitable materials. The actual material must be confirmed from the product datasheet.

7. Industrial Pipeline Compatibility

The strainer can be selected for suitable liquid, gas, steam, or other process applications when its construction and operating ratings are compatible with the medium.

Technical Specifications of Flanged Y Type Strainer 40 NB Class 150

The following table provides a general specification overview. Confirm the final product configuration with the approved FlowBiz Exports datasheet before ordering.

Technical note: Class 150 does not mean the strainer has a fixed maximum working pressure of 150 bar. Pressure limits must be determined using the applicable pressure-temperature rating and the manufacturer's documentation.

Working Principle of a Y Type Strainer

The working principle of a Y Type Strainer is simple and effective.

Step 1: Fluid Enters the Strainer

The process medium enters through the inlet flange and flows into the strainer body.

Step 2: Filtration Takes Place

As the medium passes through the internal screen, unwanted solid particles are retained inside the screen assembly.

Step 3: Filtered Medium Exits

The filtered medium continues through the outlet towards downstream equipment.

Step 4: Collected Debris Is Removed

Over time, trapped particles accumulate and may increase the pressure drop across the strainer. The screen should be inspected and cleaned according to operating conditions and maintenance procedures.

Regular cleaning helps maintain flow efficiency and reduces the risk of excessive pressure loss.

Applications of Flanged Y Type Strainer 40 NB Class 150

Water Treatment and Water Supply

Y Type Strainers can be installed in suitable water pipelines to remove suspended solid particles and protect downstream equipment.

Chemical and Process Industries

Strainers with compatible body, screen, and gasket materials are used in selected process lines where solid contamination must be controlled.

Oil and Gas Industry

Appropriately rated strainers may be used in compatible hydrocarbon and utility systems, subject to process conditions and project specifications.

Steam and Condensate Systems

Strainers are commonly used in suitable steam and condensate pipelines to collect rust, scale, and other debris that could affect downstream equipment. Temperature and pressure ratings must be verified.

Pumping Systems

Installing a suitable strainer upstream of a pump or other sensitive component can help reduce the risk of damage caused by solid contaminants.

Manufacturing and Engineering Plants

Industrial plants use strainers in utility lines, cooling circuits, process equipment connections, and other compatible fluid-handling applications.

HVAC and Utility Systems

Y Type Strainers may be used in suitable heating, ventilation, air-conditioning, and cooling-water systems to help keep circulating media free of unwanted solids.

Benefits of Using a Flanged Y Type Strainer

Selecting the right Y Type Strainer offers several practical advantages:

• Equipment protection: Helps prevent solid contaminants from reaching downstream components.

• Reduced maintenance risks: Capturing debris can reduce certain types of wear, blockage, and equipment damage.

• Compact installation: The Y-shaped configuration is suitable for many space-conscious pipeline arrangements.

• Reusable filtration element: The removable screen can generally be cleaned and reinstalled when serviceable.

• Improved system reliability: Regular inspection and cleaning help maintain the intended filtration performance.

• Flexible selection: Screen openings, body materials, and pressure ratings can be selected according to the application.

The actual filtration efficiency and pressure drop depend on the screen specification, particle characteristics, flow rate, and amount of accumulated debris.

How to Select the Right 40 NB Class 150 Y Type Strainer

Before purchasing a Flanged Y Type Strainer 40 NB Class 150, consider the following factors.

1. Pipeline Size

Confirm that 40 NB is the required nominal size and that the strainer's connections match the pipeline.

2. Pressure and Temperature

Check the operating and design conditions against the pressure-temperature rating for the specific body material and design.

3. Body and Screen Material

Select a suitable material based on the process medium, corrosion risk, temperature, and mechanical requirements.

4. Mesh Size or Perforation

Choose the screen opening according to the particle size that must be captured and the allowable pressure drop. A finer screen may collect smaller particles but can also clog more quickly.

5. Flange Standard

Verify the applicable flange standard, pressure class, face type, dimensions, and bolt-hole arrangement.

6. Flow Rate and Pressure Drop

Ensure that the strainer can handle the required flow without creating an unacceptable pressure loss.

7. Installation Orientation

Follow the manufacturer's installation instructions to ensure correct flow direction, screen positioning, and convenient access for cleaning.

8. Inspection and Documentation

Request the relevant datasheet, dimensional drawing, material information, and test documentation required for the project.

Flanged Y Type Strainer 40 NB Class 150 Supplier in India

Industrial buyers searching for a Flanged Y Type Strainer 40 NB Class 150 supplier in India should consider technical suitability, material compatibility, documentation, and supply requirements.

FlowBiz Exports supports industrial valve and strainer enquiries for customers involved in manufacturing, engineering, water management, and process industries.

When requesting a quotation, customers should share:

• Required size: 40 NB or 1½ inches

• Pressure class: Class 150

• Required body and screen materials

• Screen mesh size or perforation

• Operating medium and temperature

• Required quantity

• Delivery location

• Applicable standards and inspection requirements

Providing these details helps the supplier assess the required configuration and prepare a more accurate quotation.

Flanged Y Type Strainer Manufacturer & Exporter in Gujarat, India

Gujarat is an important industrial region with engineering, chemical, pharmaceutical, petrochemical, water-treatment, and manufacturing activities. These industries use filtration equipment to protect pipeline components and maintain process reliability.

FlowBiz Exports serves industrial procurement enquiries associated with locations including Ahmedabad, Vapi, Bharuch, Dahej, Vadodara, Surat, Gandhidham, and Rajkot.

Relevant regional search terms for this product include:

• Flanged Y Type Strainer supplier in Ahmedabad

• 40 NB Y Type Strainer supplier in Gujarat

• Class 150 Strainer supplier in Vadodara

• Industrial Y Strainer supplier in Surat

• Flanged Pipeline Strainer supplier in Vapi

• Y Type Strainer supplier in Bharuch

• Industrial Strainer supplier in Rajkot

These geographical keywords help connect product-related content with relevant industrial searches. Specific manufacturing location, stock availability, and delivery timelines should be confirmed directly with the supplier.

Reliable Supply Chain Across India & Abroad

FlowBiz Exports supports industrial customers seeking valve and strainer supply solutions for projects across India and international markets. Our product enquiries include industrial pipeline filtration equipment such as the Flanged Y Type Strainer 40 NB Class 150, subject to the required specifications and product availability.

Gujarat: We cater to industrial procurement enquiries from Ahmedabad (Odhav, Vatva, Naroda, and Sanand), Vapi, Bharuch, Dahej, Gandhidham, and Surat (Hazira and Sachin).

Maharashtra: We support enquiries from major industrial centres, including Mumbai, Pune, Nashik, Nagpur, and Aurangabad.

International Markets: FlowBiz Exports supports export enquiries from international customers, including buyers across African markets, subject to product availability, destination requirements, and agreed commercial terms.

Whether you are sourcing a 40 NB Class 150 Y Type Strainer in Gujarat, a flanged industrial strainer in Maharashtra, or filtration equipment for an export project, FlowBiz Exports can assist with product enquiries and specification coordination.

Why Choose FlowBiz Exports?

Selecting an industrial strainer supplier involves more than comparing prices. Buyers should consider technical compatibility, clear communication, product documentation, and delivery coordination.

FlowBiz Exports supports customers with industrial valve and strainer enquiries by helping coordinate product requirements and specifications.

Customers can enquire about:

• Flanged Y Type Strainers

• Industrial Pipeline Strainers

• Basket Type Strainers

• T Type Strainers

• Duplex and Conical Strainers

• Other industrial valve and filtration products, subject to availability

For project-specific requirements, confirm the product datasheet, approved materials, pressure rating, applicable standards, and testing requirements before placing an order.

Frequently Asked Questions (FAQs)

1. What is a Flanged Y Type Strainer used for?

A Flanged Y Type Strainer is used to remove unwanted solid particles from a flowing medium and help protect downstream equipment such as pumps, valves, and flow meters.

2. What does 40 NB mean?

40 NB refers to a nominal bore size of 40 mm, which is approximately 1½ inches. The actual internal diameter may differ depending on the design and connection specifications.

3. What does Class 150 mean?

Class 150 is an ASME pressure class. It does not represent a fixed working pressure in bar for every material and temperature. The applicable pressure-temperature rating must be checked.

4. Which screen material is used in a Y Type Strainer?

Stainless steel, including SS304 or SS316, is commonly used for strainer screens. The appropriate material depends on the application and the available product configuration.

5. How often should a Y Type Strainer be cleaned?

Cleaning frequency depends on the amount of debris in the medium, screen size, flow rate, and operating conditions. Monitoring differential pressure and following a maintenance schedule can help determine when cleaning is required.

6. Can a Y Type Strainer be used for steam?

A suitably designed and rated Y Type Strainer can be used in compatible steam applications. The body material, screen, gasket, pressure-temperature rating, and installation arrangement must be verified.

7. Where can I enquire about a 40 NB Class 150 Y Type Strainer in India?

You can contact FlowBiz Exports with the required material, screen specification, operating conditions, quantity, and delivery location to discuss your product requirements.

Conclusion

The Flanged Y Type Strainer 40 NB Class 150 is a practical filtration solution for suitable industrial piping systems. Its removable screen helps capture unwanted particles, while the flanged connections allow integration into compatible pipelines.

Correct selection depends on pipeline size, pressure and temperature, body and screen materials, filtration requirements, and flange compatibility.

FlowBiz Exports supports industrial valve and strainer enquiries from customers across India and abroad. Contact FlowBiz Exports to discuss your required specifications and obtain product information for your application.
