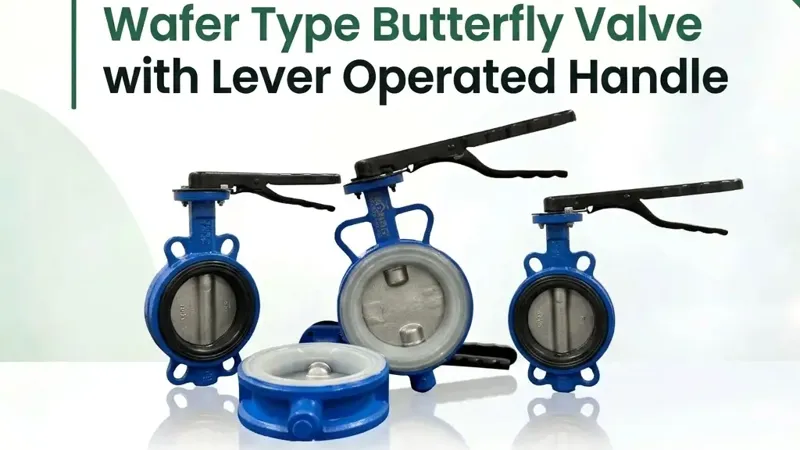

Wafer Type Butterfly Valve with Lever Operated Handle Manufacturer & Exporter in India | FlowBiz Exports

Introduction

FlowBiz Exports supplies industrial valve solutions for water treatment, manufacturing, chemical processing, and general pipeline applications. The Wafer Type Butterfly Valve with Lever Operated Handle is a compact and practical valve designed for controlling or isolating fluid flow in compatible piping systems.

This valve uses a circular disc that rotates inside the valve body to regulate the passage of fluid. A manually operated lever handle allows the operator to open, close, and, where suitable, position the disc for flow regulation.

The wafer-style body is designed to fit between two compatible pipeline flanges, helping reduce installation space. Its compact construction makes it a popular choice for industrial utility lines, water distribution systems, HVAC installations, and other applications requiring convenient manual operation.

FlowBiz Exports supports industrial valve enquiries from customers across India and international markets, helping buyers identify suitable valve configurations according to their application and technical requirements.

What Is a Wafer Type Butterfly Valve with Lever Operated Handle?

A wafer type butterfly valve is a quarter-turn valve installed between two matching pipe flanges. It contains a disc connected to a stem, which is operated using a lever handle.

When the lever rotates the stem, the disc turns inside the pipeline to control the flow passage.

• Lever Operated: The valve is opened or closed manually using a handle.

• Wafer Type: The valve body fits between compatible pipeline flanges.

• Quarter-Turn Operation: A rotation of approximately 90 degrees moves the disc between the open and closed positions.

• Compact Construction: The wafer body helps reduce the space required for installation compared with many longer valve designs.

The valve's material, seat design, pressure rating, and flange compatibility must be selected according to the intended service conditions.

Key Features of Lever Operated Wafer Type Butterfly Valves

1. Easy Manual Operation

The lever handle allows quick opening and closing without an external power supply. Depending on the design, a notched locking mechanism can help hold the valve at selected positions.

2. Compact Wafer Design

The body fits between compatible pipe flanges, making it suitable for installations where space and overall pipeline length are important considerations.

3. Quarter-Turn Mechanism

The disc rotates approximately 90 degrees between the fully open and fully closed positions, allowing convenient manual isolation.

4. Multiple Material Options

Depending on the model, the valve may be available with a cast iron or ductile iron body, a stainless steel or other specified disc, and different seat materials.

5. Flexible Seat Selection

Common seat and liner options include EPDM, NBR, and PTFE, depending on the valve design. The correct choice depends on the fluid, temperature, pressure, and chemical compatibility requirements.

6. Convenient Installation and Maintenance

The wafer configuration supports a compact assembly between suitable flanges. Inspection and maintenance procedures depend on the valve construction and installation arrangement.

7. Suitable for Industrial Flow Control

The valve can be used for on/off isolation and, where permitted by the manufacturer, selected flow-regulation duties.

Technical Specifications of Wafer Type Butterfly Valve

The following table outlines common configuration options. The exact specifications of the pictured FlowBiz Exports valve should be confirmed before publication or purchase.

Technical note: These are typical configuration options, not verified specifications for the exact pictured valve. Confirm the actual body, disc, stem, liner, size, pressure rating, and design standard from the approved product datasheet.

Working Principle of a Lever Operated Butterfly Valve

The valve operates through the rotation of a disc inside the pipeline.

Step 1: Valve Opening

The operator moves the lever, rotating the stem and disc towards the open position. Fluid can then pass through the valve.

Step 2: Flow Passage

When fully open, the disc is positioned approximately parallel to the direction of flow, allowing the medium to pass through the valve opening.

Step 3: Flow Regulation

The disc can be positioned at intermediate angles when the valve design and operating instructions permit throttling.

Step 4: Valve Closing

The operator rotates the lever towards the closed position. The disc moves across the flow passage, and the seat provides the intended sealing action.

The final shut-off performance depends on the seat material, valve condition, pressure differential, and manufacturer specifications.

Applications of Wafer Type Butterfly Valve with Lever Handle

Water Supply and Distribution

Used in compatible water pipelines for manual isolation and flow control in distribution systems and utility networks.

Water Treatment Plants

Installed in suitable filtration, treatment, and water-circulation lines where reliable manual valve operation is required.

HVAC and Cooling Systems

Used in compatible chilled-water, cooling-water, and heating-water systems in commercial buildings and industrial facilities.

Chemical and Process Industries

Suitable for selected chemical services when the body, disc, stem, and seat materials are compatible with the process medium.

Pharmaceutical and Food Processing

Appropriately specified valves may be used in selected process lines. Hygiene requirements, surface finish, cleaning procedures, and material certifications must be verified for the intended application.

Industrial Manufacturing Plants

Used in utility pipelines, circulation systems, and other industrial installations requiring compact manual flow isolation.

General Engineering Applications

Suitable for compatible liquid and gas services within the valve's approved operating limits.

Benefits of Using a Wafer Type Butterfly Valve

• Space-saving design: The compact body reduces the installation length required between pipeline flanges.

• Convenient operation: The lever provides direct manual control.

• Quick opening and closing: Quarter-turn operation allows rapid movement between open and closed positions.

• Material flexibility: Different body, disc, and seat combinations can be selected for suitable applications.

• Practical maintenance: Maintenance requirements depend on the specific design and accessibility of the installed valve.

• Versatile industrial use: Suitable for multiple utility and process applications when correctly specified.

For dependable performance, the valve must be selected according to operating pressure, temperature, fluid compatibility, flow requirements, and installation conditions.

How to Select the Right Lever Operated Butterfly Valve

Before ordering a wafer type butterfly valve, consider the following factors.

1. Valve Size: Match the nominal valve size to the pipeline dimensions and project requirements.

2. Body Material: Select cast iron, ductile iron, stainless steel, or another approved material according to the application.

3. Disc and Stem Material: Check mechanical strength, corrosion resistance, and compatibility with the medium.

4. Seat Material: EPDM, NBR, and PTFE have different temperature and chemical-resistance characteristics. Confirm compatibility before selection.

5. Pressure and Temperature: Verify the manufacturer's pressure-temperature rating for the selected configuration.

6. Flange Compatibility: Confirm the applicable flange standard, pressure class, drilling pattern, and face-to-face dimensions.

7. Lever Mechanism: Check whether the handle includes a locking or position-notching arrangement suitable for the application.

8. Operating Conditions: Consider flow velocity, pressure drop, operating frequency, and whether the valve is intended for isolation or regulation.

9. Documentation: Request the product datasheet, dimensional drawing, material details, and inspection or test documents required for the project.

Wafer Type Butterfly Valve Supplier in India

FlowBiz Exports serves industrial customers looking for valve supply solutions for manufacturing, engineering, water management, and process applications.

Buyers searching for a Wafer Type Butterfly Valve with Lever Operated Handle supplier in India should verify the valve's technical configuration, material compatibility, pressure rating, and connection dimensions before placing an order.

To request a quotation, provide:

• Required valve size and quantity

• Body and disc materials

• Seat or liner material

• Required pressure rating

• Operating medium and temperature

• Applicable flange standard

• Delivery location

• Required inspection and documentation

Providing these details helps clarify the required configuration and supports accurate product selection.

Wafer Type Butterfly Valve Manufacturer & Exporter in Gujarat, India

Gujarat has a strong industrial base spanning engineering, chemicals, manufacturing, water treatment, and process industries. These sectors use butterfly valves in suitable pipeline systems for isolation and flow control.

FlowBiz Exports supports industrial valve enquiries associated with major industrial locations, including Ahmedabad, Vapi, Bharuch, Dahej, Vadodara, Surat, Gandhidham, and Rajkot.

Relevant geographical SEO keywords include:

• Wafer Type Butterfly Valve supplier in Ahmedabad

• Lever Operated Butterfly Valve supplier in Gujarat

• Butterfly Valve supplier in Vadodara

• Wafer Butterfly Valve supplier in Surat

• Industrial Butterfly Valve supplier in Vapi

• Lever Operated Valve supplier in Bharuch

• Wafer Type Butterfly Valve exporter from India

These location-based keywords help target customers searching for industrial butterfly valves in relevant markets. Confirm manufacturing origin, product availability, and delivery coverage directly with the supplier.

Reliable Supply Chain Across India & Abroad

FlowBiz Exports supports industrial customers seeking valve supply solutions for projects across India and international markets. Our product enquiries include Wafer Type Butterfly Valves with Lever Operated Handles, subject to the required specifications and product availability.

Gujarat: We cater to industrial procurement enquiries from Ahmedabad (Odhav, Vatva, Naroda, and Sanand), Vapi, Bharuch, Dahej, Gandhidham, and Surat (Hazira and Sachin).

Maharashtra: We support enquiries from major industrial centres, including Mumbai, Pune, Nashik, Nagpur, and Aurangabad.

International Markets: FlowBiz Exports supports export enquiries from international customers, including buyers across African markets, subject to product availability, destination requirements, and agreed commercial terms.

Whether you are sourcing a lever operated wafer butterfly valve in Gujarat, an industrial butterfly valve in Maharashtra, or valve solutions for an export project, FlowBiz Exports can assist with product enquiries and specification coordination.

Why Choose FlowBiz Exports?

Selecting an industrial valve supplier involves more than comparing prices. Buyers should consider product suitability, specification clarity, documentation, communication, and delivery coordination.

FlowBiz Exports supports customers with industrial valve enquiries by helping coordinate product requirements and technical specifications.

Customers can enquire about:

• Wafer Type Butterfly Valves

• Lever Operated Butterfly Valves

• Gear Operated Butterfly Valves

• Flanged Butterfly Valves

• Ball Valves

• Gate Valves

• Other industrial valve products, subject to availability

Before placing an order, confirm the approved datasheet, material specifications, pressure rating, applicable standards, and commercial terms.

Frequently Asked Questions (FAQs)

1. What is a wafer type butterfly valve?

A wafer type butterfly valve is a quarter-turn valve designed to fit between compatible pipeline flanges. It uses a rotating disc to control or isolate flow.

2. What is the purpose of the lever handle?

The lever handle allows the operator to open, close, and, where permitted, position the valve disc manually without requiring an external power source.

3. What materials are available for wafer type butterfly valves?

Depending on the model, common options include cast iron or ductile iron bodies, stainless steel discs, and EPDM, NBR, or PTFE seats.

4. Can a lever operated butterfly valve regulate flow?

Some butterfly valves can regulate flow at intermediate positions. Confirm that the specific model is suitable for throttling and follow the manufacturer's operating instructions.

5. Is a wafer type butterfly valve suitable for chemical applications?

It can be used for selected chemical services when all wetted materials, including the disc and seat, are compatible with the process medium and operating conditions.

6. How do I choose the correct wafer butterfly valve?

Check the nominal size, pressure and temperature ratings, body and disc materials, seat compatibility, flange standard, and intended service.

7. Where can I enquire about lever operated wafer butterfly valves in India?

Contact FlowBiz Exports with your required specifications, quantity, and delivery location to discuss the appropriate product configuration.

Conclusion

The Wafer Type Butterfly Valve with Lever Operated Handle offers a compact and convenient solution for manual flow isolation in compatible industrial pipeline systems. Its wafer-style construction helps save installation space, while its quarter-turn mechanism supports straightforward operation.

Correct selection depends on valve size, pressure and temperature, body and disc materials, seat compatibility, flange dimensions, and operating requirements.

FlowBiz Exports supports industrial valve enquiries from customers across India and abroad. Contact FlowBiz Exports to discuss your application and obtain product information for your required specifications.
