Introduction to WC6 Swing Check Valve
In industrial piping systems, preventing reverse flow is essential for protecting pumps, compressors, pipelines and other process equipment. A WC6 Swing Check Valve is designed to allow fluid to flow in one direction while helping prevent it from flowing backward.

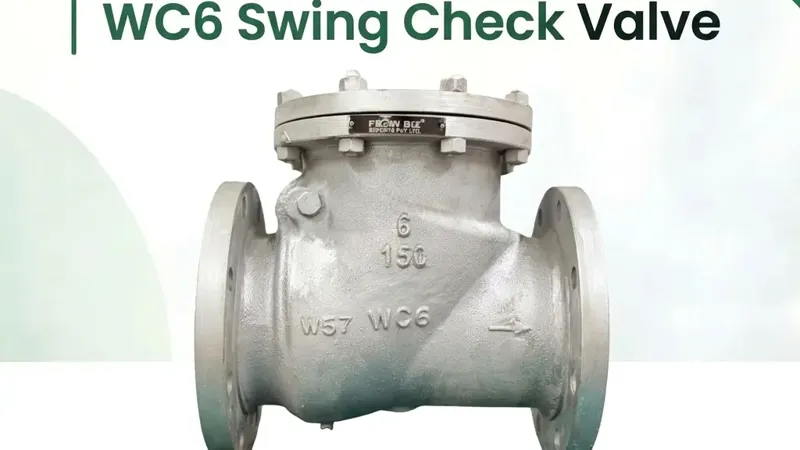

FlowBiz Exports provides industrial valve supply solutions for customers looking for dependable flow-control products. The WC6 Swing Check Valve shown in our product image features a cast alloy steel body, flanged connections and a bolted cover design. The body marking also indicates WC6 and Class 150.
WC6 alloy steel is commonly associated with high-temperature industrial service. The correct valve selection depends on operating pressure, temperature, process fluid, end connections and the applicable design standards.
If you are searching for a WC6 Swing Check Valve manufacturer and exporter in India, this guide explains its working principle, key features, applications, selection criteria and benefits.
What Is a WC6 Swing Check Valve?
A WC6 Swing Check Valve is a non-return valve that uses a hinged disc to control the direction of fluid flow. When fluid moves in the intended direction, the disc swings open. When the flow slows or reverses, the disc moves toward the seat and helps prevent backflow.
The term WC6 refers to an alloy steel casting material grade specified under ASTM A217. It is commonly selected for certain elevated-temperature and demanding industrial applications.
A swing check valve typically consists of:
Body: Contains the internal components and provides the pressure boundary.
Disc: Opens and closes in response to fluid movement.
Hinge and pin: Allow the disc to swing.
Seat: Provides the contact surface for closing the valve.
Bonnet or cover: Provides access to the internal components for inspection and maintenance.
Flanged ends: Connect the valve to compatible pipeline flanges.
The exact construction, internal materials and pressure-temperature limits should be verified from the manufacturer's datasheet.
Key Features of WC6 Swing Check Valve
1. Alloy Steel Construction
WC6 alloy steel is used in industrial valve applications where the material needs to suit the process temperature, pressure and service conditions. Its suitability should be assessed against the actual operating environment.
2. Automatic Non-Return Operation
The valve operates automatically in response to fluid flow. It does not normally require a handwheel, lever or external actuator.
3. Flanged End Connection
The pictured valve has flanged ends for installation in compatible piping systems. Flange standard, facing, dimensions and pressure class must match the pipeline specification.
4. Bolted Cover Design
The bolted cover provides access to the valve's internal components for inspection and servicing, subject to the manufacturer's maintenance procedure and safe isolation requirements.
5. Class 150 Marking
The valve image displays a 150 marking. The complete pressure-temperature rating must be confirmed from the valve documentation; Class 150 should not be interpreted as a universal working pressure in bar.
Technical Specifications of WC6 Swing Check Valve
The following table separates visible product details from specifications that require confirmation.
| Parameter | Details |
|---|---|
| Product name | WC6 Swing Check Valve |
| Valve type | Swing Check / Non-Return Valve |
| Body material | WC6 alloy steel, as indicated by the body marking |
| Pressure class | Class 150, as marked in the image |
| End connection | Flanged |
| Cover design | Bolted cover |
| Operation | Automatic, flow-operated |
| Primary function | Preventing reverse flow |
| Size | Confirm from product datasheet |
| Design standard | Confirm from manufacturer |
| Inspection and testing | Confirm from manufacturer |
| Working temperature | Depends on material, design and pressure rating |
| Working pressure | Confirm from the applicable pressure-temperature rating |
Important: Do not publish an unverified size, temperature range, pressure rating or standard as a confirmed specification. Obtain these details from the actual product datasheet before final publication.
Working Principle of a Swing Check Valve
A WC6 Swing Check Valve works through the movement of its internal hinged disc.
Step 1: Forward Flow
When fluid flows in the intended direction, the force of the moving fluid pushes the disc away from its seat.
Step 2: Valve Opens
The disc swings open, allowing fluid to pass through the valve body.
Step 3: Flow Reduces
When the flow decreases, the disc starts moving back toward the closed position under the influence of gravity and the changing flow conditions.
Step 4: Reverse Flow Prevention
If the flow attempts to reverse, the disc moves toward the seat and helps restrict backflow.
Actual closing performance depends on valve design, installation orientation, fluid velocity and system conditions. Swing check valves may not be suitable for every application where rapid closure or water-hammer control is required.
Applications of WC6 Swing Check Valve
WC6 Swing Check Valves may be considered for suitable industrial systems where alloy steel construction and automatic backflow prevention are required.
Power Plants and Steam Systems
Appropriately rated alloy steel check valves may be used in selected power-generation and steam-related services. Material grade, pressure-temperature rating and system design must be checked before use.
Oil and Gas Industry
Check valves help control flow direction in compatible oil and gas piping systems. Selection depends on the process fluid, operating conditions and project specifications.
Petrochemical and Chemical Plants
Suitable check valves can help protect process lines and equipment from reverse flow. Chemical compatibility must be verified for the complete valve construction.
Industrial Process Pipelines
WC6 Swing Check Valves may be used in compatible process applications where automatic non-return operation is needed.
Pumps and Compressors
Installing a properly selected check valve can help reduce reverse flow through connected equipment when the system stops or operating conditions change.
Benefits of WC6 Swing Check Valve
Choosing the right swing check valve can provide several operational benefits:
Automatic operation: No routine manual operation is needed to open or close the valve.
Backflow prevention: Helps protect equipment and piping from reverse flow.
Simple operating principle: The hinged-disc design responds to changes in fluid flow.
Maintenance access: A bolted cover can allow access to internal parts after safe isolation.
Industrial material options: Alloy steel construction can be suitable for selected demanding services.
Pipeline integration: Flanged ends can simplify installation when they match the piping specification.
Valve performance and service life depend on correct selection, installation, inspection and maintenance.
How to Select the Right WC6 Swing Check Valve
Before purchasing a WC6 Swing Check Valve, consider the following points.
1. Confirm the Material Grade
Verify that WC6 is the required body material for the application. Confirm the material certificates and the material specifications for the disc, seat, hinge and other components where required.
2. Check the Pressure and Temperature
Confirm the maximum and minimum operating conditions, including start-up, shutdown and abnormal conditions. Select the valve using the applicable pressure-temperature rating rather than the class marking alone.
3. Select the Correct Size
Match the nominal valve size to the piping design. Consider flow rate, fluid velocity and pressure drop.
4. Verify the End Connection
Check flange standard, nominal size, facing type, bolt-hole arrangement and mating pipeline flange compatibility.
5. Review the Design and Testing Standards
Confirm the standards specified by the project or application. For steel valves, ASME B16.34 covers relevant pressure-temperature ratings, dimensions, materials, examination and testing requirements for valves within its scope. The applicable design and inspection standards should be confirmed for the specific product.
6. Consider Installation and Flow Conditions
Check the manufacturer's flow-direction marking and installation instructions. Evaluate the risk of disc slam, pressure surges and water hammer in the system.
WC6 Swing Check Valve Supplier in India
FlowBiz Exports serves customers looking for industrial valves and flow-control products in India and international markets. When sourcing a WC6 Swing Check Valve, buyers should provide the required size, pressure class, material, end connection, operating conditions and project specifications to help ensure the correct product is supplied.
Industrial Supply Across Gujarat
We welcome enquiries from industrial customers in:
Ahmedabad, including Odhav, Vatva, Naroda and Sanand
Vadodara and Bharuch
Dahej and Ankleshwar
Vapi and Surat, including Sachin and Hazira
Rajkot and Gandhidham
These locations are relevant to Gujarat's industrial and manufacturing sectors, where reliable valve sourcing is important for plant maintenance and new projects.
Supply Across Maharashtra
Customers can enquire about industrial valve supply for projects in Mumbai, Pune, Nashik, Nagpur and other industrial locations across Maharashtra.
Export Enquiries
FlowBiz Exports also welcomes enquiries from international buyers seeking industrial valve supply solutions. Product availability, documentation, export terms and delivery schedules should be confirmed for each order.
Why Choose FlowBiz Exports?
When sourcing industrial valves, buyers need accurate specifications and clear communication. FlowBiz Exports aims to support customers with product enquiries and supply coordination for industrial flow-control requirements.
Before placing an order, share your technical datasheet or project specification so the valve's material, size, pressure class, end connections and other requirements can be checked.
For the WC6 Swing Check Valve shown in this blog, please confirm the exact product configuration and availability with the FlowBiz Exports team.
Frequently Asked Questions (FAQs)
1. What is a WC6 Swing Check Valve used for?
It is used to allow fluid flow in one direction and help prevent reverse flow in compatible industrial piping systems.
2. What does WC6 mean in a valve?
WC6 is an alloy steel casting grade specified under ASTM A217. It is commonly used in selected industrial valve applications, including services involving elevated temperatures.
3. What is the pressure rating of a Class 150 WC6 Swing Check Valve?
The image shows a Class 150 marking, but the allowable pressure depends on the applicable material group, temperature and governing standard. Check the manufacturer's pressure-temperature rating before selecting the valve.
4. Does a swing check valve require manual operation?
No. A swing check valve normally opens and closes automatically in response to fluid-flow conditions.
5. What is the difference between a swing check valve and a gate valve?
A swing check valve automatically helps prevent reverse flow. A gate valve is generally used to isolate or permit flow through a pipeline and is operated manually or with a suitable actuator.
6. Which industries use WC6 Swing Check Valves?
Potential applications include selected power, oil and gas, petrochemical and industrial process systems, provided the material and pressure-temperature rating meet the service requirements.
7. How can I enquire about a WC6 Swing Check Valve from FlowBiz Exports?
Contact FlowBiz Exports with your required size, class, material specifications, end connection, quantity and operating conditions. This information helps the supply team assess the correct product for your requirement.
Conclusion
A WC6 Swing Check Valve can be an important part of an industrial piping system where automatic flow-direction control and backflow prevention are required. The alloy steel material grade and Class 150 marking shown in the product image provide useful identification details, but the complete technical specification must be confirmed before selection.
For industrial valve enquiries in Ahmedabad, Gujarat, Maharashtra and other Indian markets, contact FlowBiz Exports with your project requirements and technical documentation.
