Introduction to Gear Operated Butterfly Valve
Industrial pipelines require reliable valves to control, regulate and isolate the flow of liquids and gases. A Gear Operated Butterfly Valve is a popular choice for industrial applications because of its compact design, convenient operation and suitability for many pipeline systems.
FlowBiz Exports offers industrial valve supply solutions for customers looking for dependable flow-control products. The gear operated butterfly valves shown in the product image feature a blue-coated body, a circular disc and a handwheel connected to a gearbox. This operating arrangement allows the valve disc to be opened and closed through a gear mechanism.
If you are searching for a Gear Operated Butterfly Valve manufacturer and exporter in India, this guide explains how the valve works, its features, applications, benefits and the factors to consider before purchasing one.
What Is a Gear Operated Butterfly Valve?
A Gear Operated Butterfly Valve is a quarter-turn valve used to control the flow of fluid through a pipeline. It consists of a circular disc mounted on a rotating shaft inside the valve body. A handwheel operates a gearbox, which turns the shaft and changes the disc position.
Unlike a lever-operated butterfly valve, which is generally opened or closed by moving a lever through approximately 90 degrees, a gear-operated valve uses a reduction mechanism. This can make operation easier and more controlled, especially for larger valves or applications requiring higher operating torque.
Gear-operated butterfly valves are commonly considered for water distribution, HVAC systems, industrial process pipelines and other compatible applications.
Key Features of Gear Operated Butterfly Valve
1. Gearbox-Assisted Operation
The gearbox provides mechanical assistance to rotate the valve disc. This helps reduce the effort required from the operator compared with direct operation in applications where higher torque is needed.
2. Handwheel Control
The handwheel allows the operator to open, close or position the valve according to the design and operating instructions. The number of turns required depends on the gearbox ratio and valve configuration.
3. Compact Design
Butterfly valves generally require less installation space than many other valve designs. This makes them useful in pipelines where space and accessibility are important considerations.
4. Quarter-Turn Valve Mechanism
The butterfly disc rotates between open and closed positions. This straightforward operating principle supports practical flow isolation in compatible industrial systems.
5. Multiple Material Options
Depending on the product range, butterfly valves may be available with cast iron, ductile iron, carbon steel or stainless steel body and disc options. Seat materials may include EPDM, NBR or PTFE. The appropriate materials depend on the process fluid, pressure and temperature.
6. Different End Connections
Gear-operated butterfly valves may be supplied in wafer, lug or double-flanged configurations, depending on the product design. The correct connection must match the pipeline and installation requirements.
Technical Specifications of Gear Operated Butterfly Valve

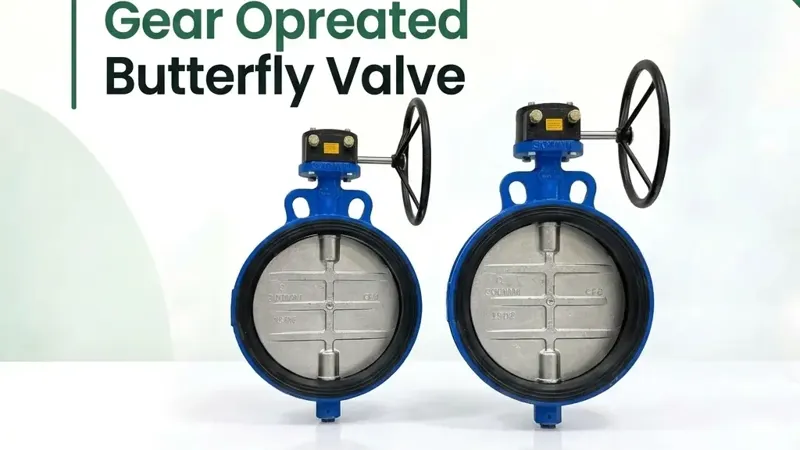

The image identifies the product as a gear-operated butterfly valve, but it does not establish all technical specifications. Use the following table as a selection checklist and confirm the final values with the product datasheet.
| Parameter | Details |
|---|---|
| Product name | Gear Operated Butterfly Valve |
| Valve type | Butterfly Valve |
| Operation | Manual gear-operated handwheel |
| Body appearance | Blue-coated body, as shown |
| Disc | Metallic disc, exact material to be confirmed |
| Seat / liner | Confirm from product datasheet |
| Body material | Confirm whether CI, DI, carbon steel or stainless steel |
| End connection | Confirm wafer, lug or flanged type |
| Size range | Confirm from product datasheet |
| Pressure rating | Confirm from product datasheet |
| Temperature range | Depends on seat, body material and design |
| Design standard | Confirm from manufacturer |
| Testing standard | Confirm from manufacturer |
Important: Do not assume a particular pressure rating, size range, material grade or temperature limit based only on the product image.
Working Principle of Gear Operated Butterfly Valve
The gear-operated butterfly valve works through the rotation of a disc inside the valve body.
Step 1: Handwheel Operation
The operator turns the handwheel in the required direction.
Step 2: Gearbox Movement
The gearbox transfers the handwheel movement to the valve shaft through its gear mechanism.
Step 3: Disc Rotation
The shaft rotates the disc to change the flow passage. In the open position, the disc is aligned more closely with the direction of flow.
Step 4: Flow Isolation or Adjustment
As the disc turns toward the closed position, it increasingly restricts the flow. In the fully closed position, the disc and seat work together to provide shutoff according to the valve's design and rated leakage performance.
The valve should be operated within its manufacturer's limits. Not every butterfly valve is suitable for continuous throttling or every type of process fluid.
Applications of Gear Operated Butterfly Valve
1. Water Treatment Plants
Gear-operated butterfly valves can be used in compatible water treatment pipelines to isolate flow and support maintenance activities.
2. Water Distribution Systems
These valves may be selected for municipal water supply networks, pump stations, reservoirs and distribution pipelines when their materials and pressure ratings meet the application requirements.
3. HVAC and Cooling Systems
Butterfly valves are widely used in compatible heating, ventilation and air-conditioning systems, including cooling water and chilled water pipelines.
4. Industrial Process Plants
Industrial facilities use butterfly valves for flow isolation in suitable process lines. The valve materials must be compatible with the fluid and operating conditions.
5. ETP and STP Plants
Effluent treatment plants and sewage treatment plants may use suitable butterfly valves for water, wastewater and other compatible process lines.
6. Power and Utility Systems
Butterfly valves may be used in selected utility-water and cooling-water systems in power and industrial facilities, subject to the applicable design requirements.
7. Chemical Industries
For chemical applications, body, disc, shaft and seat materials must be selected carefully according to chemical compatibility, concentration, pressure and temperature.
Benefits of Gear Operated Butterfly Valve
Choosing the right gear-operated butterfly valve can provide several advantages:
Reduced operating effort: The gearbox assists manual operation where higher torque is required.
Controlled movement: The handwheel allows gradual disc movement.
Space-saving construction: The butterfly valve design can fit into many compact piping arrangements.
Versatile configurations: Suitable options may be available for different body materials, seats and end connections.
Convenient isolation: The valve can help isolate sections of compatible pipelines for maintenance.
Practical industrial use: Commonly considered for water, HVAC and selected industrial services.
The actual performance depends on the valve design, size, material selection, installation and operating conditions.
Gear Operated vs Lever Operated Butterfly Valve
| Feature | Gear Operated Butterfly Valve | Lever Operated Butterfly Valve |
|---|---|---|
| Operating method | Handwheel with gearbox | Manual lever |
| Disc movement | Controlled through a gear mechanism | Direct lever movement |
| Operating effort | Gear assistance can reduce required effort | Depends on valve size and operating torque |
| Typical consideration | Larger valves or applications needing controlled operation | Smaller valves where direct operation is practical |
| Installation space | Requires room for gearbox and handwheel | Requires clearance for lever movement |
| Positioning | Handwheel movement provides gradual adjustment | Lever usually moves through a short quarter-turn arc |
| Final selection | Based on torque, size and service requirements | Based on torque, size and service requirements |
Neither arrangement is automatically better for every application. The correct choice depends on valve size, operating torque, frequency of operation, available space and the required level of control.
How to Select the Right Gear Operated Butterfly Valve
Before placing an order, check the following points.
1. Valve Size
Confirm the nominal pipeline size and the required valve dimensions. The valve should match the piping design and intended flow conditions.
2. Pressure Rating
Identify the normal operating pressure, maximum pressure and any possible pressure surges. Select a valve with a suitable pressure rating for the intended service.
3. Operating Temperature
Check the minimum and maximum operating temperatures. Seat and liner materials can have different temperature limits.
4. Body and Disc Materials
Select materials according to the process fluid, corrosion risk, pressure and temperature. Do not rely on the external body colour to identify the material grade.
5. Seat Material
EPDM, NBR and PTFE have different properties and chemical compatibility limits. Choose the seat based on the actual application.
6. End Connection
Confirm whether the required valve is wafer type, lug type or double-flanged type. Check the mating flange standard and installation requirements.
7. Gearbox and Operating Requirements
Confirm that the gearbox provides suitable operating torque and that sufficient clearance is available for the handwheel.
8. Testing and Documentation
Review the applicable design and testing standards, inspection requirements and documentation required for your project.
Gear Operated Butterfly Valve Manufacturer & Supplier in India
FlowBiz Exports serves industrial customers seeking valve supply solutions for a range of pipeline and flow-control requirements. When enquiring about a Gear Operated Butterfly Valve, share the valve size, body and disc material, seat material, pressure rating, end connection and intended application.
Providing these details helps the supply team identify a suitable configuration and prepare a more accurate quotation.
Industrial Valve Supply Across Gujarat
We welcome enquiries from industrial customers in:
Ahmedabad, including Odhav, Vatva, Naroda and Sanand
Vadodara and Bharuch
Ankleshwar and Dahej
Vapi and Surat, including Sachin and Hazira
Rajkot and Gandhidham
These locations include industrial and manufacturing centres where suitable butterfly valves may be required for water systems, process plants and utility pipelines.
Serving Maharashtra's Industrial Centres
Valve supply enquiries are also welcome from Mumbai, Pune, Nashik, Nagpur and other industrial locations across Maharashtra.
Export Enquiries
FlowBiz Exports welcomes enquiries from international buyers seeking industrial valve supply solutions. Product configuration, technical documentation, export terms and delivery schedules should be confirmed for each order.
Why Choose FlowBiz Exports?
Selecting the right industrial valve requires more than choosing a product by appearance. Correct material selection, pressure rating, connection dimensions and operating requirements are important for dependable service.
FlowBiz Exports aims to support customers with industrial valve enquiries and supply coordination based on their technical and commercial requirements.
For a Gear Operated Butterfly Valve enquiry, share your datasheet, project specification or existing valve details so the required configuration can be reviewed.
Frequently Asked Questions (FAQs)
1. What is a Gear Operated Butterfly Valve used for?
It is used to isolate or regulate flow in compatible pipeline systems. Typical application areas include water distribution, HVAC, wastewater treatment and selected industrial services.
2. How does a gear-operated butterfly valve work?
A handwheel turns a gearbox, which rotates the valve shaft and disc. The disc position determines whether the valve is open, partially open or closed.
3. What is the difference between a gear-operated and lever-operated butterfly valve?
A gear-operated valve uses a handwheel and gearbox to assist disc movement. A lever-operated valve uses direct manual movement. The suitable option depends on size, torque and operating requirements.
4. Which materials are available for butterfly valves?
Depending on the model, options may include cast iron, ductile iron, carbon steel and stainless steel bodies or discs, with seat materials such as EPDM, NBR and PTFE. Actual availability should be confirmed.
5. Can a gear-operated butterfly valve be used for water applications?
Yes, a suitably rated and correctly configured butterfly valve can be used in compatible water systems. The body, disc, seat and pressure rating must match the service.
6. How do I select the correct seat material?
Consider the process fluid, concentration, operating temperature and pressure. Confirm chemical compatibility and temperature limits with the valve manufacturer.
7. How can I enquire about a Gear Operated Butterfly Valve from FlowBiz Exports?
Share your required size, quantity, pressure rating, material specifications, end connection and application details with FlowBiz Exports to help identify the appropriate product.
Conclusion
A Gear Operated Butterfly Valve is a practical flow-control solution for many compatible industrial pipeline systems. Its gearbox-assisted handwheel operation provides controlled disc movement and can reduce manual operating effort where higher torque is required.
For industrial valve enquiries in Ahmedabad, Gujarat, Maharashtra and other markets across India, contact FlowBiz Exports with your technical requirements.
