Introduction
FlowBiz Exports offers industrial butterfly valve solutions for pipeline isolation, fluid handling and industrial flow-control applications. The Spherical Offset Disc Butterfly Valve is designed for industrial systems that require a robust disc arrangement and dependable flow isolation.

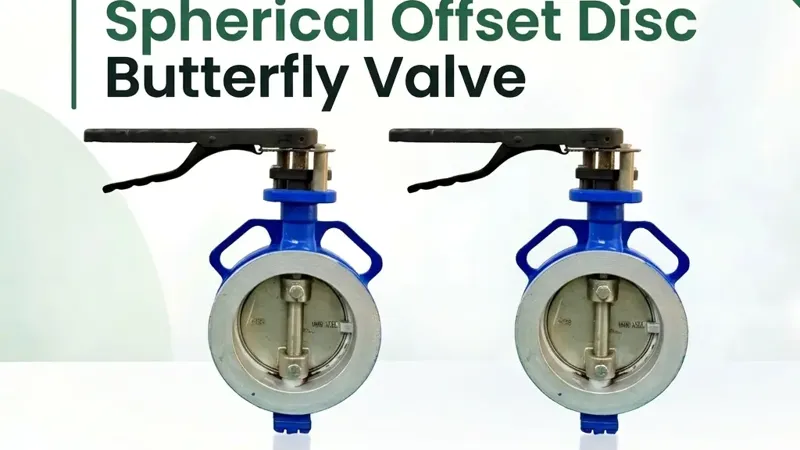

This butterfly valve features a specially shaped spherical disc that moves through a quarter-turn operating cycle. The offset disc design helps manage contact between the disc and sealing surface during operation, depending on the valve's specific construction.
The valve is suitable for compatible industrial applications across manufacturing, engineering, utilities and process industries. FlowBiz Exports supports industrial valve enquiries across Gujarat, Maharashtra and other parts of India, along with international supply enquiries, including those from African markets.
What Is a Spherical Offset Disc Butterfly Valve?
A Spherical Offset Disc Butterfly Valve is a quarter-turn valve that regulates or isolates fluid flow using a rotating disc with a spherical profile. The disc is connected to a shaft and rotates within the valve body to open, restrict or close the flow passage.
The spherical disc geometry is designed to provide controlled movement around the seating area. Depending on the design and seat arrangement, this can help reduce unnecessary rubbing between the disc and seat during operation.
These valves are available in manually operated configurations, such as lever and gearbox operation, according to valve size and application requirements.
Technical Specifications of Spherical Offset Disc Butterfly Valve
| Technical Parameter | Specification |
|---|---|
| Product Name | Spherical Offset Disc Butterfly Valve |
| Valve Type | High-Performance Butterfly Valve |
| Disc Design | Spherical Disc |
| Operating Principle | Quarter-Turn |
| Manual Operation | Lever Operated / Gear Operated |
| Lever-Operated Size Range | 1½ inch to 6 inch (40 mm to 150 mm) |
| Gear-Operated Size Range | 1½ inch to 36 inch (40 mm to 900 mm) |
| Pressure Class | Class 150 model available |
| End Connection | Wafer / Lug / Flanged, depending on configuration |
| Seat Arrangement | Metal-Seated or other specified design, depending on model |
| Application | Industrial Flow Isolation and Control |
| Installation | Between or within compatible pipeline connections, according to valve design |
Operating Configurations
Lever Operated: Suitable for manual operation of compatible valve sizes.
Gear Operated: Provides gearbox-assisted manual operation for larger valve sizes.
Metal-Seated Configuration: Available in specified models for applications requiring a metal-to-metal seating arrangement.
The applicable pressure rating, materials, seat construction and connection dimensions depend on the selected valve model and configuration.
Key Features of Spherical Offset Disc Butterfly Valve
1. Spherical Disc Design
The spherical disc profile is designed to support controlled movement and sealing contact within the valve. Its performance depends on the disc geometry, seat design and manufacturing tolerances.
2. Quarter-Turn Operation
The valve operates through approximately 90 degrees of rotation, allowing convenient opening and closing.
3. Lever and Gearbox Options
Lever operation is suitable for compatible smaller valve sizes, while gearbox operation can make manual movement easier for larger valves.
4. Industrial Construction
The valve is designed for industrial pipeline service, with the material and seat arrangement selected according to operating requirements.
5. Multiple Size Options
FlowBiz Exports lists lever-operated models up to 6 inches and gearbox-operated models up to 36 inches in its spherical disc valve range.
6. Versatile Flow Isolation
The valve can be used for on/off isolation and other suitable flow-control duties, subject to the selected model's design and operating limits.
Applications of Spherical Offset Disc Butterfly Valve
Spherical Offset Disc Butterfly Valves can be used in suitable industrial applications, including:
Water Treatment Plants: Flow isolation in compatible water and utility pipelines.
Chemical Processing Industries: Isolation of compatible process fluids.
Power Plants: Suitable utility and industrial pipeline systems.
Oil and Gas Facilities: Selected isolation applications based on the valve's pressure, temperature and material ratings.
Petrochemical Industries: Industrial flow isolation in compatible services.
Manufacturing Plants: Fluid handling and utility pipeline applications.
Industrial Utilities: Water, air and other compatible process services.
Engineering Projects: Pipeline isolation and flow-control installations.
For demanding applications involving high temperatures, corrosive chemicals or abrasive media, the valve's material and seat construction must be selected for the specific service.
Advantages of Spherical Offset Disc Butterfly Valve
Controlled Disc Movement
The spherical disc geometry is designed to manage contact with the seating surface during the opening and closing cycle.
Convenient Manual Operation
Lever and gearbox configurations provide manual operating options for different valve sizes.
Compact Quarter-Turn Design
The butterfly valve arrangement provides a practical solution for many industrial pipeline layouts.
Flexible Configuration
Different sizes, operating mechanisms and seating arrangements can be selected according to the intended application.
Suitable for Industrial Isolation
The valve can support pipeline isolation in compatible process and utility systems.
Spherical Offset Disc Butterfly Valve Supplier in Gujarat
Gujarat is a major industrial hub with chemical plants, engineering companies, pharmaceutical facilities, manufacturing units and water treatment projects. These industries use butterfly valves for suitable pipeline isolation and flow-control applications.
FlowBiz Exports supports industrial valve enquiries from key locations across Gujarat, including:
Ahmedabad: Odhav, Vatva, Naroda and Sanand industrial areas.
Vadodara: Chemical, engineering and manufacturing industries.
Vapi: Chemical, pharmaceutical and process industries.
Bharuch and Dahej: Chemical and petrochemical facilities.
Surat: Hazira, Sachin and surrounding industrial areas.
Rajkot: Engineering and manufacturing industries.
Gandhidham: Industrial, logistics and port-related operations.
Businesses looking for a Spherical Disc Butterfly Valve Supplier in Ahmedabad, Butterfly Valve Supplier in Gujarat or Industrial Valve Supplier in Vadodara can contact FlowBiz Exports with their size, pressure rating and application requirements.
Spherical Offset Disc Butterfly Valve Supplier in Maharashtra
Maharashtra has a broad industrial base covering engineering, manufacturing, chemical processing, pharmaceuticals, infrastructure and utilities.
FlowBiz Exports supports industrial valve enquiries from locations such as:
Mumbai: Industrial and infrastructure projects.
Pune: Engineering, automotive and manufacturing industries.
Nashik: Manufacturing and process industries.
Nagpur: Industrial utilities and infrastructure.
Chhatrapati Sambhajinagar (Aurangabad): Engineering and manufacturing facilities.
For businesses searching for a Spherical Offset Disc Butterfly Valve Supplier in Mumbai, Butterfly Valve Supplier in Pune or Industrial Valve Supplier in Maharashtra, FlowBiz Exports provides a contact point for product enquiries and supply coordination.
Reliable Supply Chain Across India & Abroad
FlowBiz Exports supports industrial valve enquiries through supply coordination for customers across India and international markets.
Supply Across India
We support enquiries from Gujarat, Maharashtra and other Indian regions, serving the sourcing needs of industrial buyers, contractors, engineering companies and plant maintenance teams.
International Supply – Africa
FlowBiz Exports also supports international enquiries from African markets for industrial valves and related flow-control products. Supply arrangements depend on the selected model, order quantity, destination and project requirements.
Our aim is to help industrial customers source suitable valve solutions for their pipeline and process applications.
How to Select the Right Spherical Offset Disc Butterfly Valve
Before selecting a valve, consider the following factors:
Valve Size: Select the nominal size according to the pipeline dimensions and process requirements.
Pressure Rating: Choose a valve rated for the intended operating pressure.
Temperature: Check the valve's permitted operating temperature for the process fluid.
Disc and Body Materials: Select suitable materials according to corrosion resistance, strength and fluid compatibility.
Seat Design: Determine whether a metal-seated or another seat arrangement is appropriate.
Operating Method: Choose lever or gearbox operation according to valve size and operating torque.
End Connection: Ensure compatibility with the pipeline connection and flange arrangement.
Fluid Type: Consider whether the application involves water, air, oil, gas, chemicals or other process media.
Installation Requirements: Check face-to-face dimensions, clearance and accessibility for operation and maintenance.
Correct selection helps the valve operate within its intended design limits and supports dependable service.
Why Choose FlowBiz Exports?
FlowBiz Exports supplies industrial valve solutions for a range of industrial and infrastructure applications.
Reasons to contact FlowBiz Exports include:
Industrial valve sourcing support.
Spherical disc butterfly valve options.
Lever-operated and gearbox-operated configurations.
Supply coordination across Gujarat and Maharashtra.
Support for enquiries from other Indian industrial regions.
International supply enquiries, including African markets.
Assistance with discussing size, pressure class, material and application requirements.
Our team can help industrial buyers discuss their requirements for Spherical Offset Disc Butterfly Valves and other flow-control products.
Frequently Asked Questions (FAQs)
1. What is a Spherical Offset Disc Butterfly Valve?
It is a quarter-turn butterfly valve that uses a spherical-profile disc to control or isolate flow in a compatible pipeline.
2. How does a spherical disc butterfly valve operate?
The disc rotates approximately 90 degrees to open or close the flow passage.
3. What operating options are available?
FlowBiz Exports lists lever-operated and gear-operated spherical disc butterfly valve configurations.
4. What sizes are available?
The listed range includes lever-operated models from 1½ inches to 6 inches and gear-operated models from 1½ inches to 36 inches.
5. Is a spherical disc butterfly valve suitable for industrial use?
Yes. It can be used in suitable industrial flow-isolation applications when its pressure rating, materials and seat arrangement match the service conditions.
6. Where can I source a Spherical Offset Disc Butterfly Valve in Gujarat?
You can contact FlowBiz Exports for industrial valve enquiries from Ahmedabad, Vadodara, Vapi, Bharuch, Surat, Rajkot and other locations.
7. Does FlowBiz Exports support international supply?
FlowBiz Exports supports international enquiries, including those from African markets, subject to product and order requirements.
Conclusion
The Spherical Offset Disc Butterfly Valve is an industrial flow-control solution designed around a spherical disc profile and quarter-turn operation. Depending on the selected model, lever-operated and gearbox-operated options can support different valve sizes and installation requirements.
FlowBiz Exports supports industrial valve enquiries across Gujarat, Maharashtra and other parts of India, along with international supply enquiries from markets including Africa.
For Spherical Offset Disc Butterfly Valve requirements, contact FlowBiz Exports to discuss the valve size, pressure class, operating method, connection type and application.
