Forged Steel 3 Piece Ball Valve Manufacturer & Exporter in India | FlowBiz Exports
Introduction
FlowBiz Exports supplies industrial forged steel ball valves designed for reliable flow isolation in industrial piping systems. The Forged Steel 3 Piece Ball Valve is suitable for applications where mechanical strength, convenient maintenance and dependable shut-off are important.
A three-piece ball valve consists of a central body section and two end connectors secured together with bolting. This construction allows access to internal components for servicing, subject to the valve design and maintenance procedure.
Forged steel construction is widely used in demanding industrial applications because it offers strong mechanical properties. Depending on the selected model, these valves are available with screwed, socket weld and other end connections.
FlowBiz Exports supports industrial valve enquiries across Gujarat, Maharashtra and other parts of India, along with international supply enquiries, including those from African markets.
What Is a Forged Steel 3 Piece Ball Valve?

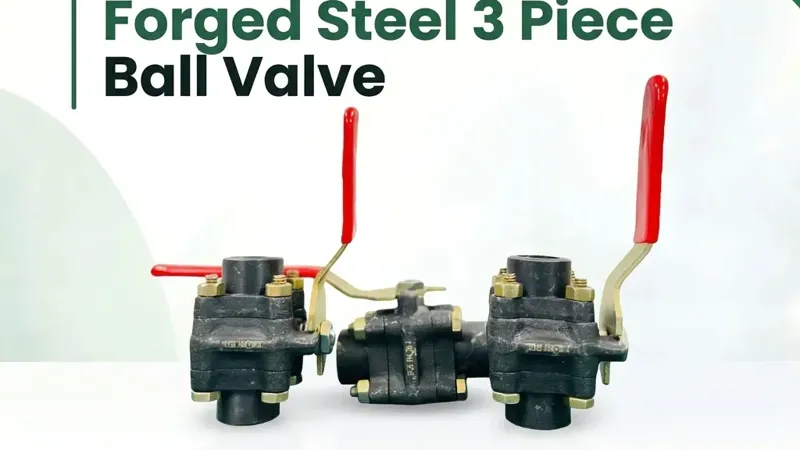

A Forged Steel 3 Piece Ball Valve is a quarter-turn valve manufactured with a forged metal body and a three-piece construction. The internal ball has a bore through its centre, allowing fluid to pass when the valve is open.
Turning the handle approximately 90 degrees rotates the ball to open or close the flow passage. In the closed position, the ball blocks the flow through the valve.
The three-piece design consists of a central body and two end connectors. This arrangement can simplify internal inspection, seat replacement and maintenance compared with valve designs that require complete removal from the pipeline.
Forged steel ball valves are commonly selected for suitable high-pressure industrial services, depending on their pressure class, material, temperature rating and end connection.
Technical Specifications of Forged Steel 3 Piece Ball Valve
| Technical Parameter | Specification |
|---|---|
| Product Name | Forged Steel 3 Piece Ball Valve |
| Valve Type | Ball Valve |
| Body Construction | Three-Piece Bolted Body |
| Body Material | Forged Carbon Steel ASTM A105 |
| Other Material Options | Forged Stainless Steel ASTM A182 F304 / F316 |
| Size Range | ½ inch to 2 inch (15 NB to 50 NB) |
| Pressure Class | Class 150 to Class 1500, depending on model |
| End Connection | Screwed, Socket Weld, Flanged |
| Ball Design | Floating Ball |
| Seat Material | PTFE, RPTFE, Carbon-Filled PTFE, PEEK |
| Operation | Manual Lever Operated |
| Operating Mechanism | Quarter-Turn, Approximately 90° |
| Design Standards | ASME B16.34 / BS 5351, depending on model |
| Testing Standard | API 598 |
| Application | Industrial Flow Isolation |
Key Features of Forged Steel 3 Piece Ball Valve
1. Forged Steel Construction
The forged body provides robust mechanical construction for suitable industrial pressure applications. Material selection depends on the fluid, operating temperature and pressure requirements.
2. Three-Piece Body Design
The central body and two end connectors form a bolted assembly. This arrangement can make internal servicing and replacement of seats or seals more convenient.
3. Quarter-Turn Operation
The ball rotates approximately 90 degrees between open and closed positions, allowing quick manual operation using the lever handle.
4. Multiple End Connection Options
Depending on the model, end connections can include screwed ends, socket weld ends and flanged ends. The selected connection must match the piping design.
5. Flexible Seat Options
Seat materials such as PTFE, RPTFE, carbon-filled PTFE and PEEK are available in different configurations to suit application requirements.
6. Suitable for High-Pressure Applications
Forged steel ball valves are used in suitable high-pressure industrial systems. The permitted operating pressure depends on the valve's pressure class, material and temperature.
Applications of Forged Steel 3 Piece Ball Valve
Forged Steel 3 Piece Ball Valves are used in a variety of compatible industrial applications, including:
Oil and Gas Industries: Isolation in suitable oil, gas and utility lines.
Chemical Processing Plants: Flow isolation for compatible process fluids.
Petrochemical Industries: Industrial pipeline isolation and fluid handling.
Power Plants: Suitable utility and process piping applications.
Steam and Utility Systems: Selected services within the valve's operating limits.
Hydraulic Systems: Fluid isolation in compatible hydraulic equipment and manifolds.
Pneumatic Systems: Isolation in suitable compressed-air installations.
Manufacturing Industries: General industrial flow isolation.
Engineering Projects: Pipeline systems requiring suitable pressure-rated valves.
The valve material, seat design, pressure class and temperature limits should be selected according to the actual process conditions.
Benefits of Forged Steel 3 Piece Ball Valve
Strong Mechanical Construction
Forged body construction provides robust mechanical properties for suitable industrial service.
Convenient Maintenance
The three-piece body design can allow internal components to be serviced without removing the entire valve assembly from the pipeline, depending on installation and maintenance procedures.
Quick Operation
Quarter-turn operation allows convenient manual opening and closing.
Flexible Connections
Screwed, socket weld and flanged configurations can support different piping arrangements.
Replaceable Internal Components
Seats and seals may be replaced during maintenance, depending on the valve design and available replacement parts.
Versatile Industrial Use
The valve can be used in compatible fluid-handling applications across different industries.
Forged Steel 3 Piece Ball Valve Supplier in Gujarat
Gujarat is a major industrial region with chemical plants, refineries, pharmaceutical facilities, engineering companies and manufacturing units that require reliable industrial valves.
FlowBiz Exports supports valve enquiries from key locations across Gujarat, including:
Ahmedabad: Odhav, Vatva, Naroda and Sanand industrial areas.
Vadodara: Chemical, engineering and manufacturing industries.
Vapi: Chemical and pharmaceutical facilities.
Bharuch and Dahej: Chemical and petrochemical industries.
Surat: Hazira, Sachin and surrounding industrial areas.
Rajkot: Engineering and manufacturing industries.
Gandhidham: Industrial, logistics and port-related operations.
Businesses searching for a Forged Steel Ball Valve Supplier in Ahmedabad, Three Piece Ball Valve Supplier in Gujarat or Industrial Ball Valve Supplier in Vadodara can contact FlowBiz Exports with their size, material and pressure-class requirements.
Forged Steel 3 Piece Ball Valve Supplier in Maharashtra
Maharashtra has a diverse industrial base, including engineering, manufacturing, chemical processing, pharmaceuticals and infrastructure projects.
FlowBiz Exports supports industrial valve enquiries from locations such as:
Mumbai: Industrial and infrastructure applications.
Pune: Engineering, automotive and manufacturing industries.
Nashik: Manufacturing and process industries.
Nagpur: Industrial utilities and infrastructure projects.
Chhatrapati Sambhajinagar (Aurangabad): Engineering and manufacturing facilities.
Customers looking for a Forged Steel Ball Valve Supplier in Mumbai, Three Piece Ball Valve Supplier in Pune or Industrial Valve Supplier in Maharashtra can contact FlowBiz Exports for product enquiries and supply coordination.
Reliable Supply Chain Across India & Abroad
FlowBiz Exports supports industrial valve enquiries through supply coordination for customers across India and international markets.
Supply Across India
We support enquiries from Gujarat, Maharashtra and other regions across India. Our customers include industrial buyers, engineering companies, contractors, project procurement teams and plant maintenance departments.
International Supply – Africa
FlowBiz Exports also supports international enquiries from African markets for industrial valves and related flow-control products. Supply arrangements depend on the selected valve configuration, quantity, destination and project requirements.
Our objective is to help industrial customers source suitable valve solutions for their pipeline and process applications.
How to Select the Right Forged Steel 3 Piece Ball Valve
Before purchasing a forged steel ball valve, consider the following factors:
Valve Size: Select the correct nominal size according to the pipeline.
Pressure Class: Choose a valve suitable for the maximum operating pressure and temperature.
Body Material: Select ASTM A105 carbon steel or a suitable stainless steel grade according to the application.
End Connection: Choose screwed, socket weld or flanged ends to match the piping arrangement.
Seat Material: Select PTFE, RPTFE, carbon-filled PTFE or another compatible seat material.
Operating Temperature: Ensure the body, seats and seals can withstand the process temperature.
Fluid Compatibility: Evaluate the chemical composition and corrosion characteristics of the fluid.
Maintenance Requirements: Consider accessibility for inspection, seat replacement and servicing.
Applicable Standards: Check the design, testing and connection standards required for the project.
Correct selection helps support safe installation and dependable valve performance.
Why Choose FlowBiz Exports?
FlowBiz Exports supports industrial valve sourcing for a range of pipeline and process applications.
Reasons to contact FlowBiz Exports include:
Industrial valve sourcing support.
Forged steel ball valve options for suitable applications.
Multiple valve sizes and end connection configurations.
Assistance with product selection and technical requirements.
Supply coordination across Gujarat and Maharashtra.
Support for enquiries from other Indian industrial regions.
International supply enquiries, including African markets.
Our team can help customers discuss their requirements for Forged Steel 3 Piece Ball Valves and other industrial flow-control products.
Frequently Asked Questions (FAQs)
1. What is a Forged Steel 3 Piece Ball Valve?
It is a quarter-turn ball valve with a forged body and a three-piece construction, designed for flow isolation in compatible industrial piping systems.
2. What are the advantages of a three-piece ball valve?
Its construction can simplify access to internal components for inspection, servicing and seat replacement, depending on the valve design and installation.
3. Which materials are used in forged steel ball valves?
Common options include ASTM A105 forged carbon steel and stainless steel grades such as ASTM A182 F304 and F316.
4. Which end connections are available?
Depending on the selected model, options include screwed, socket weld and flanged connections.
5. Are forged steel ball valves suitable for high-pressure service?
They are available in pressure-rated configurations for suitable high-pressure applications. The correct rating must be selected based on the valve model, material and operating temperature.
6. Where are forged steel three-piece ball valves used?
They are used in suitable oil and gas, chemical, petrochemical, power, hydraulic, pneumatic and general industrial applications.
7. Does FlowBiz Exports support supply across India?
Yes. FlowBiz Exports supports industrial valve enquiries from Gujarat, Maharashtra and other regions across India.
8. Does FlowBiz Exports support international enquiries?
Yes. FlowBiz Exports supports international supply enquiries, including those from African markets, subject to product and order requirements.
Conclusion
The Forged Steel 3 Piece Ball Valve is a practical industrial flow-isolation solution for applications requiring robust construction, quarter-turn operation and convenient maintenance access. Its three-piece body arrangement and range of end connection options make it suitable for different compatible piping systems.
FlowBiz Exports supports industrial valve enquiries across Gujarat, Maharashtra and other parts of India, along with international supply enquiries from markets including Africa.
For Forged Steel 3 Piece Ball Valve requirements, contact FlowBiz Exports to discuss the required size, body material, pressure class, end connection and application.
