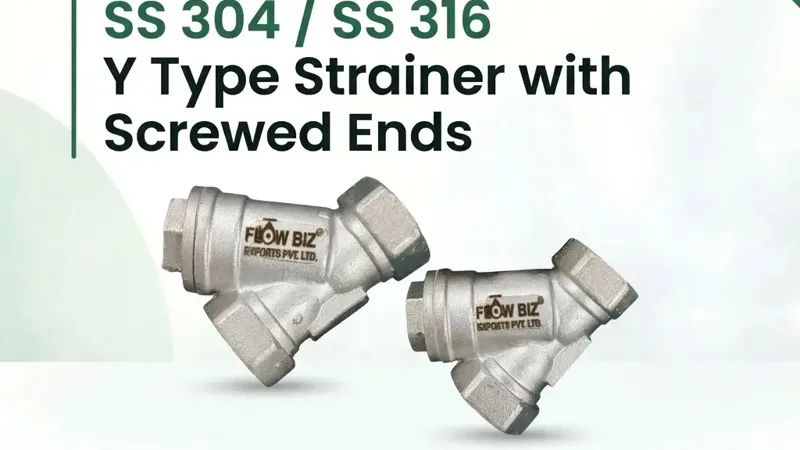

SS 304 / SS 316 Y Type Strainer with Screwed Ends Manufacturer & Exporter in India | FlowBiz Exports
Introduction
FlowBiz Exports Pvt. Ltd. supplies industrial strainers designed to help protect pipelines, pumps, valves and other equipment from unwanted solid particles. The SS 304 / SS 316 Y Type Strainer with Screwed Ends is an inline filtration component used to collect contaminants from flowing liquids and compatible gases.
Its Y-shaped body houses a removable filtration screen that captures particles such as rust, scale, dirt and other suspended impurities. The screwed-end connection provides a threaded connection option for compatible piping systems, making this strainer suitable for selected industrial installations where threaded connections are preferred.
Available stainless steel grades include SS 304 and SS 316. The appropriate grade depends on the process fluid, corrosion conditions, operating temperature and project requirements.
What Is an SS 304 / SS 316 Y Type Strainer?
A Y Type Strainer is a mechanical filtration device installed in a pipeline to remove unwanted solid particles from a flowing medium. Fluid passes through the internal screen, which retains contaminants while allowing the filtered fluid to continue downstream.
The strainer's angled branch provides access to the screen for inspection, cleaning and maintenance. Depending on the design, the screen can be removed through the cleaning cover without replacing the complete valve or strainer body.
The screwed-end version connects to compatible threaded piping. Correct thread selection, pressure rating and material compatibility are essential for reliable installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | SS 304 / SS 316 Y Type Strainer with Screwed Ends |
| Product Type | Y Type Pipeline Strainer |
| Body Material | Stainless Steel SS 304 / SS 316 options |
| Body Casting Grades | CF8 / CF8M, where applicable to the selected grade |
| Screen Material | SS 304 / SS 316 |
| End Connection | Screwed / threaded |
| Thread Standards | BSP, BSPT or NPT, depending on configuration |
| Typical Screwed-End Size Range | 15 NB to 50 NB (½ inch to 2 inches) for common configurations |
| Filtration Element | Removable stainless steel screen |
| Screen Mesh | Selected according to filtration requirements |
| Pressure Rating | Model-dependent; select the applicable rated design |
| Cover Arrangement | Removable or bolted cleaning cover, depending on design |
| Operation | Passive inline filtration |
| Applications | Compatible liquid and gas pipeline systems |
The size range above is typical of common screwed-end stainless steel Y strainers. Actual available sizes, mesh options, pressure rating and cover design depend on the selected FlowBiz product configuration.
Key Features of SS 304 / SS 316 Y Type Strainer
1. Stainless Steel Construction
SS 304 and SS 316 provide corrosion resistance in many industrial environments. SS 316 is often selected where additional resistance to certain corrosive environments is required. The final grade should be selected according to the process fluid and operating conditions.
2. Efficient Particle Filtration
The internal screen captures unwanted solid particles before they travel further through the pipeline. This helps reduce the risk of debris reaching sensitive downstream equipment.
3. Screwed-End Connection
Threaded ends allow connection to compatible threaded piping. BSP, BSPT and NPT are different thread standards, so the required connection must be identified before ordering.
4. Removable Screen for Cleaning
The filtration screen can be accessed for cleaning or replacement according to the strainer design. Routine inspection helps maintain filtration performance and avoid excessive pressure drop caused by accumulated debris.
5. Compact Y-Shaped Design
The angled branch provides space for the screen and collected contaminants. This arrangement is useful in many industrial piping systems where a compact inline filtration component is required.
6. Multiple Screen Options
Different screen mesh sizes can be selected to match the required particle retention and allowable pressure drop. A finer screen generally captures smaller particles but may require more frequent cleaning.
Applications of SS 304 / SS 316 Y Type Strainer
Water Treatment Systems
Helps remove suspended particles from compatible water lines and protect downstream equipment.
Chemical and Process Industries
Can be used in process lines when the selected stainless steel grade, screen and sealing materials are compatible with the chemical medium.
Oil and Industrial Fluid Systems
Helps collect solid contaminants from compatible fluid lines before they reach pumps, instruments or other equipment.
Compressed Air and Gas Lines
Suitable for compatible services where filtration requirements and pressure ratings are appropriate for the selected strainer.
Manufacturing Plants
Can be installed in industrial utility lines and process equipment assemblies where pipeline debris must be controlled.
Pump and Valve Protection
Helps reduce the passage of solid particles that could damage or obstruct downstream pumps, valves, meters and control equipment.
Benefits of Using a Y Type Strainer with Screwed Ends
Equipment protection: Helps reduce debris reaching downstream components.
Maintenance access: A removable screen supports inspection and cleaning.
Corrosion resistance: Stainless steel material options suit a range of industrial environments.
Compact construction: The Y-shaped arrangement fits many inline piping applications.
Threaded installation: Screwed ends can simplify installation in compatible threaded systems.
Flexible filtration: Screen selection can be matched to the process requirements.
SS 304 vs SS 316: Which Material Should You Choose?
SS 304 and SS 316 are both commonly used stainless steel grades, but they are not interchangeable in every application.
| Selection Factor | SS 304 | SS 316 |
|---|---|---|
| General corrosion resistance | Suitable for many general industrial environments | Often provides improved resistance to certain corrosive environments |
| Typical use | General water and utility applications, subject to compatibility | Selected chemical, marine-influenced and more corrosive applications, subject to compatibility |
| Material selection | Based on fluid chemistry and operating conditions | Based on fluid chemistry, chloride exposure and operating conditions |
| Cost consideration | Often the more economical option | Often costs more than SS 304 |
The best choice depends on the actual process medium, concentration, temperature and operating conditions. Neither grade should be assumed suitable for every chemical or corrosive service.
How to Select the Right Screwed-End Y Strainer
Before placing an order, consider the following:
Pipeline size: Match the nominal bore to the piping specification.
Thread standard: Confirm BSP, BSPT or NPT and ensure that mating threads are compatible.
Material grade: Select SS 304 or SS 316 based on the process medium and corrosion conditions.
Screen mesh: Choose a suitable filtration grade based on particle size and the allowable pressure drop.
Operating pressure: Confirm that the strainer's pressure rating is suitable for the system.
Temperature: Ensure that the body, screen and sealing components are suitable for the operating temperature.
Installation orientation: Follow the manufacturer's flow-direction and installation instructions.
Maintenance access: Allow enough space to remove the screen and clean the strainer safely.
Why Choose FlowBiz Exports?
FlowBiz Exports Pvt. Ltd. supports industrial buyers looking for pipeline strainers and other flow-control products.
Industrial valve and strainer supply support.
Stainless steel material options for suitable applications.
Assistance with product selection based on size, connection and filtration needs.
Supply support for industrial purchasers, distributors, contractors and maintenance teams.
Enquiries supported for customers across India and international markets.
To help identify a suitable product, share the required size, stainless steel grade, thread standard, mesh size, operating pressure and process medium.
SS 304 / SS 316 Y Type Strainer Supplier in Gujarat
FlowBiz Exports supports industrial product enquiries across Gujarat, including Ahmedabad, Odhav, Vatva, Naroda, Sanand, Vadodara, Vapi, Bharuch, Dahej, Surat, Hazira, Sachin, Rajkot and Gandhidham.
These industrial centres serve engineering, chemical processing, manufacturing, water treatment and other sectors where pipeline filtration can help protect downstream equipment.
SS 304 / SS 316 Y Type Strainer Supplier in Maharashtra
FlowBiz Exports also supports industrial enquiries from Mumbai, Pune, Nashik, Nagpur and Chhatrapati Sambhajinagar (Aurangabad).
Industrial buyers can enquire about screwed-end Y strainers for compatible fluid systems, utility pipelines and equipment protection applications by sharing their technical requirements.
Reliable Supply Chain Across India and Abroad
FlowBiz Exports supports industrial supply enquiries across India and international markets, including Africa. Product availability and delivery arrangements depend on the selected specification, order quantity and destination.
For project procurement, providing complete technical requirements at the enquiry stage helps ensure that the strainer material, thread type, screen and pressure rating are suitable for the intended application.
Frequently Asked Questions
1. What is an SS 304 / SS 316 Y Type Strainer used for?
It filters solid contaminants from compatible pipeline fluids to help protect downstream equipment.
2. What is the difference between SS 304 and SS 316?
Both are stainless steel grades. SS 316 generally offers improved resistance to certain corrosive environments, but the correct grade depends on the actual process conditions.
3. What does screwed end mean?
Screwed end means the strainer connects to compatible piping through threaded connections rather than flanged or welded ends.
4. Which thread types are available?
Common options include BSP, BSPT and NPT, depending on the product configuration. These standards should not be treated as interchangeable without checking compatibility.
5. Can the Y strainer screen be cleaned?
Many designs feature a removable screen that can be inspected, cleaned and reinstalled according to the manufacturer's maintenance instructions.
6. How do I select the right mesh size?
Select the mesh based on the particle size to be retained, the required filtration level and the allowable pressure drop across the strainer.
7. Is this strainer suitable for chemical applications?
It may be suitable when the selected stainless steel grade, screen and sealing materials are compatible with the chemical and operating conditions.
Conclusion
The SS 304 / SS 316 Y Type Strainer with Screwed Ends is an inline filtration solution for compatible industrial piping systems. Its stainless steel construction, removable screen and threaded connections make it useful for applications where pipeline contaminants need to be captured before reaching downstream equipment.
FlowBiz Exports Pvt. Ltd. supports industrial strainer enquiries across Gujarat, Maharashtra, India and international markets. Contact the team with your required size, material grade, thread standard and filtration requirements to discuss the suitable product configuration.
