Introduction
FlowBiz Exports Pvt. Ltd. supplies industrial ball valves for reliable flow isolation in pipeline and process applications. The Flanged End 3-Piece Ball Valve combines a three-piece body construction with flanged pipe connections, making it suitable for industrial systems that require dependable shut-off and convenient maintenance access.
A three-piece ball valve consists of a central body section and two end connectors. The flanged ends connect the valve to compatible pipeline flanges, while the removable central section provides access to internal components for servicing, depending on the design.
The valve operates through a quarter-turn mechanism. Rotating the handle approximately 90 degrees moves the internal ball between the open and closed positions.
FlowBiz Exports supports industrial valve requirements across Gujarat, Maharashtra, other Indian industrial regions and international markets.
What Is a Flanged End 3-Piece Ball Valve?
A Flanged End 3-Piece Ball Valve is an industrial isolation valve that uses a rotating ball to control the flow of liquid or gas through a pipeline.
The valve body has three main sections: a central body and two end connectors. These sections are assembled with bolting, allowing the centre section and internal components to be accessed for maintenance according to the valve design and approved servicing procedure.
Flanged end connections use bolted joints to connect the valve to compatible pipeline flanges. This connection style is commonly used in industrial piping systems where secure installation and convenient equipment removal are important.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Flanged End 3-Piece Ball Valve |
| Valve Type | Ball Valve |
| Body Construction | Three-piece body |
| Ball Design | Floating ball, depending on configuration |
| End Connection | Flanged |
| Operation | Manual lever operated, as shown |
| Operating Principle | Quarter-turn operation, approximately 90° |
| Body Material Options | Stainless steel, carbon steel and other available grades, depending on configuration |
| Stainless Steel Options | SS 304 / SS 316, where offered |
| Carbon Steel Options | WCB / other applicable grades, depending on configuration |
| Seat Material Options | PTFE, RPTFE and other suitable seat materials, depending on configuration |
| Size Range | Selected according to the required valve model and pipeline size |
| Pressure Class | Selected according to the valve design and operating requirements |
| Applications | Industrial pipeline flow isolation |
| Maintenance | Internal access through the three-piece body arrangement, subject to design |

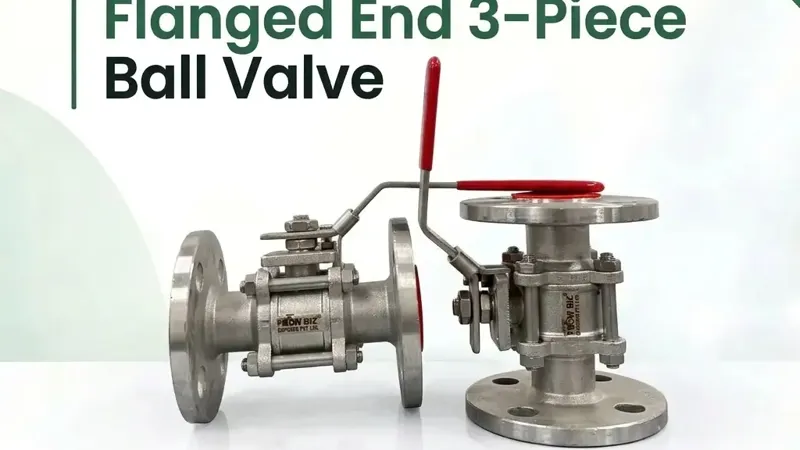

Important: The uploaded product image identifies the valve as a flanged-end three-piece ball valve but does not establish its exact material grade, nominal size or pressure class. These values should match the actual valve being quoted or supplied.
Key Features of Flanged End 3-Piece Ball Valve
1. Three-Piece Body Construction
The three-piece arrangement consists of a central valve body and two end connectors. This design can simplify maintenance by allowing access to the ball, seats and seals without necessarily removing the entire end connections from the pipeline.
2. Flanged End Connections
Flanged ends provide a bolted connection to compatible pipeline flanges. The flange standard, pressure class, facing and dimensions must match the piping system.
3. Quarter-Turn Operation
The internal ball rotates approximately 90 degrees to open or close the flow passage. This makes the valve convenient for on/off isolation applications.
4. Replaceable Internal Components
Depending on the design, seats and seals can be inspected and replaced during servicing. This may help reduce maintenance time and extend the service life of the valve when suitable replacement parts are used.
5. Material Options for Different Applications
Three-piece ball valves are available in different body and trim materials. Stainless steel grades may be suitable for many corrosive environments, while carbon steel options may be appropriate for other industrial services. Material selection must be based on the fluid and operating conditions.
6. Lever-Operated Control
The manual lever shown in the product image provides direct operation of the valve. The handle position indicates the approximate open or closed position, subject to the design.
Applications of Flanged End 3-Piece Ball Valves
Chemical and Process Industries
Used for flow isolation in compatible process-fluid lines. The valve materials and seats must be suitable for the chemical being handled.
Oil and Gas Facilities
Can be used in suitable utility and process piping systems when the valve's pressure class, materials and approvals meet the application requirements.
Water Treatment Plants
Used for isolation in compatible water-treatment and utility pipelines.
Pharmaceutical and Manufacturing Facilities
Can support flow isolation in process and utility lines where the selected valve construction meets cleanliness and process requirements.
Petrochemical Plants
Used in compatible fluid-handling systems where the selected valve configuration meets the project's pressure, temperature and material requirements.
Industrial Utility Systems
Suitable for selected compressed-air, water, oil and other compatible service lines.
The exact application must be checked against the valve's pressure-temperature limits, fluid compatibility and relevant safety requirements.
Benefits of a Three-Piece Ball Valve with Flanged Ends
Convenient maintenance: The three-piece construction can provide access to internal components for servicing.
Secure pipeline connection: Flanged ends allow bolted connections to compatible pipeline flanges.
Quick operation: Quarter-turn operation supports convenient on/off isolation.
Configuration flexibility: Different body materials, seats, sizes and pressure classes may be available across the product range.
Industrial versatility: Suitable configurations can be used across various process and utility applications.
Serviceability: Replaceable seats and seals can help simplify routine maintenance where supported by the design.
Flanged End Ball Valve vs. Screwed End Ball Valve
| Feature | Flanged End Ball Valve | Screwed End Ball Valve |
|---|---|---|
| Connection | Bolted flanged connection | Threaded connection |
| Typical use | Industrial piping and equipment connections | Compatible threaded piping systems |
| Installation | Requires matching flanges, gaskets and bolting | Requires compatible threads and suitable sealing |
| Maintenance | Flanged joints can simplify removal from a compatible pipeline | Removal depends on access and the threaded installation |
| Selection | Based on flange standard, pressure class and dimensions | Based on thread standard, size and pressure requirements |
The correct connection depends on the pipeline design, maintenance needs and applicable piping standards.
How to Select the Right Flanged End 3-Piece Ball Valve
Before placing an order, consider the following factors:
Nominal size: Match the valve size to the pipeline and required flow capacity.
Pressure class: Select a valve rated for the maximum operating pressure and temperature.
Body material: Choose the appropriate material based on the fluid, corrosion conditions and operating environment.
Flange standard: Match the valve flange dimensions, facing and drilling to the pipeline specification.
Seat material: Select seats and seals that are compatible with the process medium and temperature.
Operation: Choose a manual lever or another operating arrangement according to the application.
Maintenance requirements: Consider access for inspection, seat replacement and servicing.
Testing and documentation: Specify the applicable inspection, pressure-testing and material documentation required for the project.
Providing these details at the enquiry stage helps identify the appropriate valve configuration.
Why Choose FlowBiz Exports?
FlowBiz Exports Pvt. Ltd. supports industrial valve sourcing for buyers, contractors, distributors, equipment manufacturers and plant maintenance teams.
Industrial ball valve supply support.
Product configurations for different pipeline connection requirements.
Assistance with material, size and pressure-class selection.
Support for industrial procurement and maintenance enquiries.
Supply coordination across Gujarat, Maharashtra and other Indian regions.
International supply enquiries, including African markets.
Customers can share their required size, body material, pressure class, flange standard and process medium to discuss a suitable product configuration.
Flanged End 3-Piece Ball Valve Supplier in Gujarat
FlowBiz Exports supports industrial valve enquiries from major industrial locations in Gujarat, including:
Ahmedabad: Odhav, Vatva, Naroda and Sanand.
Vadodara: Industrial manufacturing and process applications.
Vapi: Chemical and manufacturing industries.
Bharuch and Dahej: Chemical and petrochemical industrial areas.
Surat: Hazira, Sachin and surrounding industrial zones.
Rajkot: Engineering and manufacturing industries.
Gandhidham: Industrial, logistics and port-related applications.
Customers looking for a Flanged End 3-Piece Ball Valve Supplier in Ahmedabad, Industrial Ball Valve Supplier in Vadodara or Ball Valve Manufacturer in Gujarat can contact FlowBiz Exports with their product requirements.
Flanged End 3-Piece Ball Valve Supplier in Maharashtra
FlowBiz Exports also supports industrial valve enquiries across Maharashtra, including Mumbai, Pune, Nashik, Nagpur and Chhatrapati Sambhajinagar (Aurangabad).
These regions have industrial requirements across engineering, manufacturing, chemical processing, infrastructure and other sectors. Buyers can specify the required valve size, material, pressure class and flange standard when making an enquiry.
Reliable Supply Chain Across India and Abroad
FlowBiz Exports supports industrial valve supply enquiries across India and international markets, including Africa. Supply arrangements depend on the selected configuration, order quantity, project specifications and delivery destination.
For industrial projects, clear technical requirements help ensure that the supplied valve matches the pipeline connection and intended operating conditions.
Frequently Asked Questions
1. What is a Flanged End 3-Piece Ball Valve?
It is a ball valve with a three-piece body construction and flanged pipe connections. It is used for flow isolation in compatible industrial piping systems.
2. What is the advantage of a three-piece design?
The three-piece arrangement can make the internal ball, seats and seals easier to access for maintenance, depending on the valve design and installation.
3. Why are flanged ends used?
Flanged ends provide bolted connections to compatible pipeline flanges and are commonly used in industrial piping systems.
4. Which materials are available?
Material options depend on the product range and may include stainless steel and carbon steel grades. The exact material should be selected for the intended fluid and operating conditions.
5. Is a three-piece ball valve suitable for high-pressure applications?
Some configurations are designed for higher-pressure service. The required pressure class must be selected according to the actual valve design, material and temperature limits.
6. Can the valve be used for chemical applications?
It can be used where the body material, ball, seats and seals are compatible with the chemical and operating conditions.
7. What information is required for a quotation?
Provide the nominal size, body material, pressure class, flange standard, operating temperature, process medium and required quantity.
8. Does FlowBiz Exports support supply across India?
FlowBiz Exports supports industrial valve enquiries across Gujarat, Maharashtra and other regions in India, as well as international markets.
Conclusion
The Flanged End 3-Piece Ball Valve is an industrial flow-isolation solution that combines a serviceable three-piece body design with bolted flange connections. Its quarter-turn operation and maintenance-friendly construction make it useful for suitable industrial pipeline applications.
FlowBiz Exports Pvt. Ltd. supports industrial valve enquiries across Gujarat, Maharashtra, India and international markets. Contact the team with your technical requirements to discuss the appropriate flanged-end ball valve configuration.
