SS 316 Flanged Sight Glass for Pipeline Flow Inspection
Introduction
Visual flow monitoring is an essential requirement in modern industrial fluid processing to confirm medium movement, color clarity, bubbles, or phase changes without interrupting process operations. The SS 316 Flanged Sight Glass supplied by FlowBiz Exports Pvt. Ltd. provides a high-visibility, corrosion-resistant window into liquid, gas, and steam lines. Designed with premium stainless steel housing and thermal-shock resistant glass, this visual flow indicator allows plant operators to inspect fluid flow in real-time, ensuring optimal process conditions, safety, and operational efficiency.
Product Overview

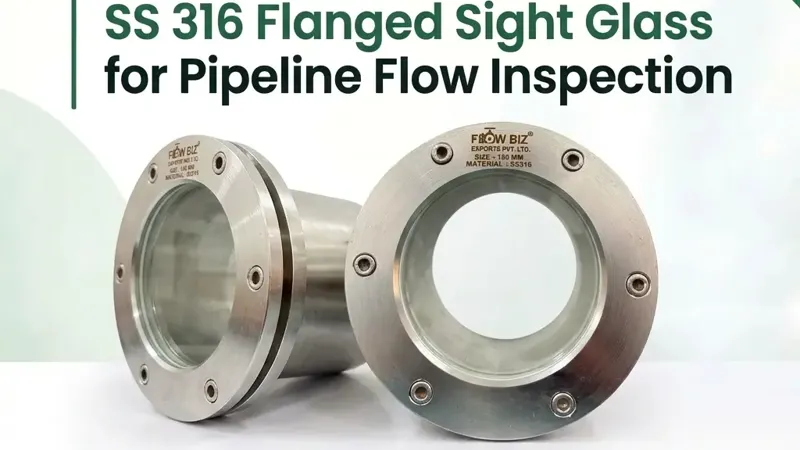

The SS 316 Flanged Sight Glass is built to withstand aggressive fluids, corrosive chemicals, and variable working pressures. Featuring heavy-duty ASTM A351 CF8M / SS 316 flanged end covers held together by high-tensile Allen fastners, it securely encapsulates a toughened borosilicate glass cylinder or window.
Key construction details verified on the product unit include:
- SS 316 Construction: High-grade molybdenum-bearing stainless steel body providing superior resistance to pitting, crevice corrosion, and chemical action.
- Flanged Ends: Flanged construction allowing easy, bolt-on installation between companion pipe flanges.
- High-Clarity Inspection Window: Toughened, high-borosilicate sight glass designed for high clarity and resistance to thermal stresses.
- Clear Body Markings: Permanently laser-engraved/stamped body markings specifying material (SS316) and nominal size (e.g., Size: 100 MM) for complete operational traceability.
Technical Specifications
Parameter | Specification |
Product Name | SS 316 Flanged Sight Glass for Pipeline Flow Inspection |
Product Type | Pipeline Visual Flow Indicator / Sight Glass |
Nominal Size Range | DN15 to DN200 (e.g., 100 MM as stamped on product unit) [Varies by model] |
Body Material | Stainless Steel 316 / ASTM A351 Gr. CF8M |
Sight Window Material | Toughened Borosilicate Glass / High-Pressure Tempered Glass |
Pressure Rating | PN10 / PN16 / Class 150 [Subject to glass thickness & flange specification] |
End Connection | Flanged End (ANSI B16.5 / DIN / BS standard dimensions) |
Operating Mechanism | Passive / Direct Optical Visual Inspection |
Operating Temperature Range | Up to 200°C [Dependent on gasket material (PTFE/Viton/Graphite)] |
Fasteners & Hardware | Stainless Steel Heavy-Duty Socket Head Cap Screws (Allen Bolts) |
Key Features
- Full-Bore Optical Visibility: Offers a clear 360-degree or dual-side view of internal fluid flow without inducing severe pressure drops.
- SS 316 Corrosion Resistance: Ideal for sanitary, pharmaceutical, food, and harsh chemical environments requiring non-reactive metallurgies.
- Robust Flanged Design: Direct flanged integration provides structural stability and leak-tight joint sealing under system pressure.
- Traceable Engineering Specifications: Precision-machined face flange with stamped technical identifiers ensuring verified material composition (SS316).
Working Principle / Operating Mechanism
- Inline Integration: The sight glass is installed directly into the piping run via companion flanges in either horizontal or vertical orientation.
- Visual Observation: As process media (liquids, gases, or slurries) flows through the internal chamber, light passes through the transparent borosilicate glass.
- Flow Monitoring: Operators can visually observe real-time flow rate presence, fluid color, phase change, aeration, or contamination without taking fluid samples.
Applications
- Chemical & Petrochemical Processing: Monitoring solvent flow, acid transfer, and chemical reaction progress.
- Pharmaceutical & Bio-Processing: Inspection of purified water (PW), CIP/SIP fluids, and active ingredients under hygienic conditions.
- Food & Beverage Production: Visual verification of liquid food products, edible oils, and syrups during line transfer.
- Water & Wastewater Treatment: Observing fluid clarity, dosage blending, and sludge filtration stages.
- Steam & Power Generation: Monitoring condensate return lines and lubrication oil flow in machinery circuits.
Benefits
- Instant Process Verification: Provides immediate visual proof of flow presence, preventing dry pump runs or blocked lines.
- Durable & Hygienic: Stainless steel 316 surface minimizes contamination risk and withstands CIP chemical washdowns.
- Simple Maintenance: Standard flange connection allows straightforward removal for glass cleaning or gasket replacement during turnaround.
- Minimized Downtime: Early visual detection of bubbles, fluid discoloration, or turbidity helps identify process failures before complete line shutdown.
Material, Design and Configuration Options
- Body Material: SS 316 (CF8M) for chemical lines; SS 304 (CF8) available for general utility water service.
- Indicator Types: Standard full-view tube sight glass or double-window plate type.
- Gasket Materials: PTFE (Teflon), Viton, EPDM, or Graphite depending on chemical compatibility and temperature requirements.
FlowBiz Exports — Product Supply and Enquiries
FlowBiz Exports Pvt. Ltd. is a trusted supplier and exporter of flow control and inspection equipment based in Ahmedabad, Gujarat, India. The company provides SS 316 Flanged Sight Glasses to process industries across key industrial centers including Ahmedabad, Vadodara, Surat, Dahej, Bharuch, Mumbai, and international export destinations. For custom sizing, flange rating requirements, or official pricing, contact the FlowBiz team directly through their website or enquiry portal.
Conclusion
The SS 316 Flanged Sight Glass is an essential visual diagnostic tool for industrial process pipelines. Its robust SS 316 construction, chemical resistance, and high-clarity borosilicate glass make it a long-lasting, reliable solution for fluid monitoring across chemical, food, and pharmaceutical applications. Sourcing through FlowBiz Exports Pvt. Ltd. guarantees high-grade flow indicators designed to meet demanding industrial standards.
Frequently Asked Questions (FAQs)
Q1: What is the primary function of an SS 316 Flanged Sight Glass?
It is a pipeline fitting designed to provide a transparent window that allows operators to visually observe flow, fluid direction, color, and clarity inside process lines.
Q2: Why is SS 316 preferred for sight glass construction?
SS 316 contains molybdenum, which offers superior resistance to pitting, chlorides, organic chemicals, and corrosive process media compared to standard stainless steel.
Q3: How is this sight glass installed into the pipeline?
It features flanged end connections that bolt directly between standard companion flanges in a horizontal or vertical pipe section.
Q4: Can this sight glass be used in food and pharmaceutical plants?
Yes, the SS 316 body and smooth interior combined with non-contaminating glass make it suitable for food-grade, sanitary, and pharmaceutical utilities.
Q5: How can I submit a product enquiry to FlowBiz Exports Pvt. Ltd.?
Inquiries can be submitted by contacting FlowBiz Exports Pvt. Ltd. via email at info@flowbizexports.com, through their website [https://www.flowbizexports.com/](https://www.flowbizexports.com/), or by calling their customer service line.
