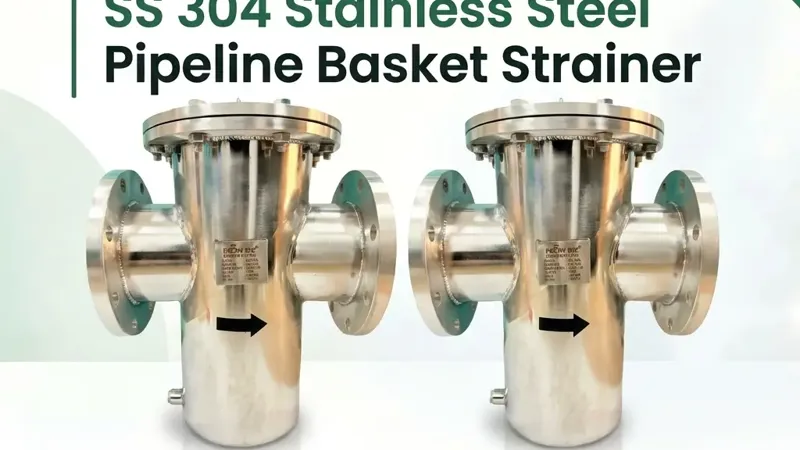

FlowBiz Exports SS 304 Stainless Steel Pipeline Basket Strainer with flanged end connections and bolted top cover



SS 304 Stainless Steel Pipeline Basket Strainer

Introduction

Protecting downstream equipment such as pumps, meters, control valves, and spray nozzles from particulate contamination, rust scale, and foreign debris is a vital requirement in process plant design. The SS 304 Stainless Steel Pipeline Basket Strainer supplied by FlowBiz Exports Pvt. Ltd. offers high-capacity, low-pressure-drop inline filtration for liquid and gas distribution networks. Featuring a large internal basket element, robust fabricated or cast SS 304 housing, and quick-access top cover, this strainer ensures smooth continuous operations across water treatment, chemical, power, and industrial process facilities.

Product Overview

Unlike standard Y-strainers designed for lower debris volumes, the Pipeline Basket Strainer (Bucket Strainer) is engineered with a vertically oriented filtration housing that holds a large perforated or mesh-lined stainless steel basket element. Fluid enters the top of the basket, passes through the perforated basket wall from inside to outside, and leaves foreign solid debris securely trapped inside the basket chamber.

Key construction details verified on the product unit include:

  • Fabricated / Cast SS 304 Body: Constructed from high-purity ASTM A240 / A351 Gr. CF8 (SS 304) stainless steel, ensuring high structural strength, impact durability, and excellent atmospheric and fluid corrosion resistance.
  • Flanged Inlet and Outlet: Heavy-duty flanged side ports designed for direct inline bolting into process piping headers.
  • Bolted Top Cover Flange: Top-access cover secured with high-tensile studs/bolts, enabling simple cover removal for quick basket withdrawal and cleaning without disturbing line connections.
  • Directional Flow Arrow & Bottom Drain: Permanent flow direction arrow permanently stamped/marked on the housing along with a bottom drain port for complete unit blowdown prior to basket servicing.

Technical Specifications



Parameter

Specification

Product Name

SS 304 Stainless Steel Pipeline Basket Strainer

Product Type

Pipeline Basket Strainer / Bucket Filter

Nominal Size Range

DN25 to DN300 (1" to 12") [Standard industrial size range]

Body Material

Stainless Steel 304 / ASTM A351 Gr. CF8 / ASTM A240 SS304

Basket Element Material

SS 304 Perforated Sheet / Wire Mesh Lining

Pressure Rating

Class 150 / Class 300 / PN10 / PN16 / PN25 [Model dependent]

End Connection

Flanged Ends (ANSI B16.5 / DIN / BS Table standards)

Operating Mechanism

Passive Inline Mechanical Filtration

Operating Temperature Range

-20°C to +200°C [Dependent on body gasket material]

Gasket & Fasteners

PTFE / EPDM Body Seal; SS 304 High-Tensile Cover Fasteners

Key Features

  • High Dirt Holding Capacity: Large filtration area ratio minimizes open pressure drop and extends operating intervals between routine basket cleaning cycles.
  • Top-Access Maintenance: Bolted top cover permits top access to the basket element, allowing operators to remove and clean the filter screen without disconnecting the strainer body from the pipeline.
  • Durable SS 304 Construction: Resists corrosion from treated water, mild chemicals, alcohols, and utility fluids.
  • Low Pressure Drop: Expansive internal free area ratio prevents flow restriction and maintains downstream pressure levels.

Working Principle / Operating Mechanism

  1. Fluid Entry: Unfiltered process fluid enters the top side of the strainer inlet port and flows directly into the top opening of the internal SS 304 basket element.
  2. Debris Retention: Solid particles, scale, and foreign suspended solids larger than the basket mesh/perforation size are trapped inside the basket.
  3. Clean Fluid Output: Filtered fluid exits through the perforations into the outer casing and continues through the outlet flange downstream.
  4. Cleanout & Drain: For servicing, the pipeline flow is isolated, the bottom drain valve is opened to empty remaining fluid, the top cover is unbolted, and the basket is lifted out for washing.

Applications

  • Water Treatment & Desalination: Pre-filtration before reverse osmosis (RO) membranes, booster pumps, and UV sterilizers.
  • Chemical Processing: Protecting flow meters and dosing equipment from chemical pipeline scales.
  • Power Generation & Cooling Towers: Filtering cooling water, condenser circulation loops, and boiler auxiliary feeds.
  • Petrochemical & Solvent Handling: Inline straining of light oils, fuels, and industrial solvents.
  • HVAC & Chilled Water Loops: Removing debris from large commercial air-conditioning water lines.

Benefits

  • Protects Expensive Downstream Equipment: Prevents pump impeller erosion, valve seat scoring, and flow meter blockages caused by line debris.
  • Easy Servicing & Reuse: Heavy-duty SS 304 basket screen is fully washable and reusable, lowering replacement filter consumable costs.
  • Corrosion Resistance: Stainless steel 304 construction prevents internal rust formation that could contaminate process media.
  • Flexible Installation: Inline flanged connections allow installation into existing header configurations.

Material, Design and Configuration Options

  • Material Grades: SS 304 (CF8) for standard water/chemical services; SS 316 (CF8M) optional for aggressive marine or high-chloride environments.
  • Basket Mesh Sizes: Available in varying mesh configurations (e.g., 20 mesh, 40 mesh, 80 mesh, or custom perforation hole diameters) based on fluid viscosity and particle size requirements.
  • Cover Fastening: Bolted flange cover standard; quick-opening clamp covers available upon special order.

FlowBiz Exports — Product Supply and Enquiries

FlowBiz Exports Pvt. Ltd. is a premier supplier, exporter, and distributor of industrial valves and pipeline strainers based in Ahmedabad, Gujarat, India. Serving industrial hubs including Ahmedabad, Vadodara, Surat, Dahej, Vapi, Mumbai, Pune, and international export destinations, FlowBiz Exports delivers quality-checked basket strainers built to standard flange dimensional specs. For formal commercial quotes, dimensional drawings, and technical consultations, contact the FlowBiz team directly through their online portal or contact details.

Conclusion

The SS 304 Stainless Steel Pipeline Basket Strainer is an indispensable inline filtration unit for industrial fluid systems. Its combination of high flow capacity, durable SS 304 metallurgy, low pressure drop, and easy top-entry basket maintenance ensures complete protection for process pumps and equipment. Partnering with FlowBiz Exports Pvt. Ltd. ensures access to durable flow control and filtration products engineered for long service life.

Frequently Asked Questions (FAQs)

Q1: What is an SS 304 Stainless Steel Pipeline Basket Strainer used for?

It is an inline filtration device used to catch and hold solid debris, scale, and particulate matter from flowing liquids or gases, protecting downstream pumps, valves, and instruments.

Q2: How does a basket strainer differ from a Y-strainer?

A basket strainer features a larger internal filtration housing with a top-lift bucket element, providing significantly higher dirt retention capacity and lower pressure loss compared to a standard compact Y-strainer.

Q3: Can the SS 304 basket be cleaned and reused?

Yes, the internal SS 304 basket is durable, fully washable, and reusable, reducing long-term filter element replacement costs.

Q4: How is the basket strainer serviced during plant maintenance?

The line is isolated, the bottom drain port is opened to clear remaining fluid, the top flange cover bolts are unfastened, and the basket is lifted out vertically for cleaning.

Q5: How do I submit an enquiry to FlowBiz Exports Pvt. Ltd. for basket strainers?

You can send your specific size, mesh size, and pressure requirements to FlowBiz Exports Pvt. Ltd. via email at info@flowbizexports.com or through their official website at [https://www.flowbizexports.com/](https://www.flowbizexports.com/).
