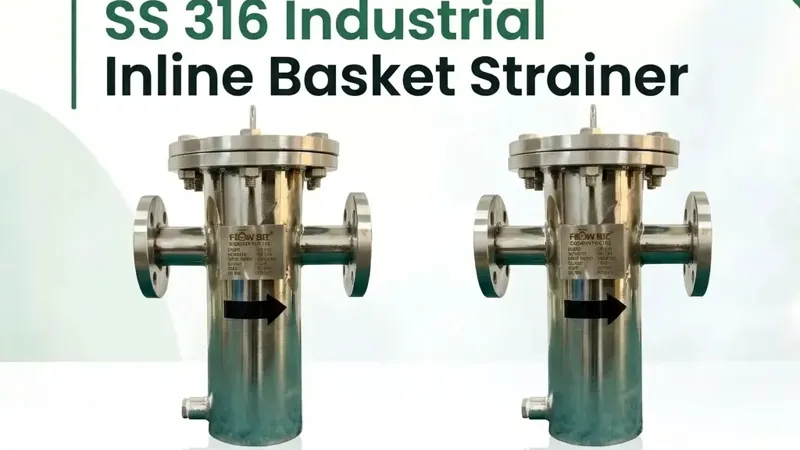

FlowBiz Exports SS 316 Industrial Inline Basket Strainer featuring flanged connections, lifting eye bolt, and stainless steel 316 housing

SS 316 Industrial Inline Basket Strainer

Introduction

In high-purity chemical processing, marine handling, and aggressive fluid utilities, protecting pumps, heat exchangers, spray nozzles, and control valves from suspended solids and pipeline debris requires superior corrosion resistance. The SS 316 Industrial Inline Basket Strainer supplied by FlowBiz Exports Pvt. Ltd. provides reliable, high-capacity liquid and gas filtration. Built from molybdenum-bearing stainless steel (SS 316 / CF8M), this strainer delivers exceptional resistance to pitting, chemical erosion, and severe operating environments while ensuring low pressure drops across continuous production lines.

Product Overview

The SS 316 Industrial Inline Basket Strainer is specifically designed for process applications where standard materials like cast iron or carbon steel would corrode or contaminate the process fluid. The vertical cylindrical body houses a heavy-duty SS 316 basket filter element that captures debris as fluid moves through from inside to outside.

Key construction details verified on the product unit include:

  • SS 316 Body & Cover Construction: Crafted from high-grade ASTM A351 Gr. CF8M / ASTM A240 SS 316 stainless steel to ensure optimum resistance to acids, alkalis, chlorides, and harsh industrial solvents.
  • Flanged Inlet and Outlet Ports: Inline flanged connections designed for seamless installation into process headers.
  • Top Cover with Lifting Eye Bolt: The bolted top cover flange includes a top-mounted eye bolt to facilitate easy lifting during maintenance and basket replacement.
  • Directional Flow Marking & Bottom Drain: Includes a permanent flow direction arrow marked on the cylinder body alongside a bottom drain port for complete vessel blowdown prior to servicing.

Technical Specifications



Parameter

Specification

Product Name

SS 316 Industrial Inline Basket Strainer

Product Type

Inline Basket Strainer / Bucket Strainer

Nominal Size Range

DN25 to DN300 (1" to 12") [Standard industrial basket strainer range]

Body & Cover Material

Stainless Steel 316 / ASTM A351 Gr. CF8M / ASTM A240 SS316

Basket Element Material

SS 316 Perforated Sheet / SS 316 Wire Mesh

Pressure Rating

Class 150 / Class 300 / PN10 / PN16 / PN25 [Model dependent]

End Connection

Flanged Ends (ANSI B16.5 / DIN / BS Table standards)

Operating Mechanism

Passive Inline Mechanical Filtration

Operating Temperature Range

-20°C to +220°C [Dependent on body gasket seal selection]

Hardware & Accessories

Top Cover Lifting Eye Bolt; Heavy-Duty SS 316 Studs/Bolts

Key Features

  • Superior SS 316 Corrosion Resistance: Protects against pitting corrosion in chloride-bearing environments, saline fluids, organic acids, and pharmaceutical media.
  • Top Eye Bolt Design: Integrated lifting eye bolt simplifies top cover removal and basket servicing for maintenance crews.
  • Large Internal Filtration Area: Generous basket surface ratio minimizes open pressure drop and extends runtime between cleaning cycles.
  • Top-Access Servicing: Top bolted cover design allows basket retrieval without removing the strainer body from the line.

Working Principle / Operating Mechanism

  1. Fluid Entry: Process fluid flows in through the inlet flange and enters directly into the upper basket chamber.
  2. Debris Capture: Media passes through the SS 316 perforated wall/mesh lining, trapping particulates, rust scale, and solids inside the basket.
  3. Clean Discharge: Filtered media exits through the outer chamber and leaves via the outlet flange into downstream piping.
  4. Blowdown & Basket Cleaning: Flow is isolated, the bottom drain port is opened to drain remaining fluid, the top cover is lifted using the eye bolt, and the reusable SS 316 basket is cleaned.

Applications

  • Chemical & Petrochemical Plants: Straining acids, caustics, organic solvents, and specialty chemicals.
  • Pharmaceutical & Bio-Processing: Prefiltration of process water, active ingredients, and washdown solutions.
  • Desalination & Marine Systems: Handling seawater, brine, and high-salinity process streams.
  • Food & Beverage Processing: Strainer protection for edible liquid lines, syrups, and wash systems.
  • Power & Fertilizer Facilities: Utility water, condensate return, and dosing chemical loops.

Benefits

  • Protects Critical Equipment: Prevents costly damage to high-pressure pumps, meters, control valves, and heat exchangers.
  • Long Operational Life: Molybdenum-enhanced SS 316 construction drastically reduces equipment replacement frequency in corrosive duties.
  • Environmentally Friendly & Reusable: The SS 316 mesh/perforated basket element can be washed and re-installed repeatedly.
  • Safe & Simple Maintenance: Eye bolt assembly makes handling cover plates safer and faster for plant personnel.

Material, Design and Configuration Options

  • Material Grades: SS 316 (CF8M) standard; SS 316L (low carbon) available upon request for welded systems.
  • Filter Screen Options: Mesh sizes tailored from coarse 20 mesh down to fine 100+ mesh or custom perforated hole sizes.
  • Gasket Options: PTFE (Teflon), Viton, or Spiral Wound Gaskets depending on line fluid and temperature.

FlowBiz Exports — Product Supply and Enquiries

FlowBiz Exports Pvt. Ltd. is a prominent supplier and exporter of industrial flow equipment based in Ahmedabad, Gujarat, India. The company supplies high-grade SS 316 Industrial Inline Basket Strainers to process plants in major industrial hubs such as Ahmedabad, Vadodara, Surat, Dahej, Bharuch, Vapi, Mumbai, and international export markets. For technical catalog requests, custom mesh specifications, and pricing enquiries, contact FlowBiz Exports via their web portal or official support channels.

Conclusion

The SS 316 Industrial Inline Basket Strainer delivers dependable, heavy-duty filtration for critical chemical, pharmaceutical, and water process applications. Its robust SS 316 construction, high-capacity basket chamber, and convenient eye bolt cover arrangement ensure optimum operational safety and long service life. Partnering with FlowBiz Exports Pvt. Ltd. provides reliable access to engineered pipeline strainers that meet rigorous industrial standards.

Frequently Asked Questions (FAQs)

Q1: What makes SS 316 better than SS 304 for an inline basket strainer?

SS 316 contains 2–3% molybdenum, providing significantly higher resistance to pitting, crevice corrosion, chlorides, and harsh chemicals compared to SS 304.

Q2: What is the purpose of the top eye bolt on this strainer?

The top eye bolt provides a secure attachment point for lifting equipment or manual handling when removing the heavy top flange cover during maintenance.

Q3: How is fluid drained before opening the strainer for cleaning?

The strainer includes a dedicated threaded drain port located near the base of the cylindrical housing to allow complete fluid blowdown before unbolting the top cover.

Q4: Can this strainer be used in seawater or desalination lines?

Yes, SS 316 is widely specified for marine and brackish water applications due to its superior chloride corrosion resistance.

Q5: How can I submit a product inquiry to FlowBiz Exports Pvt. Ltd.?

You can submit inquiries to FlowBiz Exports Pvt. Ltd. by emailing info@flowbizexports.com or via their website [https://www.flowbizexports.com/](https://www.flowbizexports.com/) with your required line size, pressure rating, and mesh size requirements.
