Plate Type Temporary Strainer
Introduction
During initial commissioning, plant startup, or post-maintenance flushing, industrial pipelines often carry construction debris such as welding slag, pipe scale, rust, and gaskets. Leaving these foreign particles in the stream can cause catastrophic damage to expensive downstream equipment like pumps, control valves, meters, and turbines. The Plate Type Temporary Strainer provides an economical, space-saving protection barrier designed for short-term filtration during critical operational phases. FlowBiz Exports supplies Plate Type Temporary Strainers to safeguard pipeline integrity across process plants in India and abroad.
Product Overview

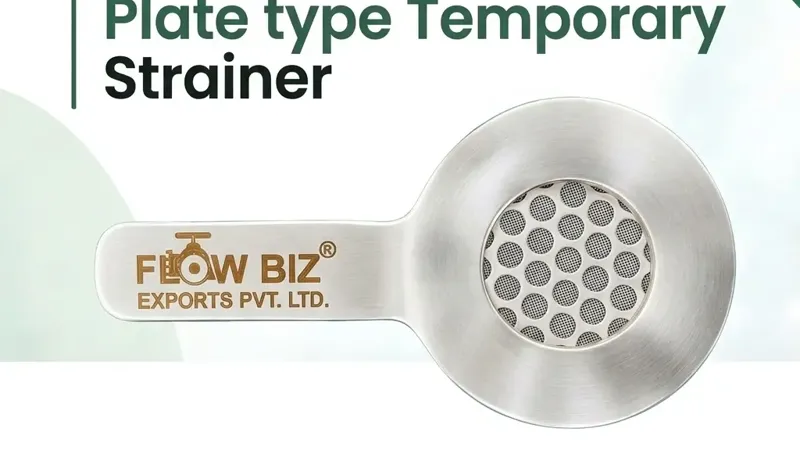

A Plate Type Temporary Strainer—also known as a flat plate strainer or paddle-type temporary strainer—consists of a flat metallic plate with a perforated central filtration zone and an extended handle/indicator tab. Installed directly between two standard mating pipe flanges using gaskets, its extended handle protrudes beyond the flange diameter to visually signal to operators that a temporary strainer is installed in the line. Once commissioning is completed and the pipeline is thoroughly flushed, the strainer can be removed or replaced with a permanent spacer ring.
Technical Specifications
Parameter / Feature | Specification |
Product Type | Plate Type Temporary Strainer / Flat Strainer / Start-up Strainer |
Brand / Manufacturer | FlowBiz |
Size Range | 15 mm to 600 mm (DN15 to DN600 / 1/2 inch to 24 inch) |
Pressure Class / Rating | ASME Class 150, 300, 600, 900, 1500 (or PN ratings) |
Perforation / Mesh Material | Stainless Steel (SS304, SS316, SS316L), Monel, or Carbon Steel |
Screen Options | Perforated plate only or mesh-lined (fine mesh backing) |
Handle / Tab Design | Extended paddle handle with size/class stamping for easy identification |
Flange Compatibility | Suitable for Raised Face (RF), Flat Face (FF), or Ring Type Joint (RTJ) flanges |
Design Standards | ASME B16.5 / ASME B16.47 / Manufacturer Standard |
Testing & Inspection | Visual and Dimensional Verification / Hydrostatic compatibility |
Note: Some product-specific information could not be verified from reliable available sources and has therefore not been included.
Key Features
- Compact Flat Profile: Compact disc construction allows easy insertion directly between existing pipe flanges without altering line dimensions.
- Extended Indicator Tab: The built-in handle tab remains clearly visible outside the flange joint, alerting operators to its presence in the line.
- Corrosion-Resistant Materials: Manufactured using stainless steel alloys (SS304/SS316) to ensure media compatibility and structural integrity under flow velocity.
- Customizable Perforation Sizes: Available in various hole diameters and mesh overlays to catch specific particulate sizes during flushing.
- Cost-Effective Protection: Provides a low-cost insurance policy for downstream pumps, valves, and measuring instruments during system commissioning.
Applications
- Plant Commissioning & Startup: Installed in newly constructed oil, gas, chemical, and power pipelines to collect construction debris.
- Post-Maintenance Flushing: Placed ahead of sensitive instruments following system overhauls, welding, or line modifications.
- Pump & Turbine Protection: Temporary inline protection during trial runs and initial fluid circulation phases.
- Refineries & Petrochemical Lines: Trapping scale and debris during initial hydrocarbon filling or chemical flushing operations.
Benefits
- Equipment Damage Prevention: Prevents severe mechanical damage to control valve seats, impellers, and flow meter sensors during line start-up.
- Space-Saving Installation: Requires zero special housing or extra pipe length, unlike permanent Y-strainers or basket strainers.
- Clear Operational Visibility: Protruding tab prevents accidental leaving of temporary strainers in line after flushing is completed.
Product Availability / Supply
FlowBiz Exports supplies Plate Type Temporary Strainers to major industrial hubs including Ahmedabad, Vadodara, Surat, Rajkot, Mumbai, Pune, Delhi, Hyderabad, Chennai, and Bangalore. Custom dimensions, pressure classes, and mesh configurations are supplied based on project specification requirements.
Why Choose FlowBiz Exports
FlowBiz Exports is a trusted supplier and exporter of flow control accessories, strainers, and pipeline components. Operating with stringent quality checks, FlowBiz Exports delivers precisely manufactured temporary strainers engineered to meet international flange standards and project specifications.
Conclusion
The Plate Type Temporary Strainer is an essential safeguard for initial pipeline commissioning and startup phases. By capturing construction debris and particulates before they reach critical machinery, it prevents costly equipment failures and downtime. FlowBiz Exports provides robust, accurately dimensioned plate strainers designed to deliver reliable protection across diverse industrial process networks.
FAQs
Q1. What is a Plate Type Temporary Strainer?
A Plate Type Temporary Strainer is a flat, perforated metallic disc with an extended handle designed to fit between pipe flanges for short-term filtration during plant startup and flushing.
Q2. What is the model/code of this product?
This product is classified under the FlowBiz Plate Type Temporary Strainer series (available across ASME Class 150 to 1500 and sizes DN15 to DN600).
Q3. What are the main specifications of Plate Type Temporary Strainer?
Key specifications include a size range of 15 mm to 600 mm, flange rating compatibility from ASME Class 150 to 1500, stainless steel (SS304/SS316) construction, and customizable perforation/mesh sizes.
Q4. Where is Plate Type Temporary Strainer commonly used?
It is commonly used during the initial startup, commissioning, and flushing phases of power plants, refineries, chemical process lines, and water utility lines to protect downstream pumps and valves.
Q5. How can customers enquire about this product from FlowBiz Exports?
Customers can contact FlowBiz Exports through their official website or direct sales email to request quotes, technical datasheets, and flange compatibility details.
