Swing Check Valve Manufacturer in India: High-Performance NRV Solutions by FlowBiz Exports
In any pipeline system, preventing backflow is critical to protecting pumps, compressors, and expensive infrastructure. FlowBiz Exports Pvt Ltd is a leading Swing Check Valve manufacturer in India, producing high-durability Non-Return Valves (NRV) designed for low-pressure drop and maximum safety across critical industrial sectors.

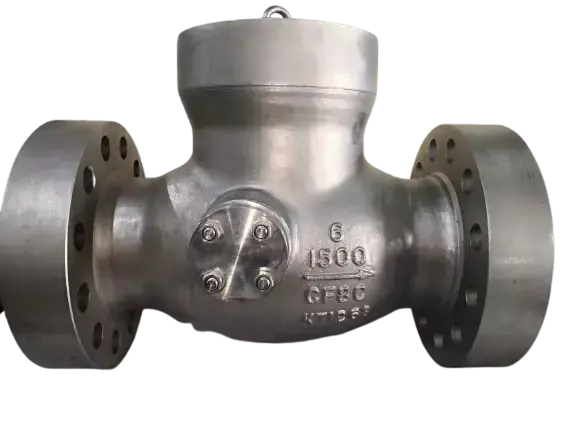

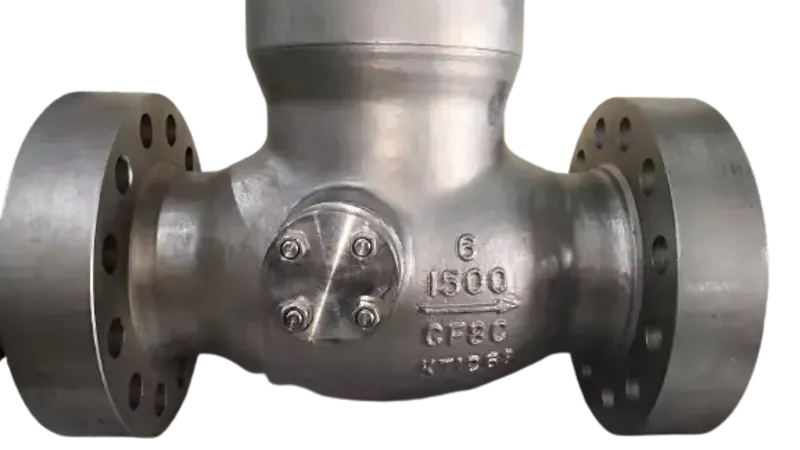

What is a Swing Check Valve?
A Swing Check Valve is an automatic, self-actuating valve that allows fluid to flow in one direction only. It features a disc (flap) that swings on a hinge or shaft. The disc moves away from the seat to allow forward flow and swings back onto the seat to block reverse flow when the system pressure drops or the flow direction changes.
Key Performance Benefits of FlowBiz NRVs:
- Spherical Contact Design: The link between the swing arm and the valve clack utilizes a spherical contact format. This allows the clack a degree of space within a 360-degree scope for "trace work compensation," ensuring a perfect seal every time.
- Minimal Pressure Drop: The full-port design offers minimal resistance to the medium, resulting in very low turbulence and shallow pressure loss compared to lift check valves.
- Automatic Protection: These valves are completely self-actuated, requiring no external power or manual intervention to protect your pipeline from hydraulic shock and backflow.
Technical Working Principle
The functionality of a FlowBiz Swing Check Valve is dictated by the Cracking Pressure—the minimum upstream pressure required to open the valve disc.
- Opening Phase: As the medium flows downstream, the fluid force overcomes the weight of the disc (Cracking Pressure), pushing the valve into the open position.
- Closing Phase: When the pump stops or pressure drops below the required threshold, gravity and the weight of the disc cause it to swing back toward the seat.
- Backflow Prevention: If the medium attempts to course back, the reverse flow pressure pushes the flap firmly against the valve center, creating a bubble-tight seal to prevent accidents and equipment damage.
Installation Guide: Horizontal vs. Vertical
To ensure the longevity of your FlowBiz Swing Check Valve, correct orientation is essential:
- Horizontal Installation: This is the most common and recommended position. The valve should be installed with the hinge pin in a horizontal position to allow gravity to seat the disc effectively.
- Vertical Installation: These valves can be installed vertically only if the flow is in an upward direction. In a vertical downward flow, gravity would keep the disc open, rendering the valve useless against backflow.
- Directional Flow: Always ensure the pipeline flow matches the arrow cast on the valve body.
Technical Specifications Table
Feature | Specification Details |
Design Standards | API 6D, BS 1868, ASME B16.34 |
Testing Standards | API 598 |
Size Range | 2" (DN50) to 36" (DN900) |
Pressure Ratings | Class 150, 300, 600, and PN10/PN16 |
Body Materials | WCB, LCB, CF8, CF8M, Ductile Iron |
End Connections | Flanged, Butt-Weld, Screwed |
Why FlowBiz Exports Leads the Industry?
FlowBiz Exports Pvt Ltd is not just a manufacturer; we are a global supplier of comprehensive flow control accessories. Our products are trusted across the petroleum, chemical, power, and mining industries.
Our Premium Product Range:
- Isolation Valves: Gate, Globe, and Swing Check (NRV) Valves.
- Quarter-Turn Valves: Ball Valves, Butterfly Valves, and Plug Valves.
- Specialized Engineering: Knife Edge Gate Valves, IBR Valves, and PFA/FEP Lined Valves.
- Maintenance & Monitoring: Y-type Strainers, Basket Strainers, and Sight Glass.
Protect your infrastructure from the dangers of reverse flow with the industry’s most reliable Non-Return Valves. Contact FlowBiz Exports Pvt Ltd today for expert application consulting and a free quote on our Swing Check Valve range.
[Click here to send an Inquiry to FlowBiz Exports Pvt Ltd for premium valve solutions.]
