Swing Check Non-Return Valve (NRV): The Ultimate Guide to Backflow Prevention

In any industrial piping network, the integrity of pumps and compressors depends on one thing: preventing the reversal of flow. The Swing Check Non-Return Valve (NRV) is an automatic safety component designed to allow media to flow in one direction while instantly blocking backflow.

As a premier manufacturer, FlowBiz Pvt Ltd produces high-performance Bolted Bonnet Swing Check Valves that prioritize durability, minimal pressure drop, and 100% working efficiency.

What is a Swing Check Valve?

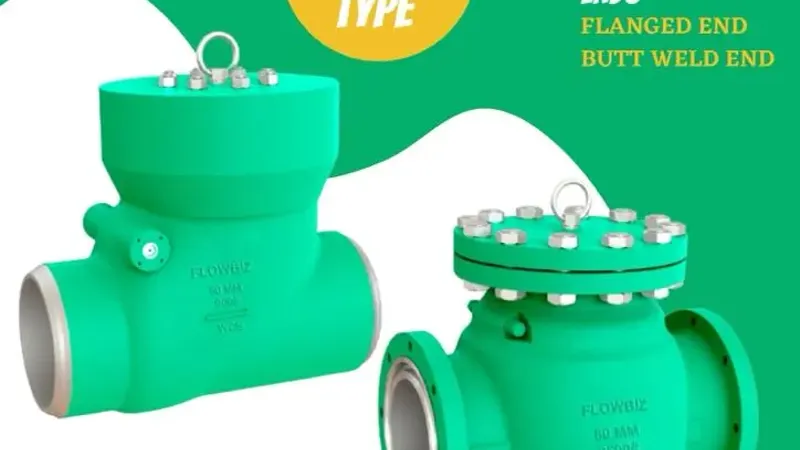

A Swing Check Valve features a movable disc (the "swing" element) that is mounted on a hinge or shaft.

  • The Mechanism: The valve is activated by the pressure of the flowing material. When fluid flows in the intended direction, the force pushes the disc open. If the flow slows down or reverses, gravity and back-pressure swing the disc back onto the seat, creating a tight seal.
  • Ideal Pairing: Swing check valves are the perfect companion for systems using Gate Valves. Because both designs provide a relatively unobstructed flow path, they work together to maintain a low-pressure drop across the system.

Technical Specifications & Engineering Standards

FlowBiz Exports adheres to the most stringent global standards to ensure our valves perform under extreme industrial stress.

  • Design & Manufacturing: Compliant with BS 1868.
  • Pressure/Temperature Ratings: As per ASME B16.34.
  • End-to-End Dimensions: In accordance with ASME B16.10.
  • Flange Dimensions: As per ASME B16.5.
  • Inspection & Testing: Every unit is tested to API 598 standards to guarantee zero-leakage performance.

Material Options for Diverse Industrial Needs

We provide a wide array of metallurgy to match the chemical and thermal requirements of your application:

Material Grade

Application Environment

ASTM A216 Gr. WCB

Standard High-Pressure Carbon Steel Service.

ASTM A217 Gr. WC6/WC9

High-Temperature Steam and Alloy Steel Service.

ASTM A352 Gr. LCB/LCC

Low-Temperature and Cryogenic Applications.

ASTM A351 Gr. CF8/CF8M

Corrosive Chemicals and Stainless Steel Service.

Why Choose FlowBiz Swing Check Valves?

FlowBiz is a leading "market player" in India, providing valves that are:

  1. Automatic: No external actuation is required; the valve responds instantly to flow changes.
  2. Maintenance Friendly: Our Bolted Bonnet design allows for easy internal inspection and part replacement without removing the valve from the line.
  3. Versatile Design: Available in Y-pattern or Straight Body designs to fit your specific piping layout.
  4. Durable Construction: Solid structure ensures an ample life span in harsh industrial sectors like Oil & Gas, Power Plants, and Water Treatment.

Are you looking to protect your pumps from backflow damage?
