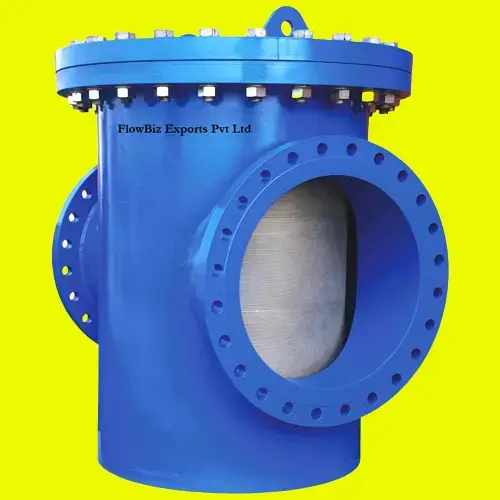

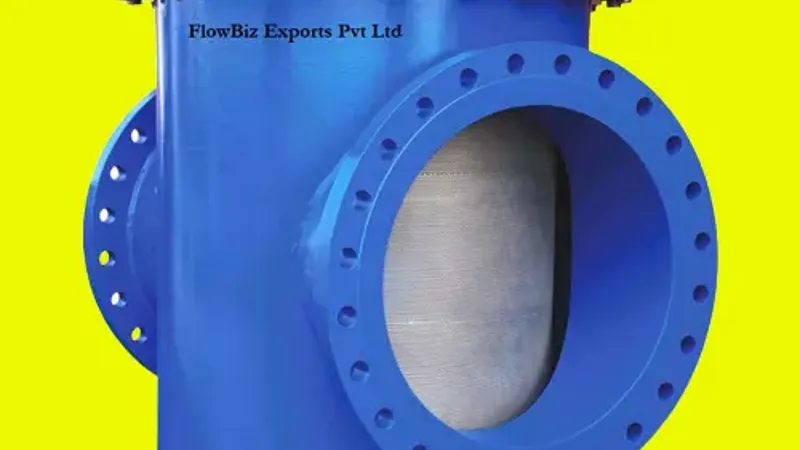

High-Capacity Basket Strainers: The Ultimate Defense for High-Flow Pipelines

In large-scale industrial pipelines, debris management is not just a preference—it is a necessity. FlowBiz Exports Pvt Ltd manufactures premium Basket Strainers (also known as Simplex Strainers) designed to capture large volumes of foreign particles and sediment, protecting downstream pumps, valves, and heat exchangers from catastrophic damage.

How Does a FlowBiz Basket Strainer Work?

A Basket Strainer is specifically engineered for flat (horizontal) channels where high flow rates and large solid-particulate capture are required.

1. Filtration: As fluid enters the strainer body, it is directed into a high-capacity mesh basket.
2. Collection: The basket traps dirt, scale, and foreign debris while allowing the clean fluid to pass through the mesh and continue downstream.
3. Maintenance: When the basket becomes full, the "top-loading" design allows for easy removal of the screen for cleaning or disposal of trapped solids without needing to disconnect the piping.

Key Features & Customizations

FlowBiz Basket Strainers are built for durability and ease of maintenance, featuring:

• Extensive Size Range: Available from 3/8" to 24" to accommodate everything from small pilot lines to massive municipal water mains.
• Pressure Versatility: Rated from ANSI 125# up to 600#, ensuring safety in high-pressure environments.
• Material Diversity: Manufactured in Cast Iron, Ductile Iron, Cast Steel (WCB), Stainless Steel (CF8/CF8M), Chrome-Moly, and Bronze.
• Specialized Covers: To ensure operator safety when handling heavy units, we offer Hinged Covers, Clamped Covers, and Davit Lifting Devices.
• Advanced Drainage: Optional "cone bottom" baskets with automatic blow-down allow for flushing solids through a drain port without stopping the flow process.

Industrial Applications

The FlowBiz Basket Strainer is the "gold standard" for industries where high debris loads are expected:

• Chemical & Petrochemical: Handling viscous fluids and protecting flow meters.
• Water Treatment: Filtering large sediment before high-pressure pump intakes.
• Food & Pharma: Utilizing stainless steel mesh for hygienic filtration.
• Marine & Cooling Systems: Filtering seawater or cooling tower water for heat exchangers.

India’s Trusted Manufacturer & Global Supplier

FlowBiz Exports is a top-tier Basket Strainer manufacturer in India, providing rapid delivery and technical support to industrial centers nationwide:

• Gujarat Operations: Serving Vapi, Valsad, Bharuch, Ankleshwar, Sanand, Gandhidham, Dahej, and Mundra.
• Maharashtra Presence: Dominating markets in Mumbai, Pune, Nashik, Nagpur, and Aurangabad.
• Global Reach: Exporting high-precision strainers to Dubai, Turkey, Africa, Thailand, and Vietnam.

The FlowBiz Flow Control Range:

• Valves: Gate, Globe, Check (NRV), Ball, Butterfly, and Diaphragm Valves.
• Specialty: PFA Lined Valves, Knife Edge Gate Valves, and Sight Glasses.
• Other Strainers: Y-Type and Conical (Temporary) Strainers.

Is your system protected against unexpected debris?

Don't let a small particle cause a big shutdown. Contact FlowBiz Exports Pvt Ltd today for expert sizing and selection of the perfect basket strainer for your high-flow application.
