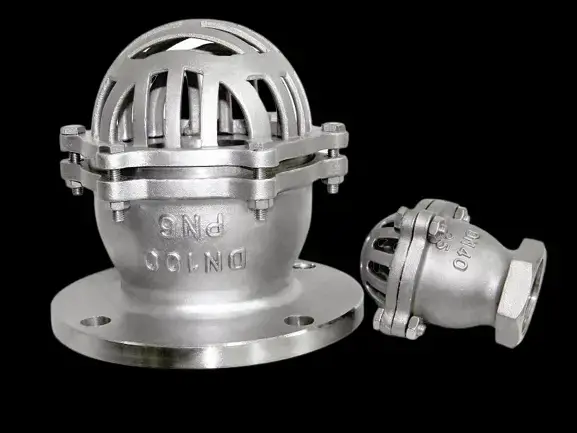

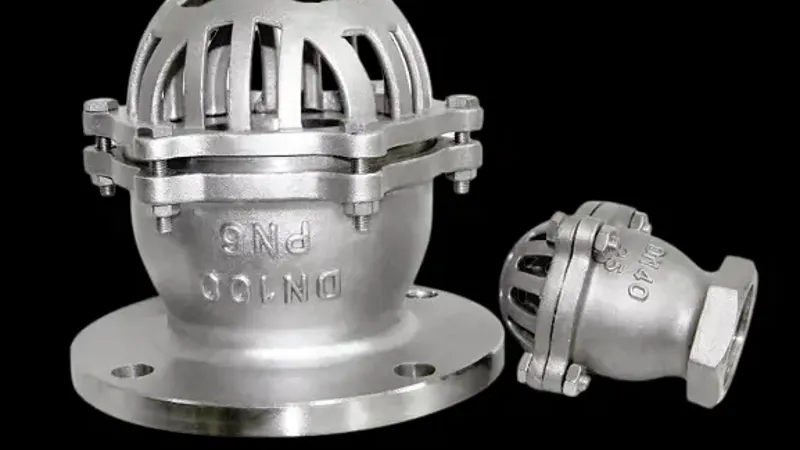

FlowBiz Foot Valves: Ensuring Pump Prime and Pipeline Integrity

A Foot Valve is a specialized type of Non-Return Valve (NRV) equipped with an integrated strainer. Installed at the lowest point (the "foot") of a suction pipe, it prevents the backflow of liquid when the pump is turned off, keeping the pump primed and ready for immediate operation.

How a Foot Valve Works

The Foot Valve operates on a unidirectional principle, allowing fluid to enter the system while mechanically blocking its exit.

1. Pump Start-up: As the pump begins to operate, suction pressure is created. This "pulling force" lifts the internal valve (often a ball or disc), allowing water to enter the pipeline.
2. Filtration: Before entering the valve body, the fluid passes through the integrated strainer, which filters out large solids, sediment, and debris that could damage the pump’s impeller.
3. Pump Shutdown: Once the pump is switched off, gravity and the weight of the water column push the valve shut. Because the valve creates a tight seal, the water remains trapped in the pipe, preventing the pump from running dry during the next start-up.

The Critical Role of the Integrated Strainer

The strainer is more than just an accessory; it is a vital protective shield. By sifting out waste at the very entry point of the system:

• Pump Protection: Prevents clogging of the pump’s internal seals and mechanical parts.
• Valve Longevity: Ensures the seating faces of the foot valve remain free of grit, allowing for a 100% leak-proof seal.

Salient Features & Construction

FlowBiz Foot Valves are engineered for high-performance suction applications in wells, ponds, irrigation systems, and industrial sumps.

• High Flow Area: The internal flow area is designed to be larger than the pipe size, significantly reducing head loss and improving pump energy efficiency.
• Superior Sealing: Features completely flat, precision-machined seating faces to ensure a "zero-leakage" positive shut-off.
• Sturdy Design: Built for long service life with a rigid structure that can withstand the constant pressure of a water column.
• Versatile Connections: Available with self-tapping male and female threads or flanged ends for easy integration into existing structures.

Global Reach and Industry Leadership

FlowBiz Exports is recognized as a premier manufacturer of Foot Valves and flow control accessories. Our products are trusted across the globe for their reliability and cost-effectiveness.

Serving Domestic and International Markets:

• India: Leading supplier to key sectors in Ahmedabad, Mumbai, Pune, and beyond.
• Middle East & Asia: Dubai, Turkey, Nepal, Bangladesh, Thailand, and Vietnam.
• Africa: Extensive distribution in Uganda, Nigeria, Kenya, South Africa, Morocco, Tanzania, Mozambique, Congo, and Rwanda.

Comprehensive Product Portfolio:

• Valves: Gate, Globe, Ball, Butterfly, and Knife Edge Gate Valves.
• Specialty: PFA/FEP Lined, IBR Certified, and Pharma Diaphragm Valves.
• Filtration: Y-Type, Basket, and Pot Type Strainers.

Is your pump losing its prime or suffering from frequent impeller damage?

Upgrade to the FlowBiz Foot Valve for a more reliable, self-cleaning suction system. Contact our technical team today for a consultation on material selection (Cast Iron, Stainless Steel, or Bronze) and customized sizing for your application.
