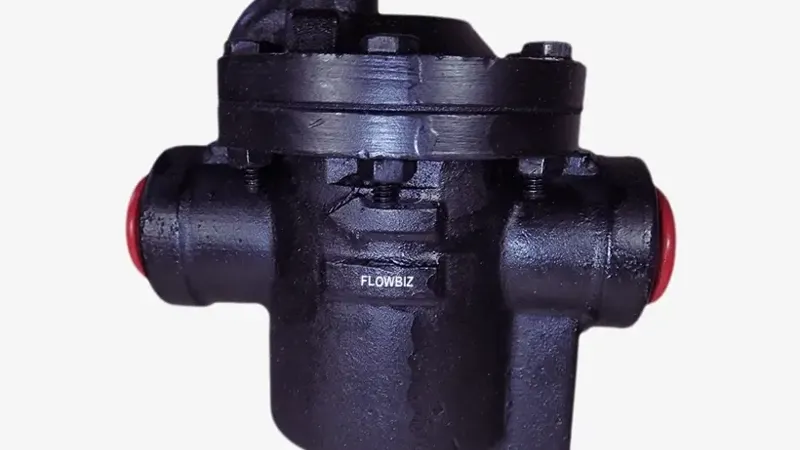

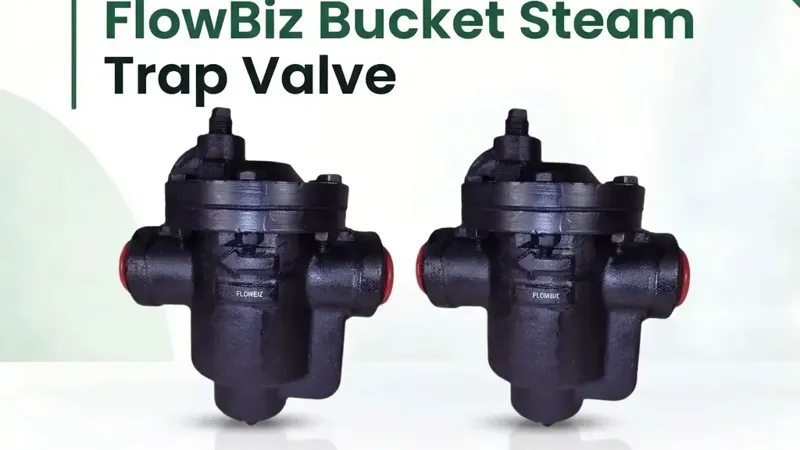

Inverted Bucket Steam Traps: The Energy-Efficient Choice for Steam Management
An Inverted Bucket Steam Trap is a mechanical trap that operates on the principle of buoyancy. FlowBiz Exports Pvt Ltd manufactures these traps to ensure that your steam lines remain free of condensate and air, protecting your equipment from water hammer and ensuring maximum heat transfer efficiency.
Why Choose FlowBiz Inverted Bucket Traps?
The inverted bucket design is renowned for its reliability and energy efficiency. Unlike complex thermostatic traps, the inverted bucket has only two moving parts: the valve lever assembly and the bucket itself. This simplicity eliminates sticking, binding, and frequent maintenance.
How Does an Inverted Bucket Steam Trap Work?
The operation follows a precise, cyclic buoyancy-based process:
- The Priming Phase: At start-up, the trap body must be manually primed with water to create a seal.
- The Steam/Air Entry: When steam or air enters the trap from the bottom, it collects under the inverted bucket. As the steam displaces the condensate, the bucket becomes buoyant and rises.
- The Closing Action: As the bucket rises, it pulls the lever, forcing the valve into its seat and sealing the trap to prevent live steam from escaping.
- The Discharge Phase: Air and non-condensable gases escape through a small "bleed hole" at the top of the bucket. As steam inside the bucket condenses due to radiation losses, the bucket loses buoyancy and sinks. The weight of the falling bucket pulls the valve off its seat, allowing condensate to be discharged into the return line.
Key Features & Advantages
- Water Hammer Resistance: The open-bucket design is exceptionally durable and can tolerate moderate water hammer that would destroy other trap types.
- Continuous Condensate Drainage: Effectively removes condensate at saturation temperature, ensuring no backup in the steam space.
- Dirt Tolerance: Deposits and dirt are kept in suspension by the cyclic action until they are flushed out with the condensate.
- High-Pressure Performance: Available in heavy-duty cast and forged constructions to handle high-pressure steam mains.
- Optional Thermal Vent: FlowBiz offers an optional thermal vent for faster air removal during cold start-ups.
Technical Specifications at a Glance
Feature | Details |
Material Options | Cast Iron, Cast Steel (WCB), Stainless Steel |
End Connections | Screwed (NPT/BSP), Flanged, Socket Weld |
Pressure Ratings | Suitable for low to high-pressure steam applications |
Maintenance | Inline repairable design with minimal moving parts |
FlowBiz: India’s Leading Steam Trap Manufacturer
As a top-tier Bucket Steam Trap manufacturer in India, FlowBiz Exports provides rapid logistics and technical support across all major industrial corridors:
- Gujarat Hubs: Vapi, Valsad, Bharuch, Ankleshwar, Sanand, Gandhidham, Mundra, and Dahej.
- Maharashtra Hubs: Mumbai, Pune, Nashik, Nagpur, Aurangabad, and Ambernath.
- Global Exports: Dubai, Turkey, Africa, Bangladesh, Thailand, and Vietnam.
Our Extended Product Portfolio:
- Valves: Gate, Globe, Ball, Butterfly, and Flush Bottom Ball Valves.
- Safety: Non-Return Valves (NRV) and Dual Plate Check Valves.
- Filtration: Y-Type, Basket, and Pot Type Strainers.
Is your steam system losing live steam or suffering from water hammer?
Upgrade to FlowBiz Inverted Bucket Steam Traps for a reliable, "set-and-forget" solution. Contact our technical team today for a sizing consultation and a customized quote for your facility.
