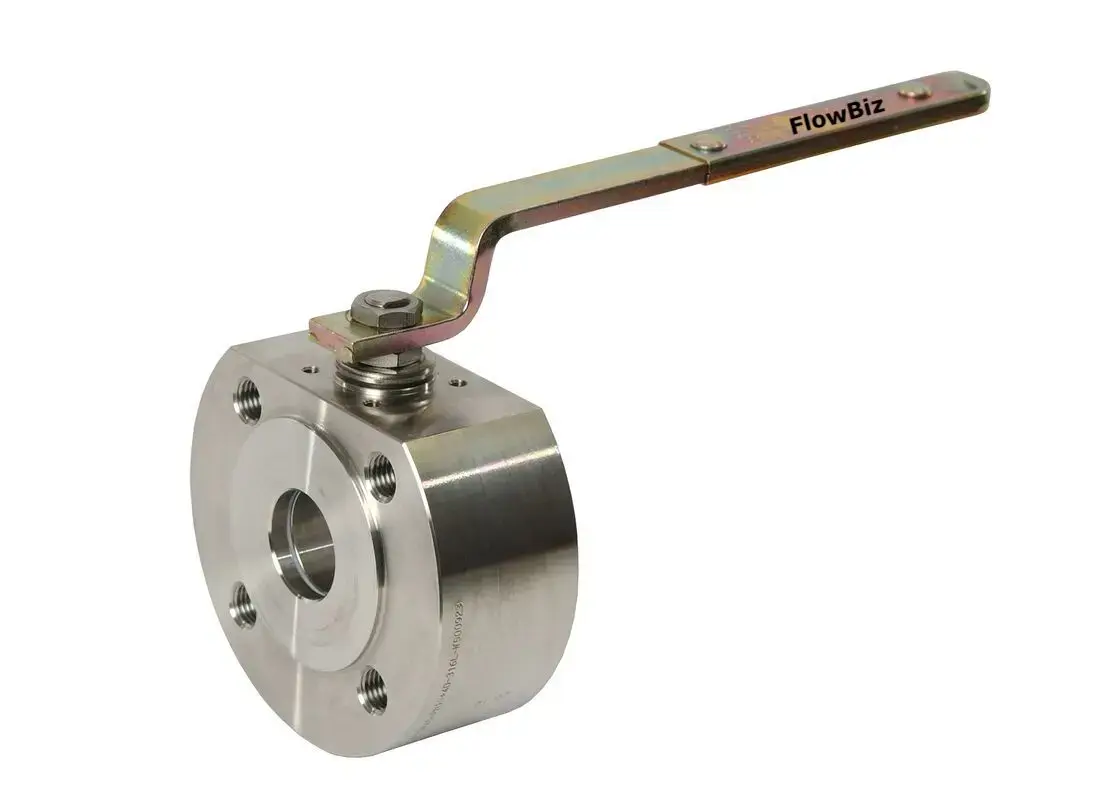

Wafer Type Ball Valves: Compact Precision for Limited Spaces
A Wafer Type Ball Valve is a flangeless, short-profile valve designed to be "sandwiched" between pipeline flanges using long bolts. While traditional flanged valves can be bulky and heavy, the FlowBiz Wafer design provides a sleek, high-strength alternative that is ideal for integrated systems.
Why Choose FlowBiz Wafer Ball Valves?
When your pipeline layout is congested—specifically in process skids, transport vessels, and reactors—every millimeter counts. Our wafer valves provide the full flow capacity of a standard ball valve but with a fraction of the face-to-face length.
Key Advantages & Technical Features
FlowBiz has refined the wafer design to offer several operational benefits:
- Ultra-Compact Profile: Drastically reduces the "footprint" of the valve, making it the perfect choice for modular skid construction.
- Lightweight & Economical: Because the valve uses less body material than a flanged version, it is lighter and more cost-effective, reducing the overall weight load on the piping system.
- Rapid Operation: A simple quarter-turn ($90^{\circ}$ rotation) allows the valve to move from a fully open to a fully closed position instantly.
- Maintenance Friendly: The "sandwich" installation makes it incredibly easy to remove the valve for seal replacement or inspection without disturbing the fixed piping flanges.
- Universal Fitting: Designed to fit between standard ANSI, DIN, or JIS flanges using common stud bolts.
Technical Specifications
Feature | Details |
Design Style | Wafer (Flangeless) Short Pattern |
Material Options | WCB, SS304, SS316, SS316L, and Duplex Steel |
Pressure Ratings | PN16, PN40, ANSI 150#, 300# |
Seating Material | Reinforced PTFE (Standard) or Metal-to-Metal (High Temp) |
Actuation | Manual Hand Lever, Gear, or Pneumatic Actuator |
Core Industrial Applications
FlowBiz Wafer Ball Valves are the primary choice for sectors where efficiency and space-saving are required:
- Process Skids: Chemical dosing, filtration skids, and fuel handling.
- Transport Vessels: Marine and tank truck discharge systems.
- Industrial Reactors: Base drainage and side-port isolation.
- HVAC & Water Treatment: Compact liquid flow management.
FlowBiz Exports: Your Global Flow Control Partner
As a leading Wafer Ball Valve manufacturer in India, FlowBiz Exports delivers high-quality "Make in India" engineering to the most critical global sectors.
Our Comprehensive Portfolio:
- Valves: Gate, Globe, Check (NRV), Butterfly, and Knife Edge Gate Valves.
- Lined Solutions: PFA/FEP Lined Valves for corrosive media.
- Filtration: Y-Type, Basket, and Pot Type Strainers.
Is your pipeline layout too tight for a standard flanged valve?
Switch to the FlowBiz Wafer Type Ball Valve to maximize your space and minimize your costs. Contact our technical team today for sizing, material compatibility, and a customized quote for your project.
