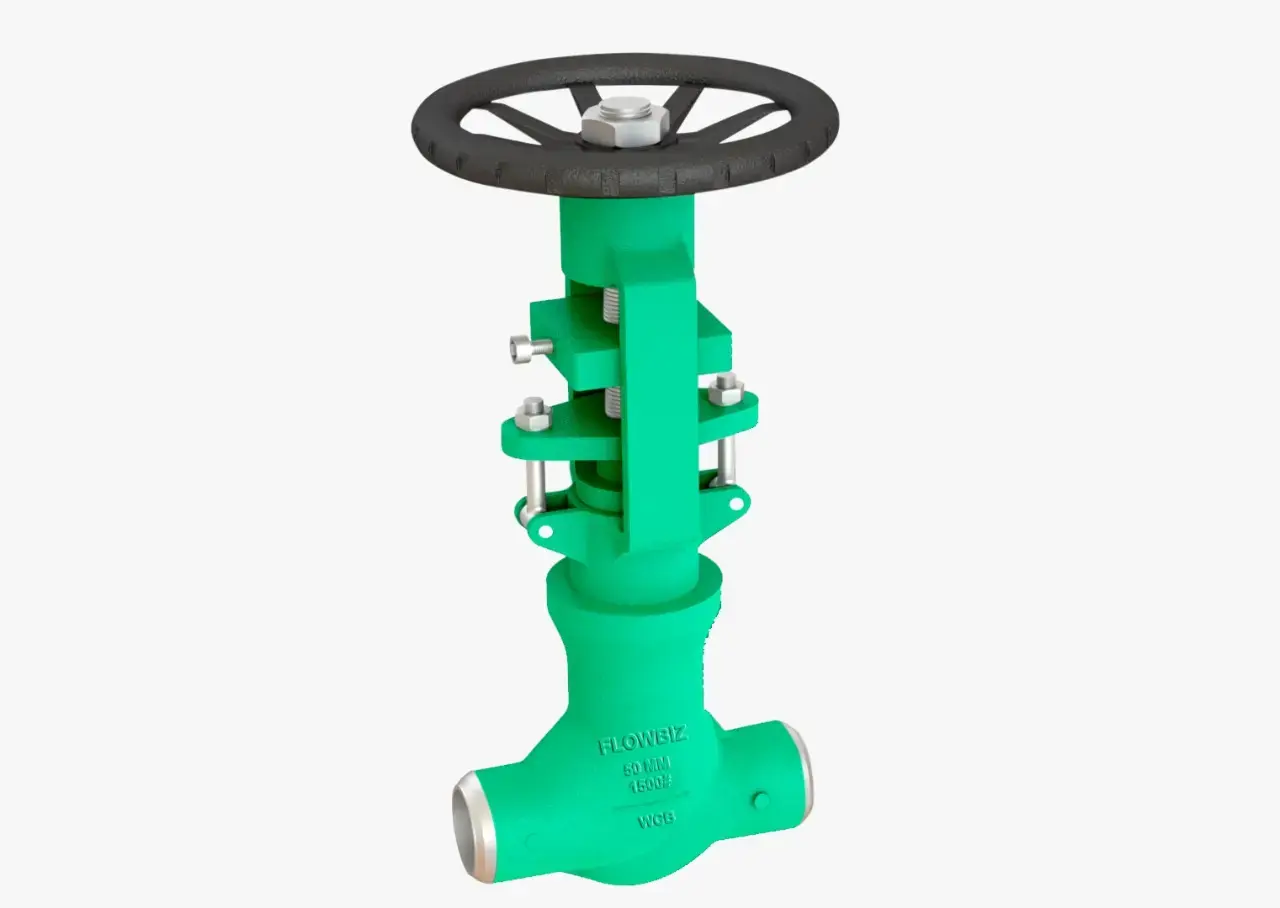

Pressure Seal Globe Valves: High-Pressure Mastery & Precision Throttling
A Pressure Seal Globe Valve is the ultimate solution for high-temperature and high-pressure service (typically Class 900# and above). Unlike traditional valves that rely on external bolting to squeeze a gasket, the Pressure Seal design utilizes the internal system pressure to force the bonnet against a specialized gasket, creating a leak-proof seal that actually grows stronger as the pressure increases.
The FlowBiz Pressure Seal Advantage
FlowBiz valves are designed for "Design Excellence," ensuring safety and longevity in the most demanding "S-shaped" flow configurations.
- Self-Tightening Mechanism: The internal pressure supports the sealing of the valve body and bonnet joint, eliminating the risk of bolt-stretch leaks common in bolted bonnet valves.
- Weight & Space Efficiency: By removing heavy flanges and large bolting, FlowBiz Pressure Seal valves are significantly more compact and lighter, making them easier to install in complex power plant piping.
- Precision Throttling: With the valve seat parallel to the flow line, these valves are highly efficient at regulating flow with minimal disc and seat erosion.
- Reduced Maintenance: The simplified structure and reliable joint sealing lead to lower maintenance costs, even in oxidizing environments or extreme thermal cycling.
Technical Specifications
Feature | Details |
Pressure Class | Class 900#, 1500#, and 2500# |
Material Grades | WCB, WC6, WC9, C12A, CF8M (High-strength alloys) |
Design Standard | ASME B16.34 / API 623 |
End Connections | Butt-Weld (BW) standard for high-integrity joints |
Seating | Stellite® Hard-faced for wear and erosion resistance |
Core Industrial Applications
FlowBiz Pressure Seal Globe Valves are the definitive choice for critical energy sectors:
- Power Generation: Fossil, Coal, Thermal, Gas, and Nuclear power stations.
- Petrochemical: High-heat oil and gas processing and hydrocrackers.
- Nuclear Service: Steam developing groups requiring rigid manufacturing standards.
- Chemical Plants: Handling high-pressure fluids in oxidizing environments.
Serving India’s Industrial Heartland and Global Projects
As a leading Pressure Seal Globe Valve manufacturer in India, FlowBiz Exports supports critical infrastructure across:
- Gujarat Operations: Vapi, Surat, Ankleshwar, Dahej, Gandhidham, and Mundra.
- Maharashtra Presence: Mumbai, Pune, Nashik, Nagpur, and Ambernath.
- Global Reach: Trusted by international power stations in Dubai, Turkey, South Africa, Vietnam, and Thailand.
Is your bolted bonnet joint failing under high-temperature thermal cycling?
Upgrade to the FlowBiz Pressure Seal Globe Valve for a more compact, rigid, and maintenance-free solution. Contact our technical team today to discuss your pressure class, material requirements, and specialized power plant specifications.
