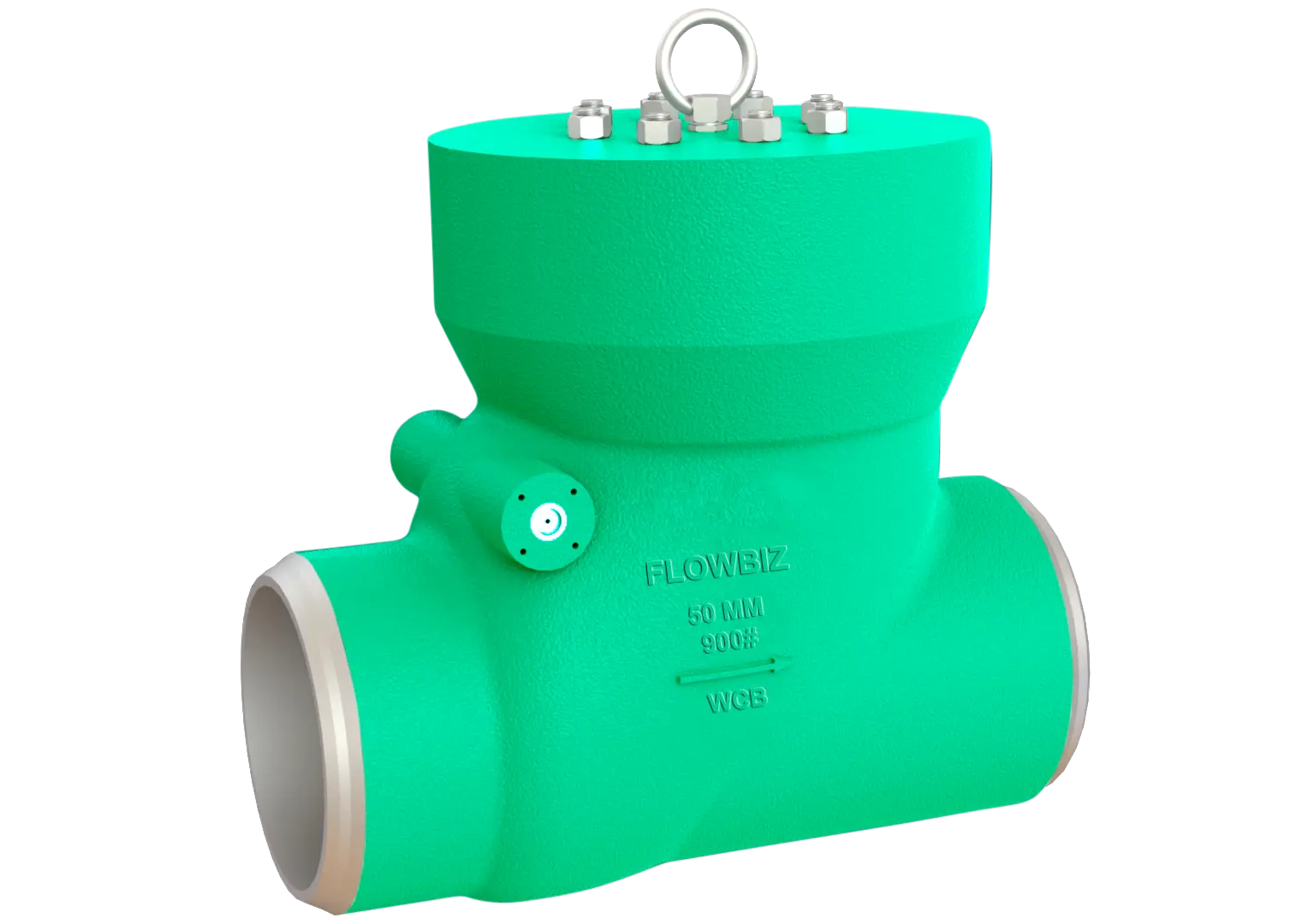

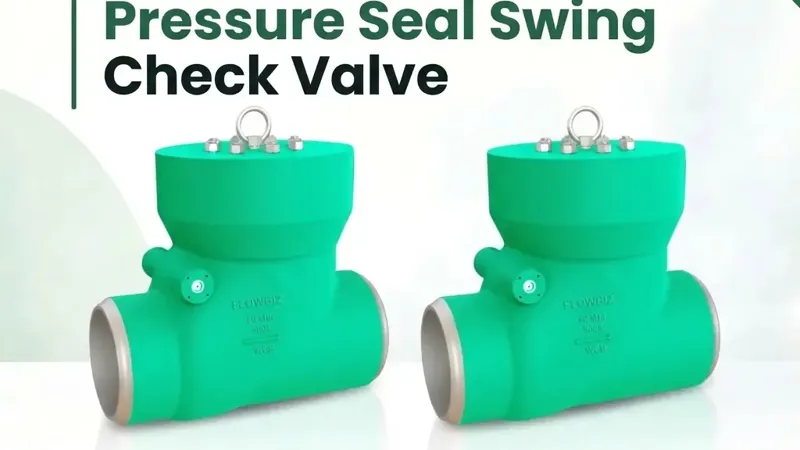

Pressure Seal Swing Check Valves: High-Pressure Backflow Prevention

A Pressure Seal Swing Check Valve utilizes a "swinging" flapper (disc) that moves freely on a hinge. When forward flow reaches the "cracking pressure," it pushes the disc open. When flow stops or reverses, gravity and the weight of the water column swing the disc back onto the seat to prevent backflow.

The FlowBiz Pressure Seal Advantage

In high-pressure services (typically Class 900# and above), traditional bolted bonnets can struggle with thermal expansion. Our Pressure Seal design solves this:

• Self-Tightening Joint: The system’s internal pressure acts against the bonnet, compressing the pressure seal gasket. The higher the pressure, the tighter the seal becomes.
• Weight Efficiency: By eliminating heavy external flanges and large bolts, these valves are more compact and significantly lighter than bolted-bonnet alternatives.
• Streamlined Maintenance: The simplified structure allows for easier access to internal components during scheduled plant shutdowns.

Technical Specifications & Installation

FlowBiz Check Valves are engineered for reliability in "unidirectional" flow environments.

Installation Guidelines:

• Horizontal Flow: This is the standard and recommended orientation.
• Vertical Flow: Can be installed in vertical lines only if the flow is upwards. Gravity must be able to assist the disc in closing during flow cessation.
• Velocity Needs: Best suited for medium-velocity applications where "slamming" is less likely to occur.

Core Industrial Applications

FlowBiz Pressure Seal Swing Check Valves are essential for:

• Thermal & Nuclear Power: Nuclear steam generating units and boiler feedwater lines.
• Oil & Gas Refining: Catalytic reformers and hydrocrackers.
• Chemical Plants: Handling high-temperature fluids and high-pressure steam.
• Industrial Utilities: Protecting pumps and compressors from back-pressure damage.

Why Choose FlowBiz Exports?

As a premier Pressure Seal Check Valve manufacturer in India, FlowBiz Exports combines "Make in India" precision with global quality standards.

• India: Serving critical sectors in Mumbai, Ahmedabad, Pune, and Chennai.
• International: Trusted by engineers in Dubai, Turkey, Africa, Vietnam, and Thailand.

Is your high-pressure system suffering from bonnet leaks during thermal cycling?

Upgrade to the FlowBiz Pressure Seal Swing Check Valve for a self-tightening, maintenance-free solution. Contact our technical team today to discuss your pressure ratings, material compatibility, and project-specific requirements.
