Glandless Piston Valves: Zero-Leak Isolation for Steam and Process Lines

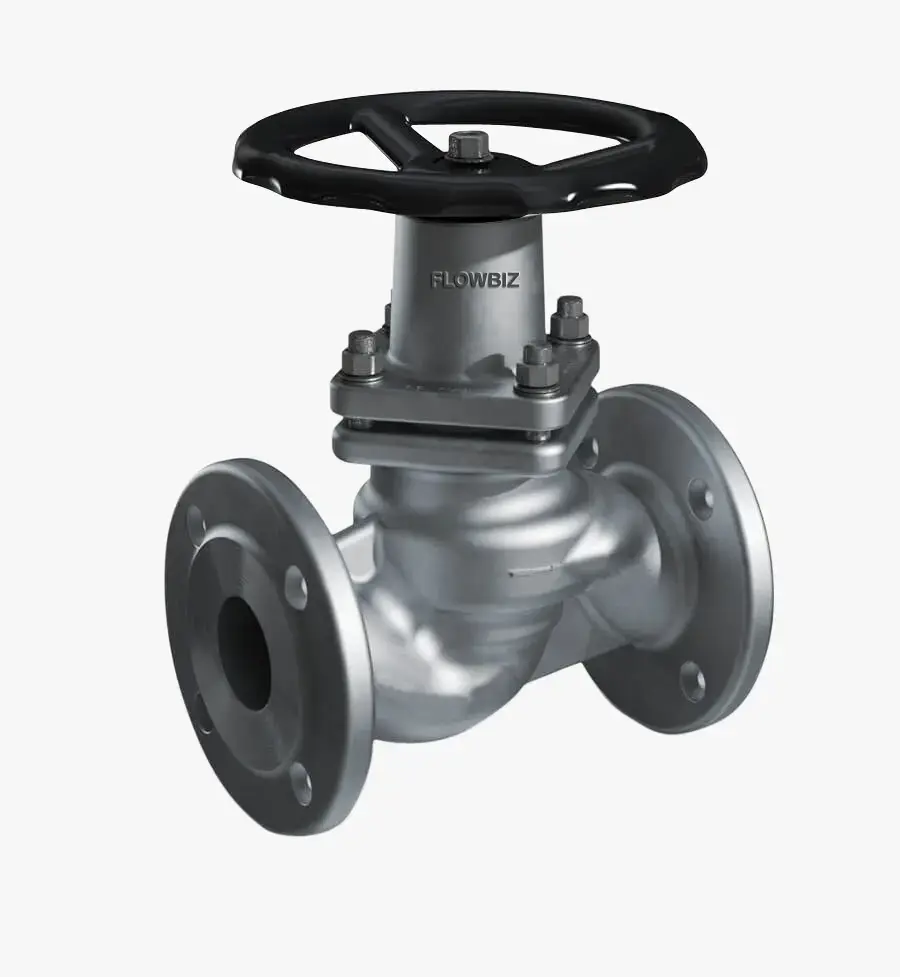

The FlowBiz Glandless Piston Valve is a linear-action valve engineered to eliminate the most common point of failure in industrial valves: the gland packing. By utilizing a stainless-steel piston that travels through reinforced sealing rings, this valve ensures a bubble-tight seal to both the process line and the atmosphere.
How the Glandless Design Works
The traditional seat and gland are replaced by a precision-engineered internal system:
- The Piston: A high-grade stainless steel piston travels vertically between two sealing rings.
- Sealing Rings: Comprised of upper and lower rings separated by a Lantern Bushing.
- The Seal: In the closed position, the lower ring provides a tight shutoff against the process media. In the open position, the upper ring prevents any leakage through the valve stem to the atmosphere.
Silent Features & Benefits
FlowBiz Piston Valves are designed for "set-and-forget" reliability in high-cycle environments.
- ANSI Class VI Leakage: Large practical sealing areas ensure the highest level of shutoff integrity.
- Glandless Construction: Zero leakage to the atmosphere, making it ideal for hazardous or expensive media like thermic fluids.
- Thermal Compensation: Equipped with Belleville Washers and reinforced rings to compensate for thermal expansion, preventing the valve from "seizing" during temperature fluctuations.
- Online Serviceable: Sealing rings can be replaced while the valve body remains in the pipeline, drastically reducing downtime.
- Cost-Effective: While the initial investment is similar to high-quality globe valves, the long service life and zero-leak performance result in a much lower Total Cost of Ownership.
Technical Range & Specifications
Feature | Description |
Construction | Cast Steel (WCB) or Forged Steel (A105) |
End Connections | Flanged, Socket-Weld, and Screwed Ends |
Function | Ideal for both On/Off and Throttling applications |
Media Compatibility | Steam, Condensate, Thermic Fluids, Gases, and Vapor |
Typical Applications
FlowBiz Piston Valves are the preferred choice for critical steam management:
- Steam Headers: Main steam isolation valves for reliable distribution.
- Thermic Fluid Systems: Supply, return, and balancing line isolation.
- Steam Trap Stations: Isolation for trap maintenance without system shutdown.
- Pressure Reducing Stations (PRDS): Ideal for de-superheating and reduction lines.
- Manifolds: Main condensate and steam manifold isolation.
FlowBiz Exports: Your Partner in Valve Excellence
As a leading Glandless Piston Valve manufacturer in India, FlowBiz Exports supports the country’s most demanding industrial sectors with a comprehensive flow control portfolio:
- Isolation: Gate, Globe, Ball, and Butterfly Valves.
- Protection: Swing Check (NRV), Knife Edge Gate, and PFA-Lined Valves.
- Filtration: Y-Type, Basket, and Conical Strainers.
Is your plant losing money through steam leaks and constant gland maintenance?
Switch to the FlowBiz Glandless Piston Valve for a maintenance-free, energy-efficient future. Contact our Mumbai technical team today for a quote or a consultation on your specific steam and thermal fluid requirements.
